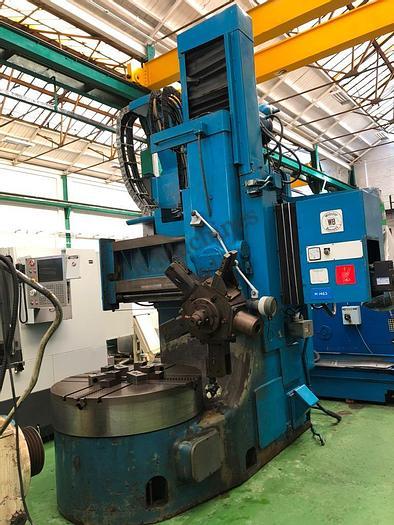

1994 WEBSTER & BENNETT 48” ERNC CNC ELEVATING RAIL

WEBSTER & BENNETT 48” ERNC CNC Elevating Rail Vertical Boring Machine with NUM 1060 T2 CNC Control is a precision tool designed for large-scale machining tasks. Its computer numerical control (CNC) system enables accurate and automated operations. The elevating rail enhances versatility, allowing efficient vertical boring of diverse materials with a 48-inch diameter capacity.
Year 1976 (RETROFITTED 1994)

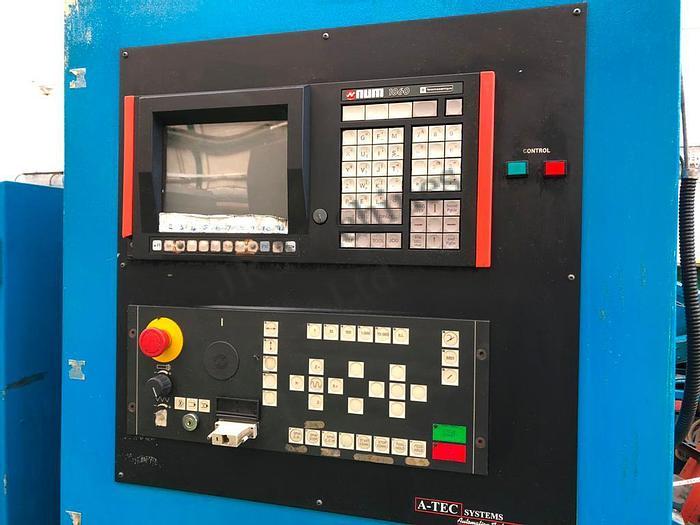

NUM 1060 T2 CNC Control ,

Chuck dia. 1219 mm ,

Maximum swing 1499 mm ,

Chuck speeds 6.3 – 248 rpm ,

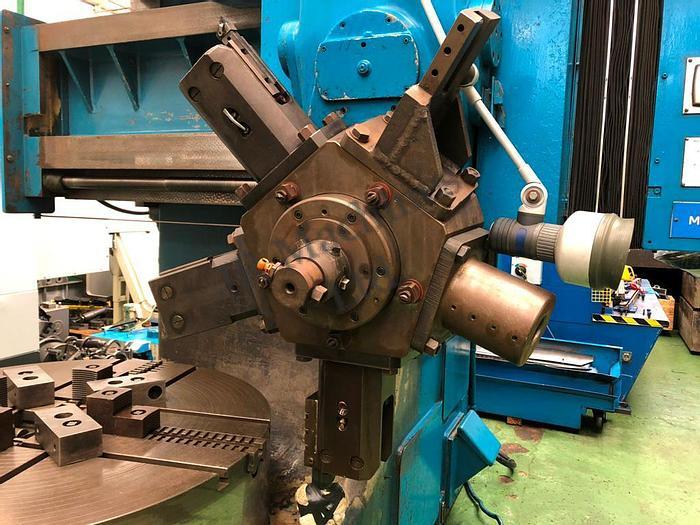

Turret type – Pentagonal Drum Type ,

X axis 995 mm ,

Z axis 965 mm ,

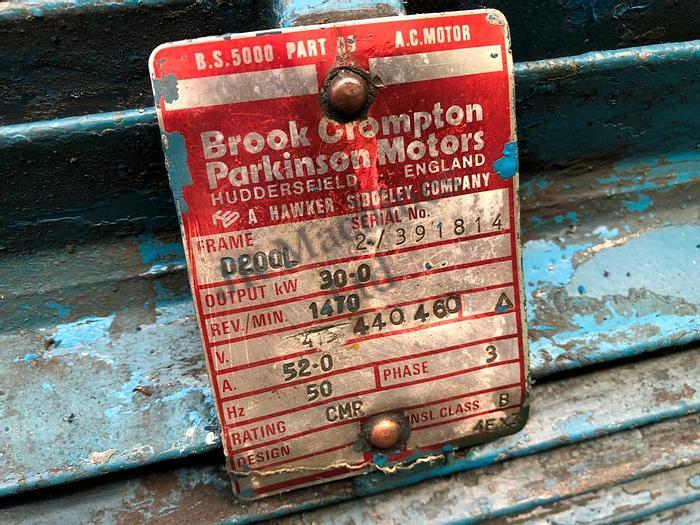

Main motor 30 kW.
