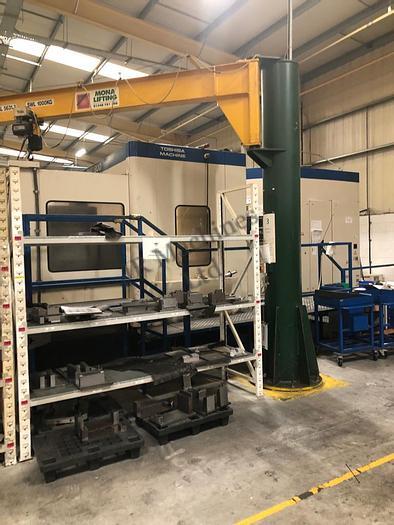

The 1998 Toshiba BMC 800 4 Axis HMC (Horizontal Machining Center) is a robust machining tool equipped with advanced features for precise milling operations. Manufactured in 1998, it offers efficiency and accuracy in machining various workpieces. Ideal for industries requiring high-quality machining, ensuring productivity and superior results with ease.

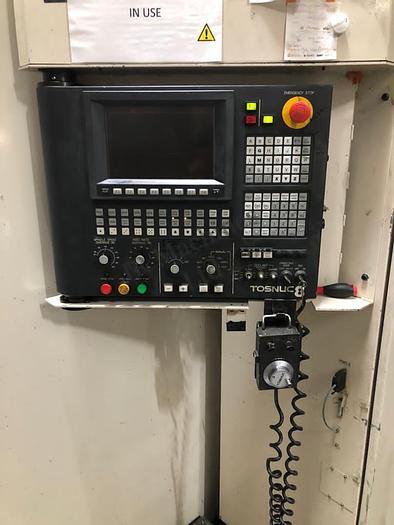

• Control: Tosnuc 888

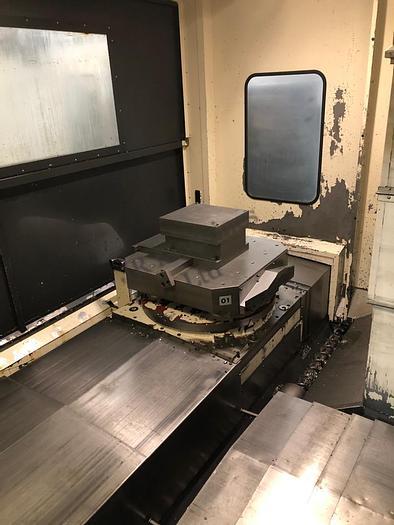

• Pallet size: 2 x 800mm x 800mm, loading capacity 2000 kgs
• Pallet table indexing: 0.001 cont
• X axis travel: 1600mm
• Y axis travel: 1250mm
• Z axis travel: 1200mm
• B axis: 1 degree
• Speeds: 10,000 rpm

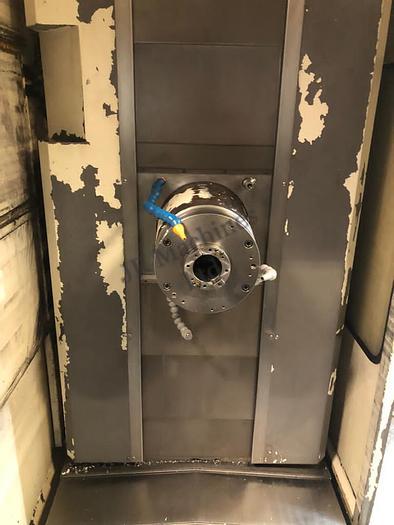

• Spindle taper: BT 50

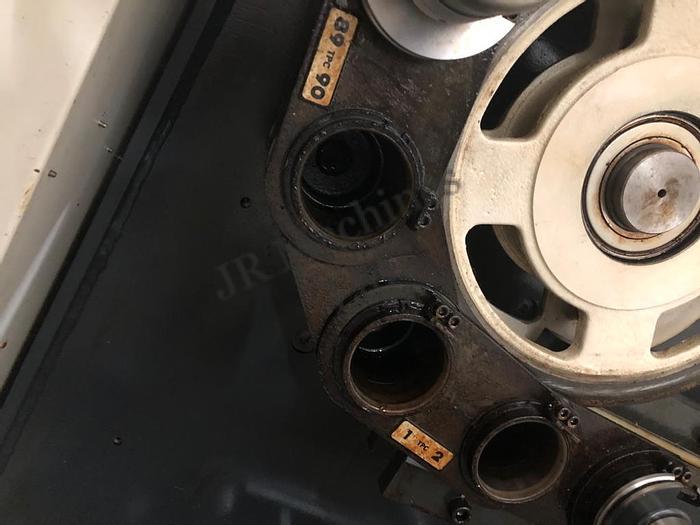

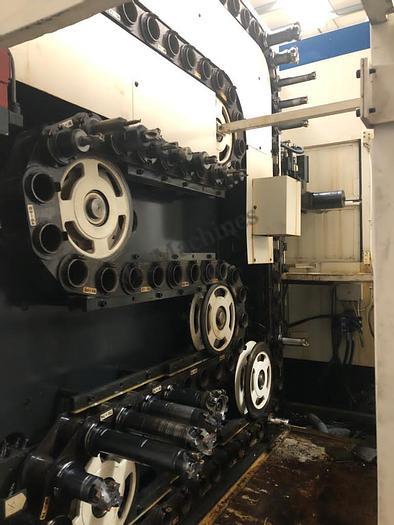

• Automatic tool changer: 90 ATC
• Tool length: 550mm
• Tool diameter: All pots full 125mm, Empty both sides 250mm
• Tool weight: 25kg
• Input: 30 kW main motor
• Nett weight approx.: 24,000 Kgs. / 23.6 Tons.
