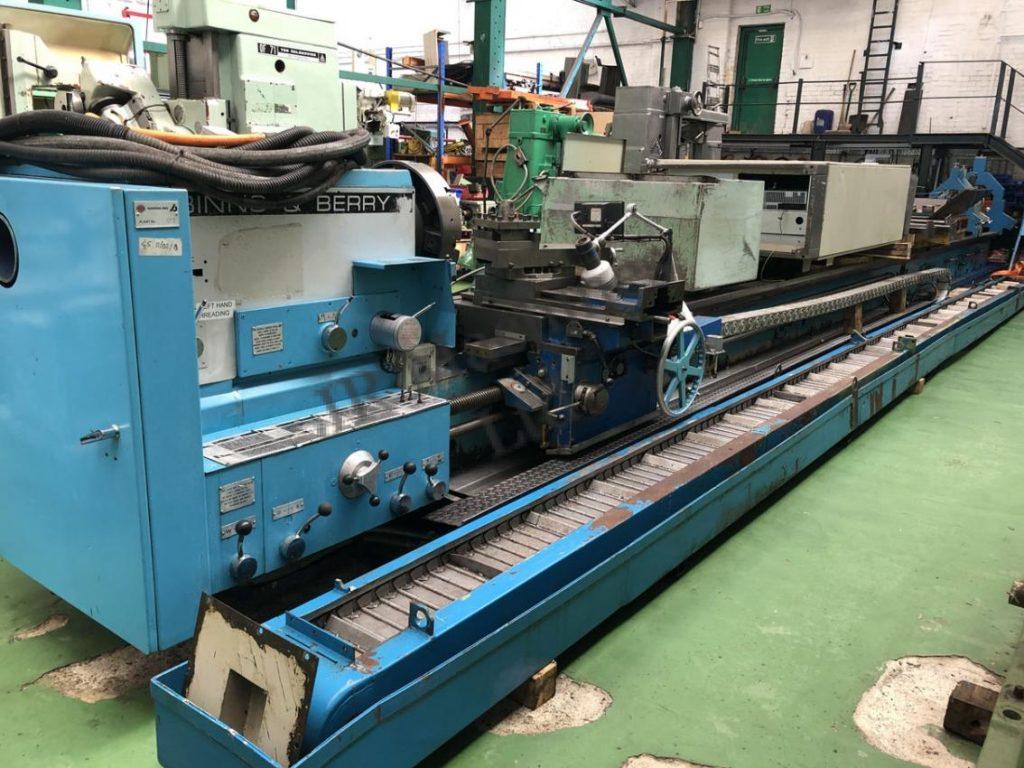

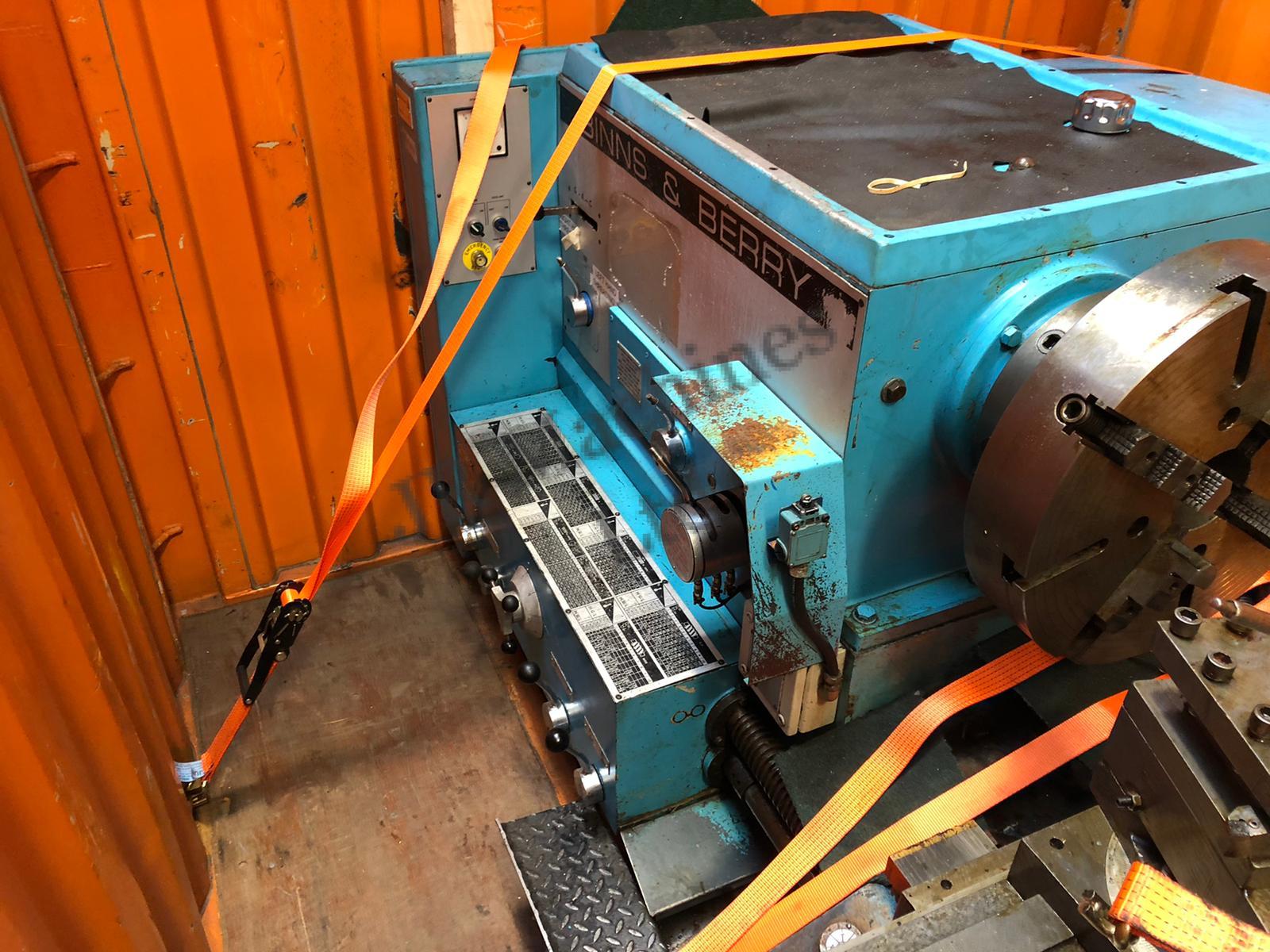

2002 BINNS & BERRY Trident L707 x 11,000mm Between Centres Straight Bed Centre Lathe with Newall Topaz DRO

Contact us for price
Navi Mumbai, INDIA

or

Call : +44 (0) 1212748593

Description

The 2002 Binns & Berry Trident L707 x 11,000mm Lathe is a large, straight bed machine for precise turning of long metal parts. With a capacity of 11,000mm between centres and a Newall Topaz DRO for accurate measurements, it ensures high precision and efficiency for heavy-duty machining tasks.

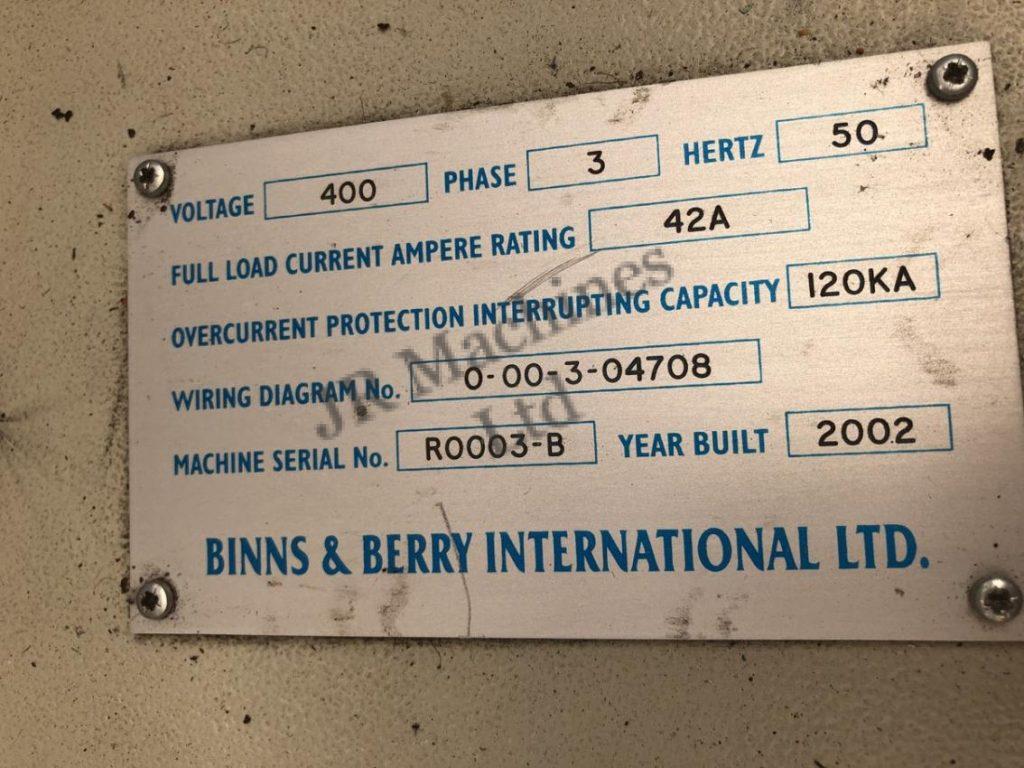

Rebuilt 2002

Swing over bed 700mm.

Swing over saddle 550mm.

Distance between centres 11,000mm.

Spindle Speeds (3 ranges) 4-60 rpm, 60-280 rpm 280 – 1250 rpm.

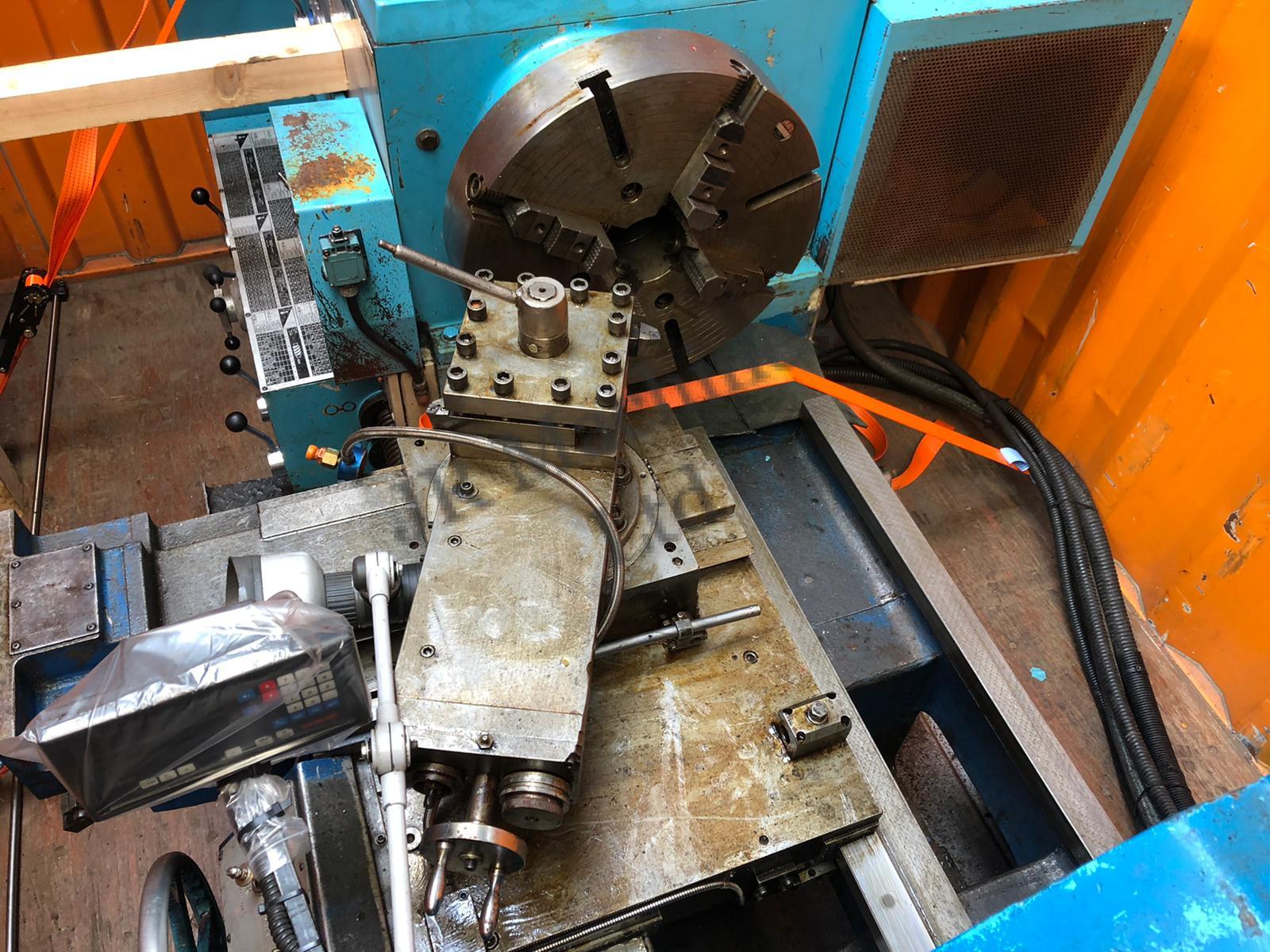

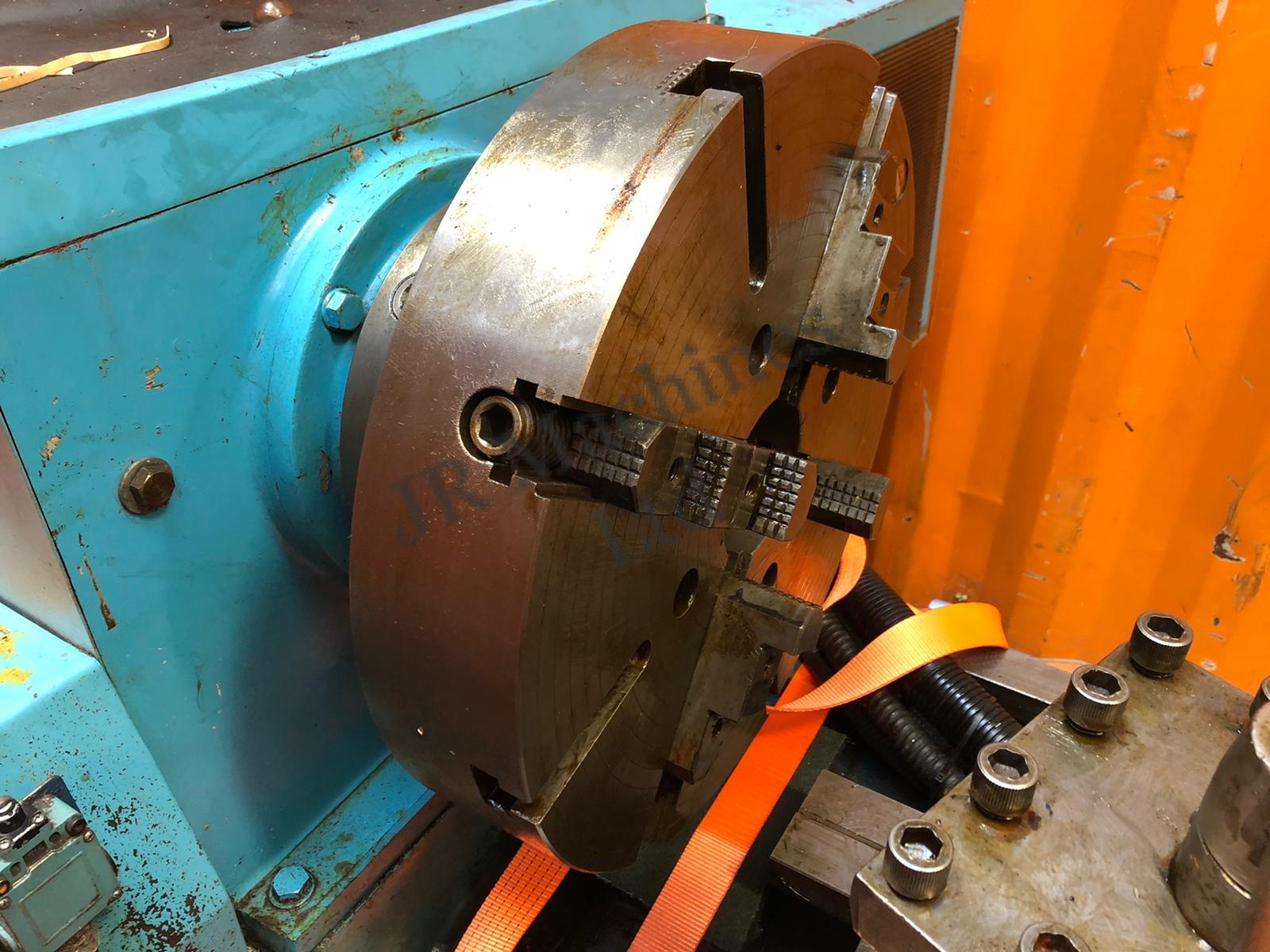

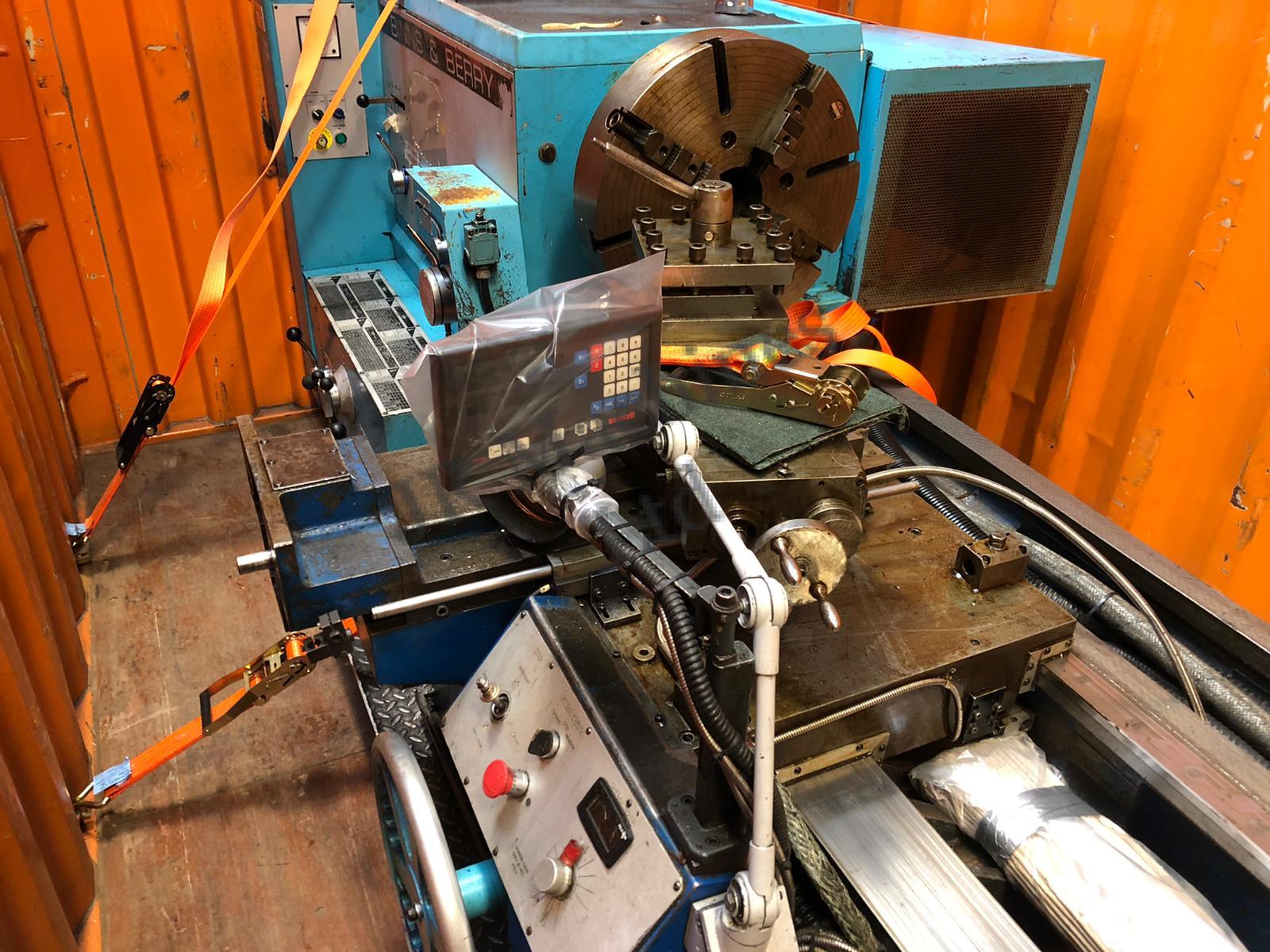

Fitted with Pratt 20” dia 4 jaw chuck (Camlock).

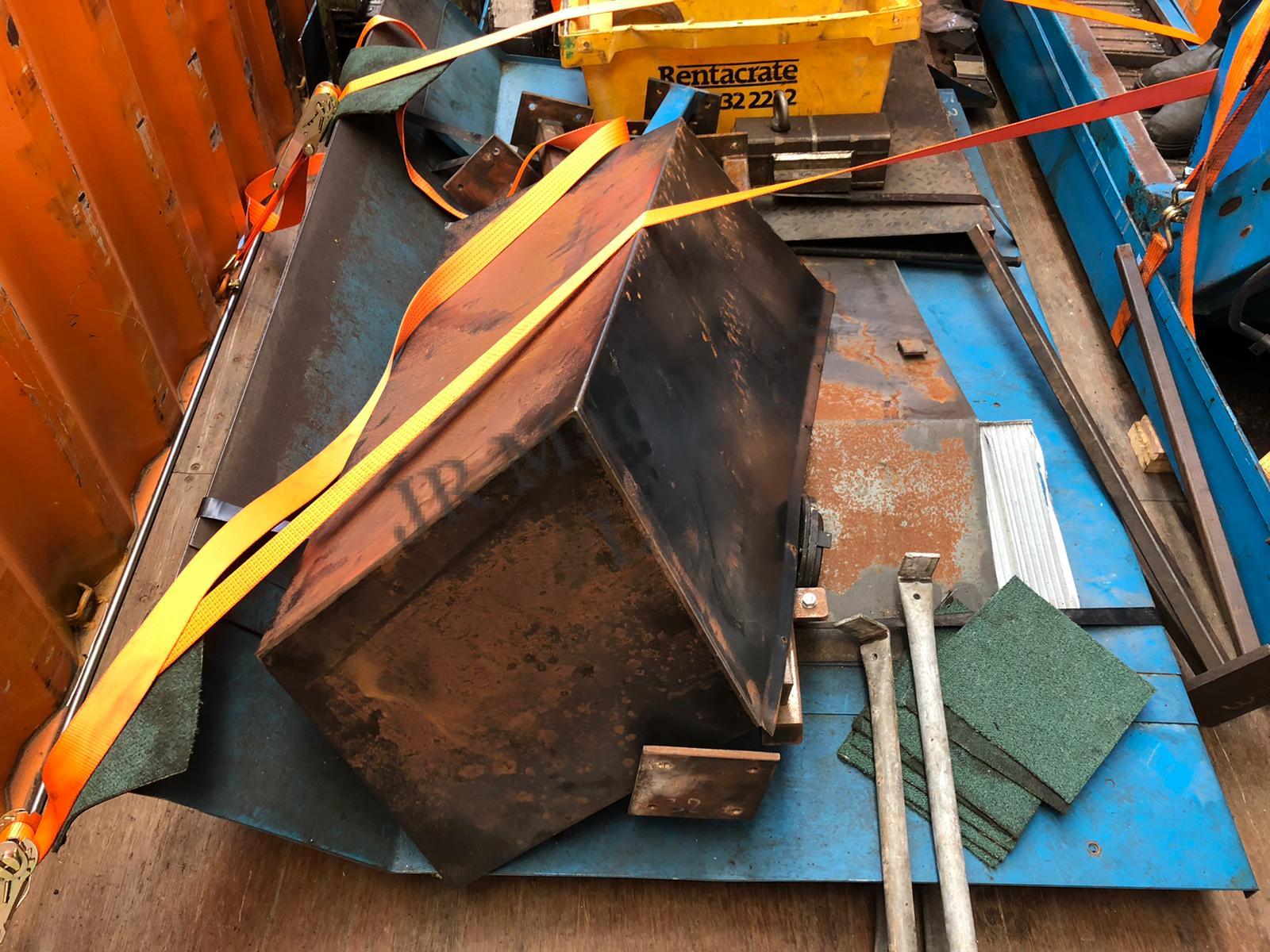

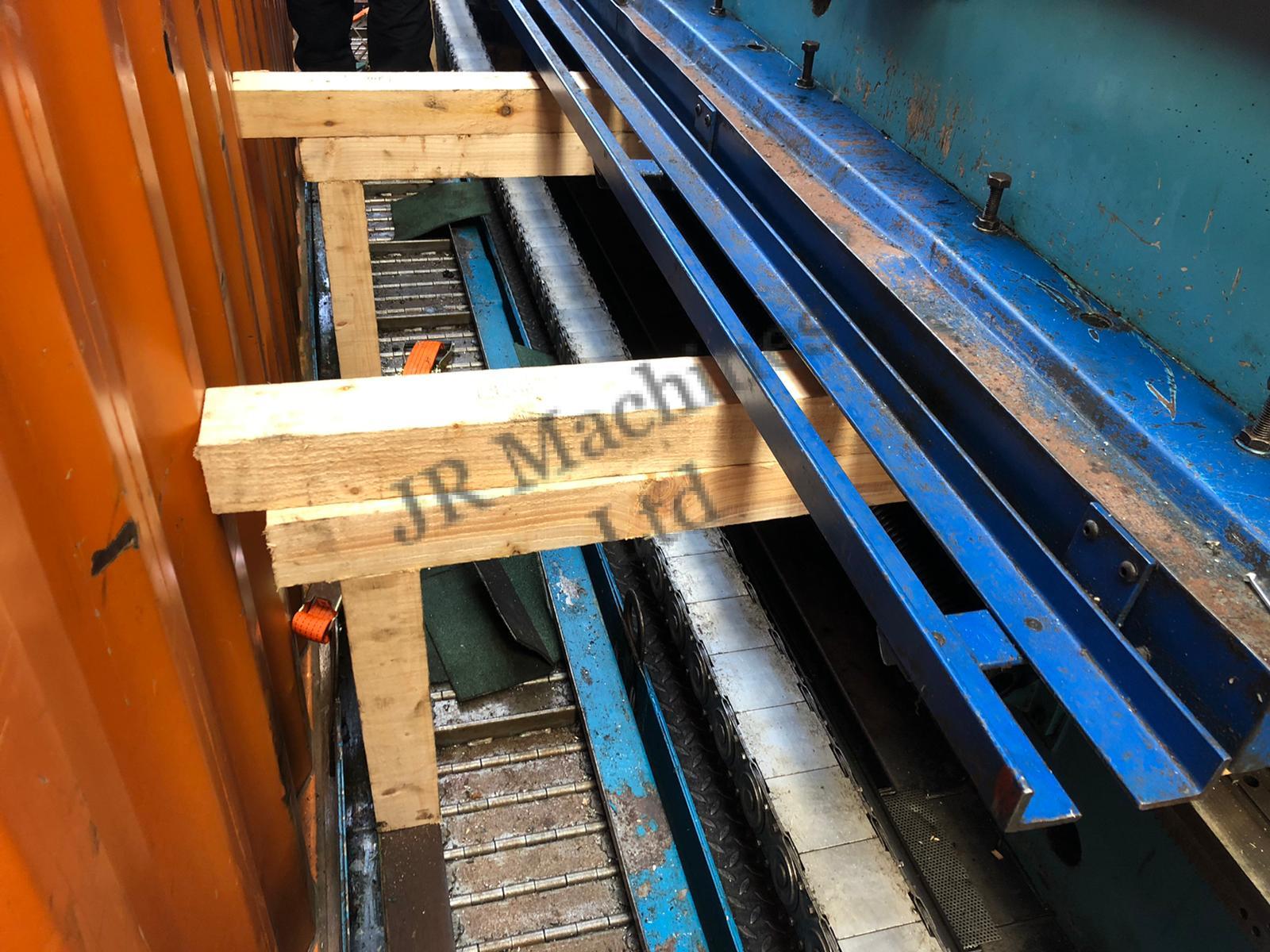

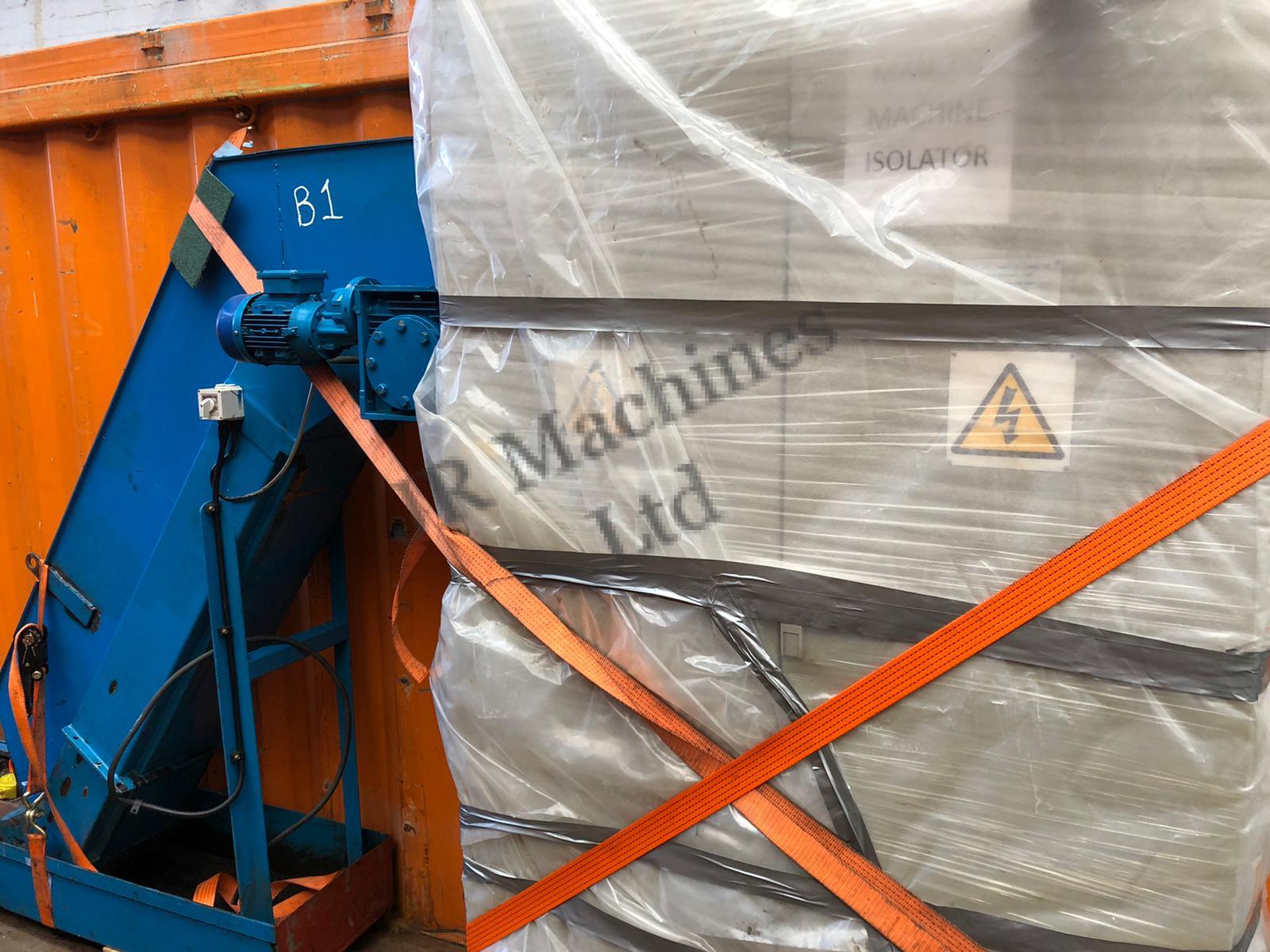

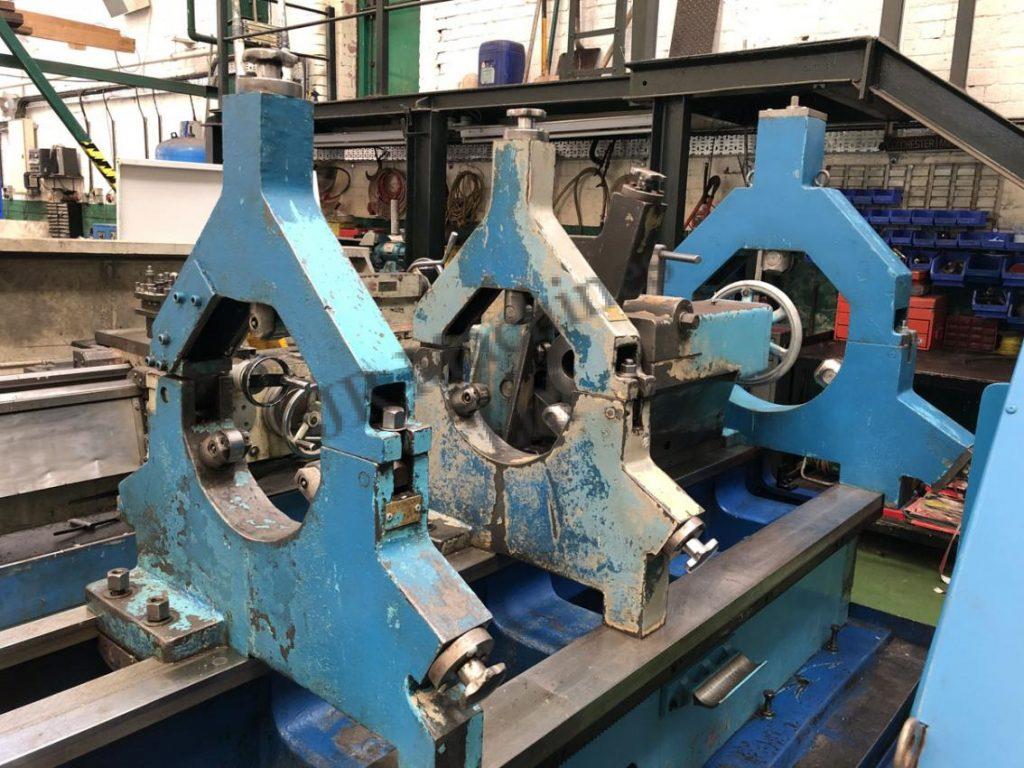

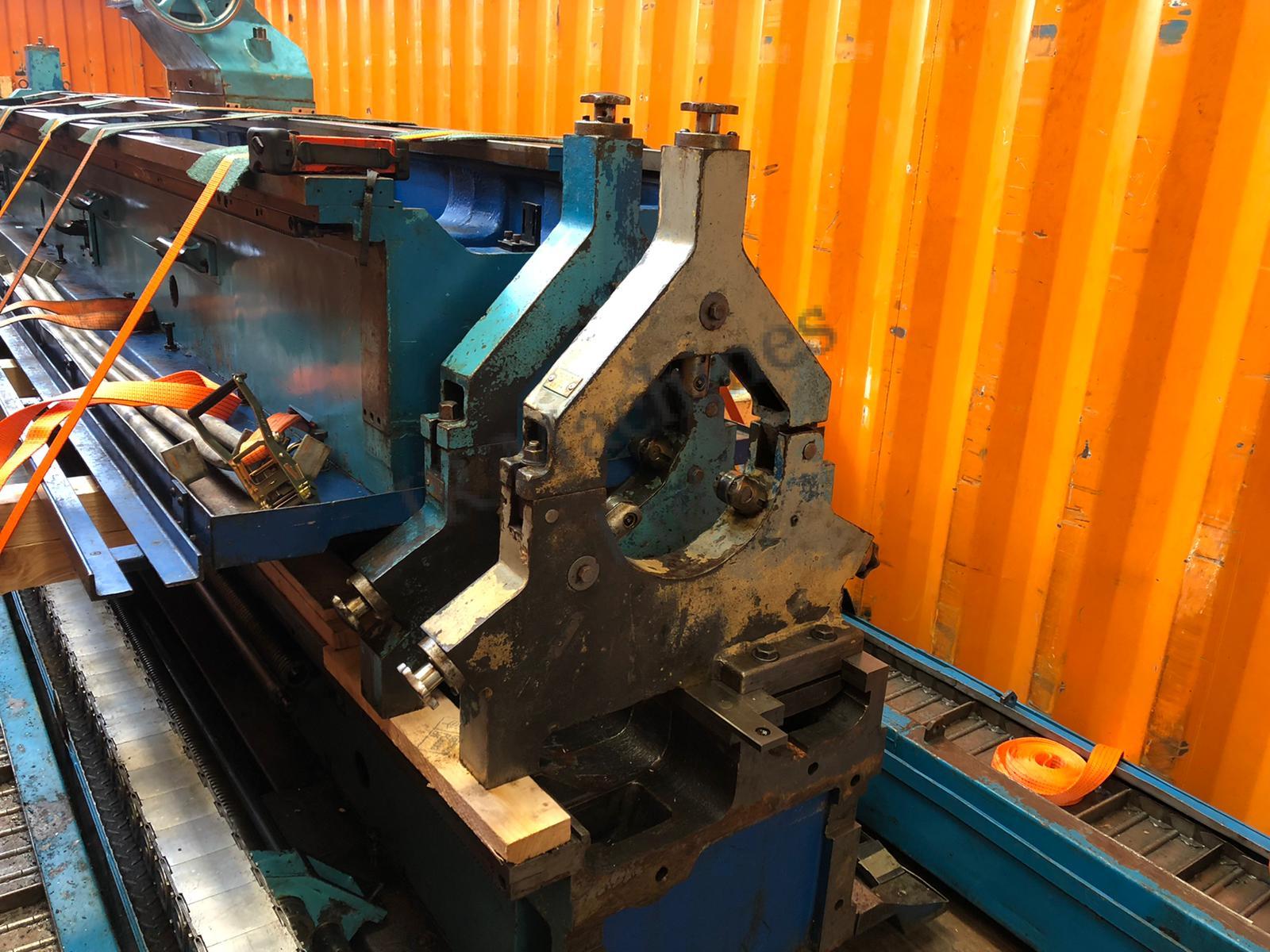

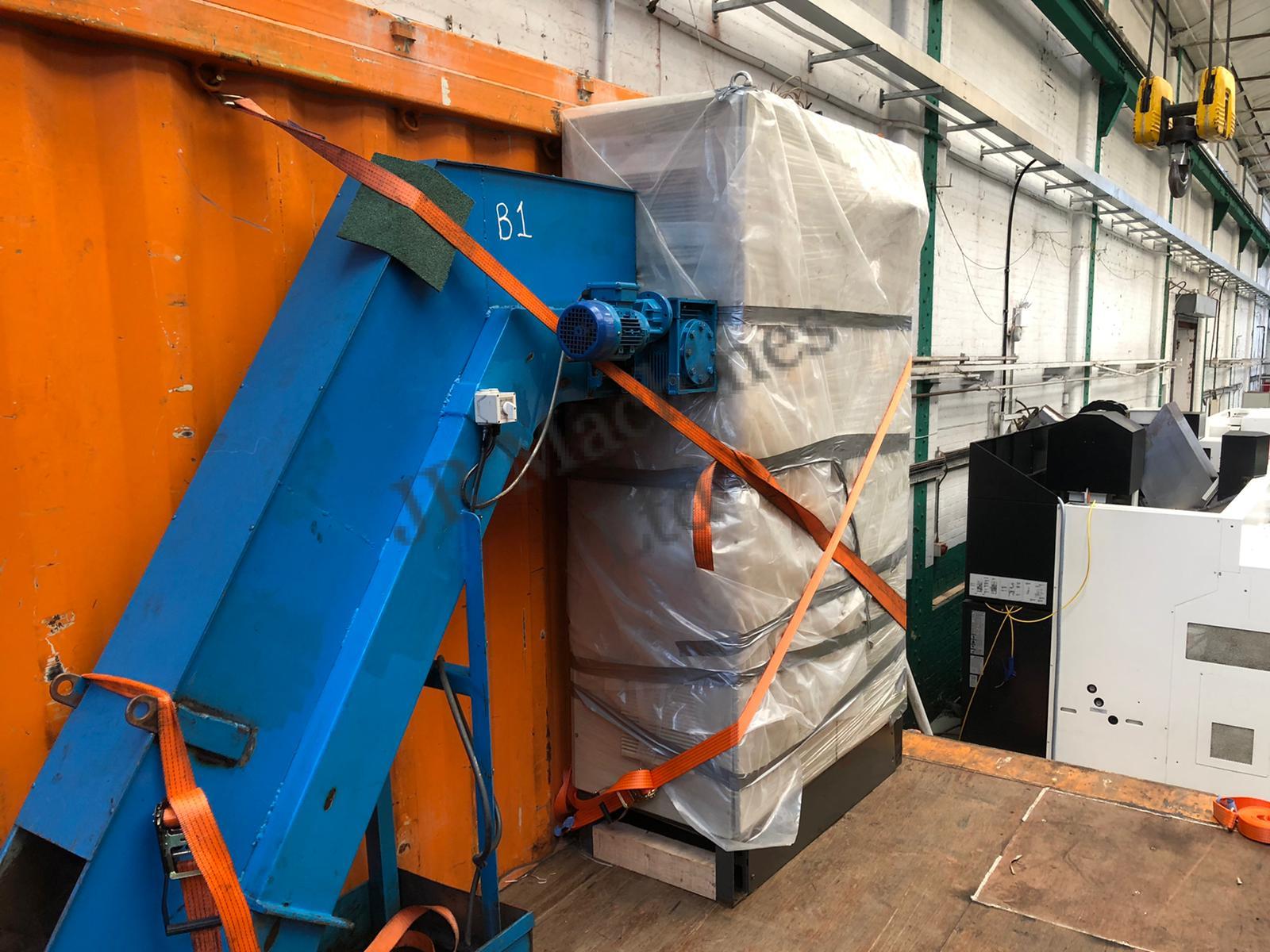

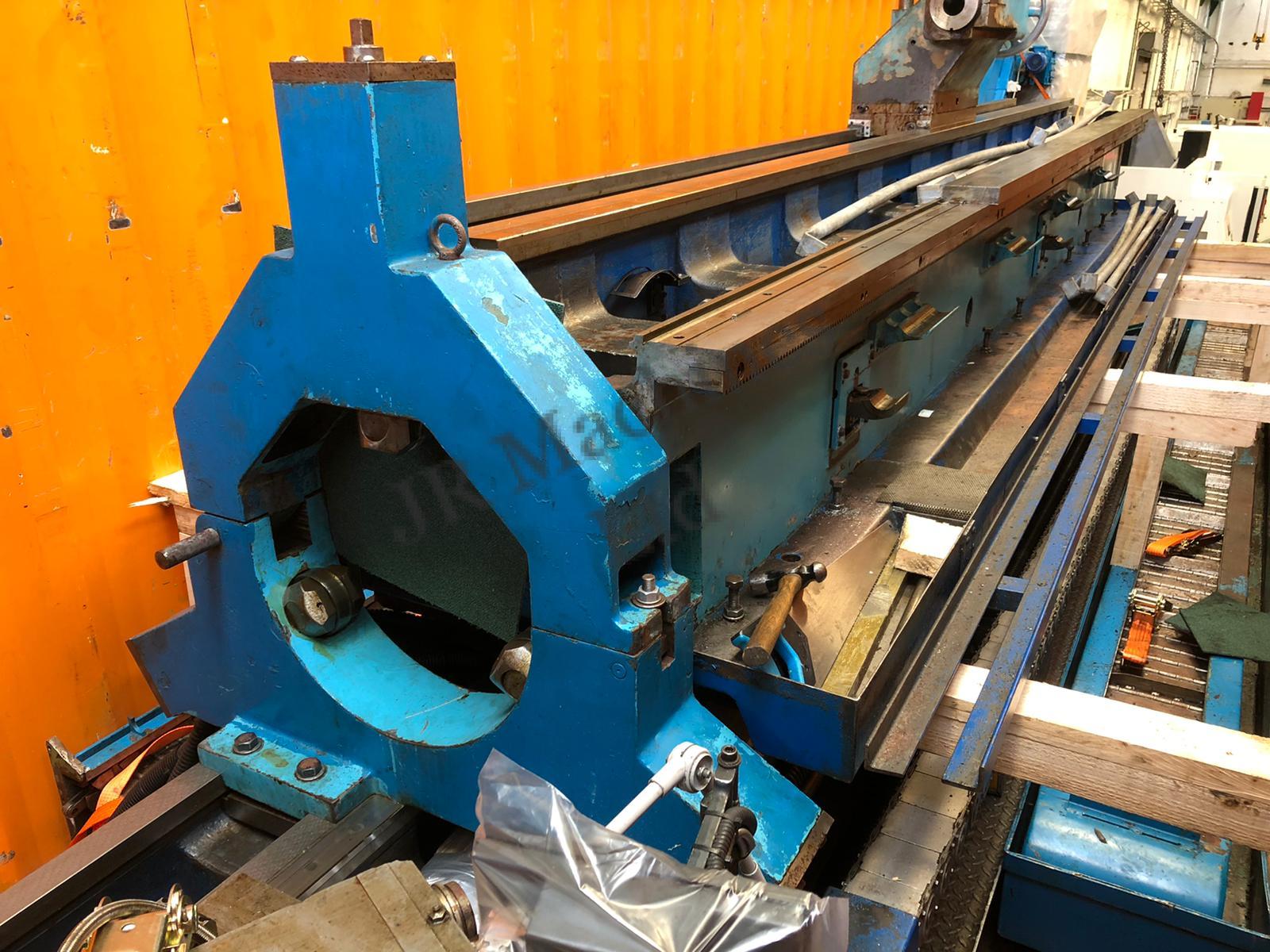

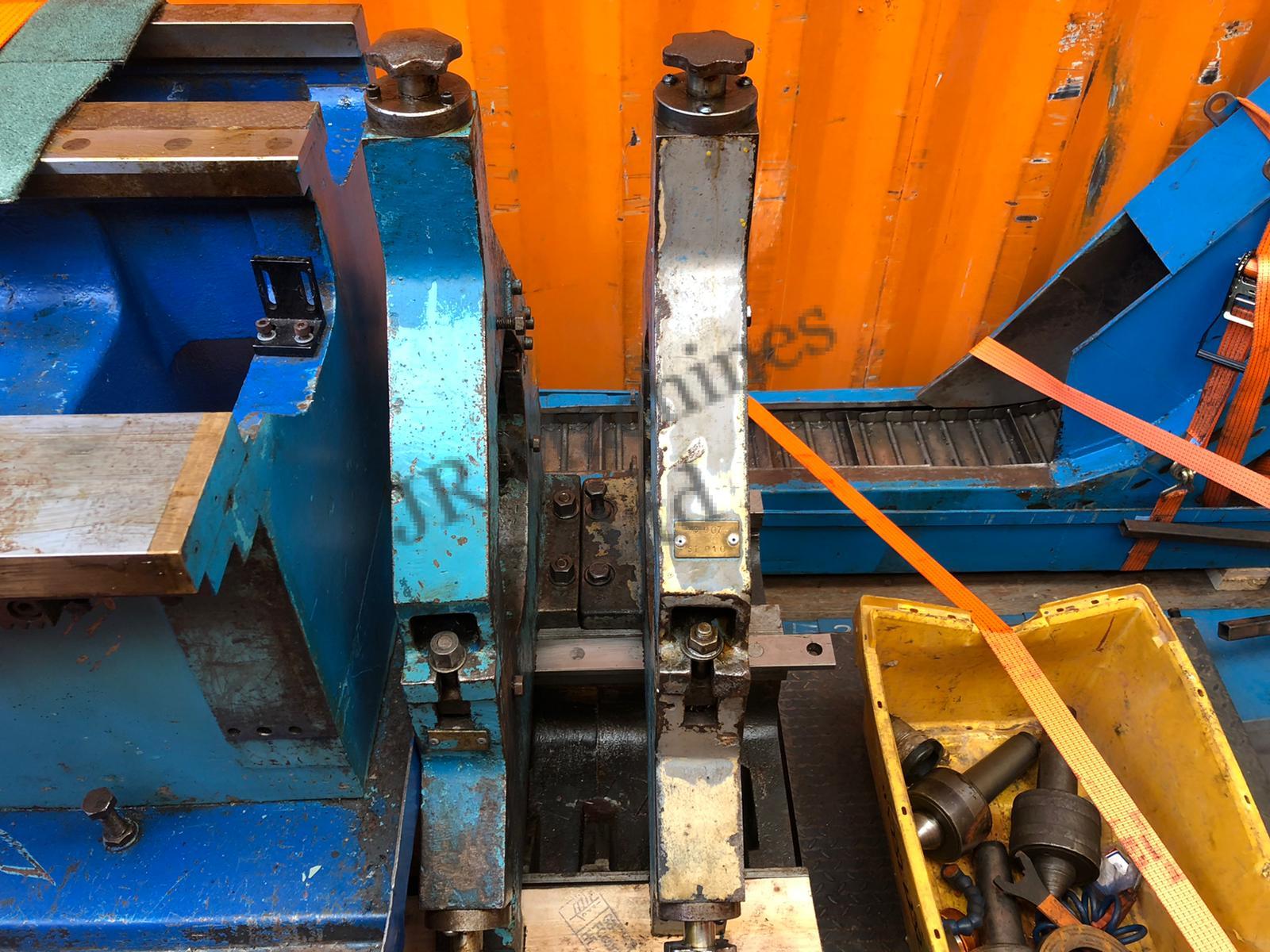

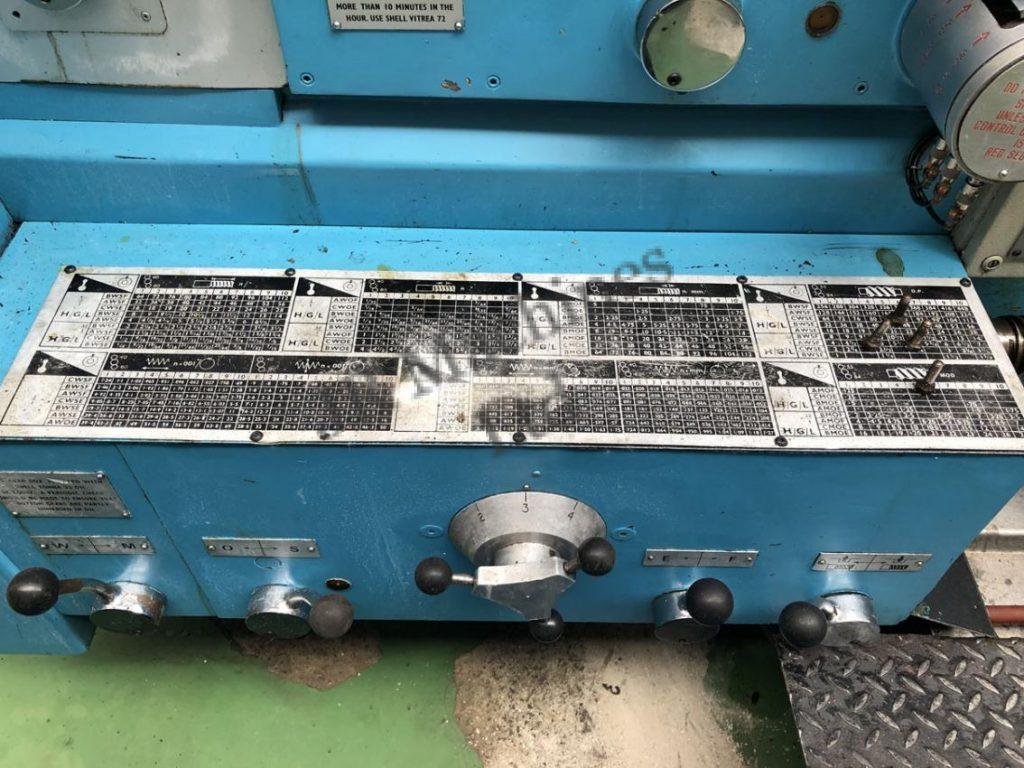

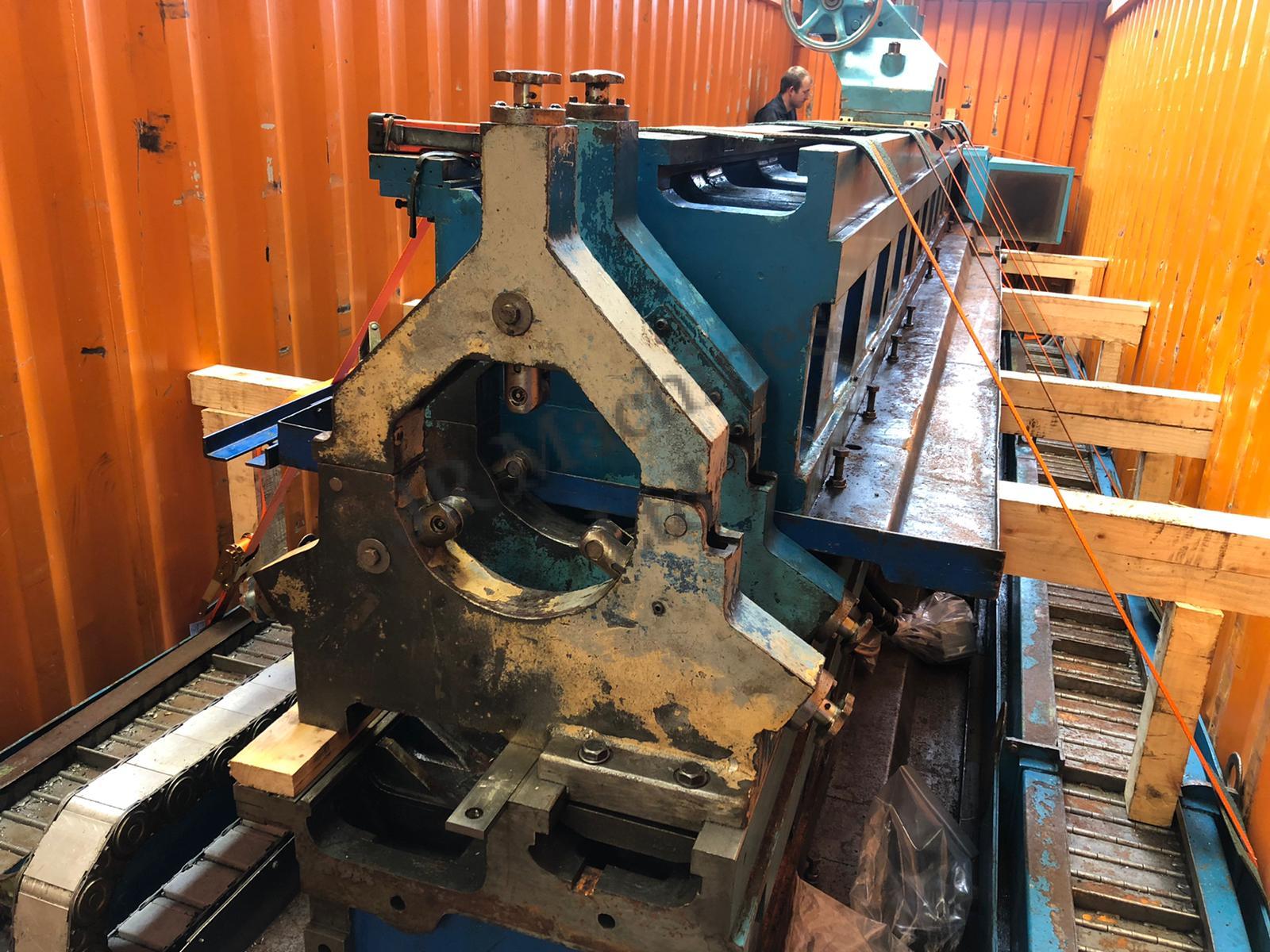

Newall Topaz DRO. English & Metric Screwcutting. Swarf Conveyor. Rapid Traverse to Saddle. 4 Way Toolpost. 3 x Fixed Steadies. Travelling Steady

Dimensions : L x W x H 13,157mm of machine only (with swarf conveyor 15,036mm) x 1980mm x 1447mm

Specifications

Category : CONVENTIONAL
