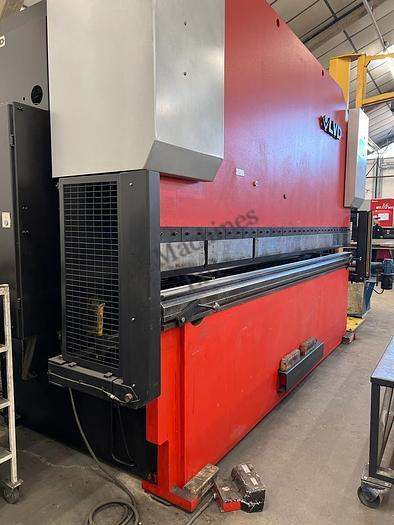

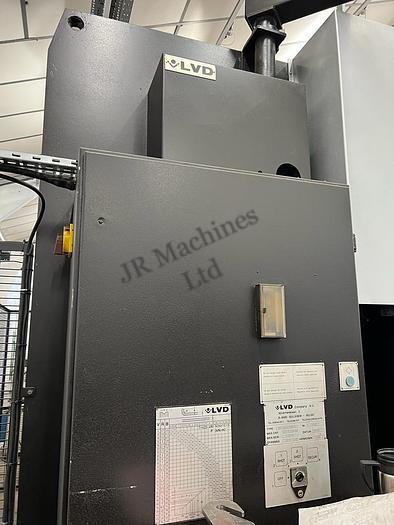

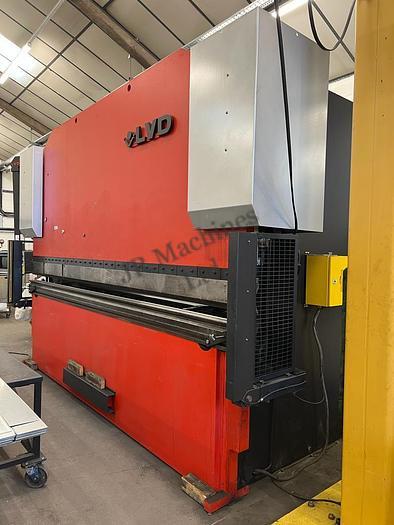

The LVD 220 Tonne Press Brake is a powerful machine used for bending and shaping metal sheets. With 220 tonnes of pressing force, it handles large and thick materials efficiently. Ideal for manufacturing and industrial applications, it ensures precise and reliable metal forming operations.
Max. Pressing Force= 2200KNMax.
Working Length= 4200 mm
Distance b/w the frames = 3760 mm
Max. Length of Stroke= 200 mm
Working Height= 910mm
Working Height with crowning= 1065mm
Maximum distance table/ram= 450mm
Maximum distance table/ram with V-axis= 420 mm
Depth of Gap= 300 mm
Width of the table= 180 mm
Approach speed= 100 mm/s
Working Speed= 7 mm/s
Return Speed= 72 mm/s
Motor= 15 mm/s
Oil tank= 250L
Machine Weight= 16800 Kg
