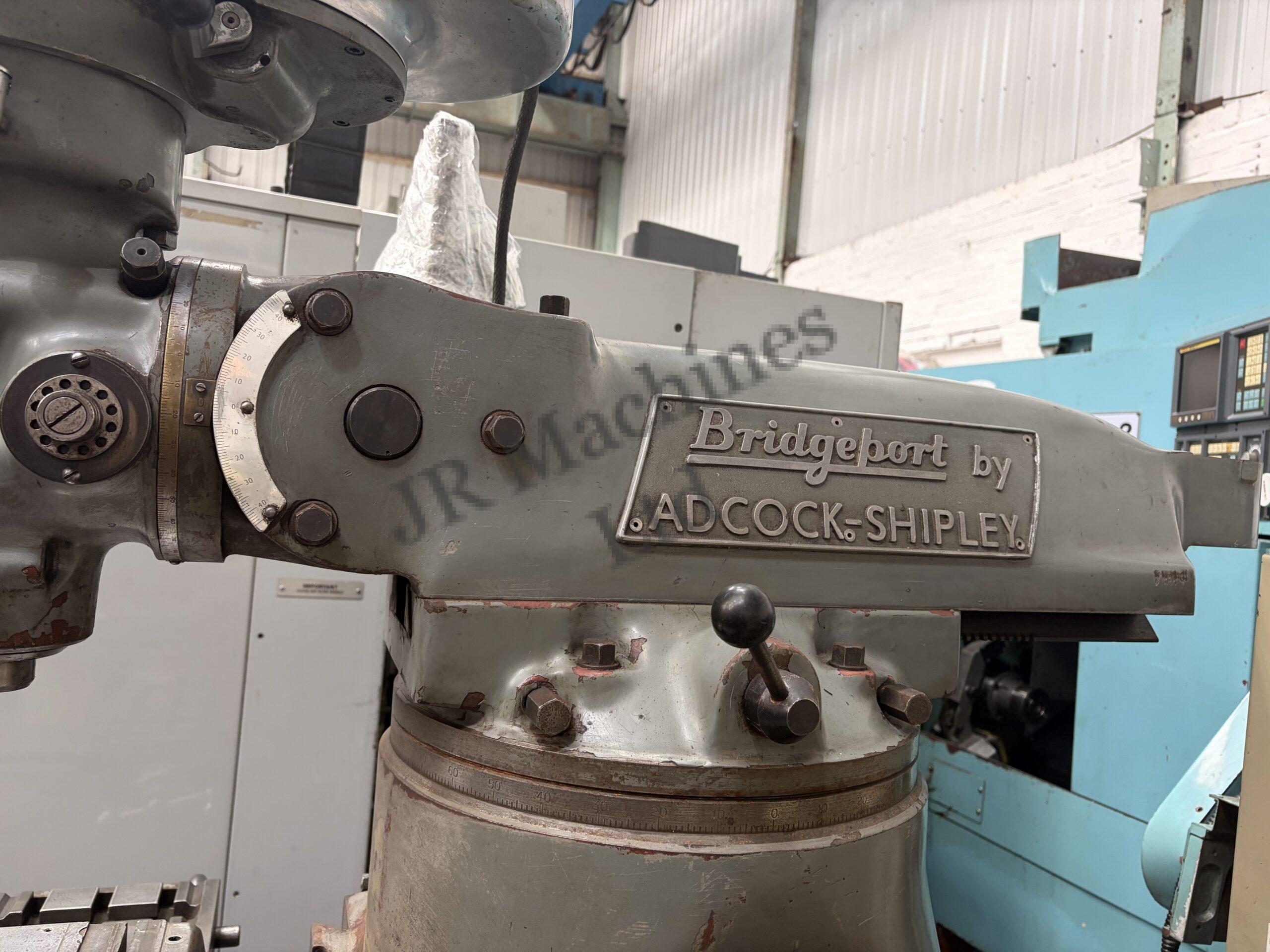

The Bridgeport Series-1 by Adcock-Shipley Vertical Turret Milling Machine is a highly versatile and widely used manual milling machine designed for precision machining in toolrooms and engineering workshops. Manufactured in the UK under Bridgeport license, it is known for its robust construction, accuracy, and long-term reliability. The machine features a turret ram head, allowing the spindle to be positioned at various angles for flexible machining.
| Specifications | Details |
| Machine Type | Vertical Turret Milling Machine |
| Model | Series 1 (J-Head) |
| Table size | 42” × 9” |
| Table Travel (X-Axis) | 750 – 800 mm |
| Table Travel (Y-Axis) | 300 – 350 mm |
| Table Travel (Z-Axis) | 400 mm |

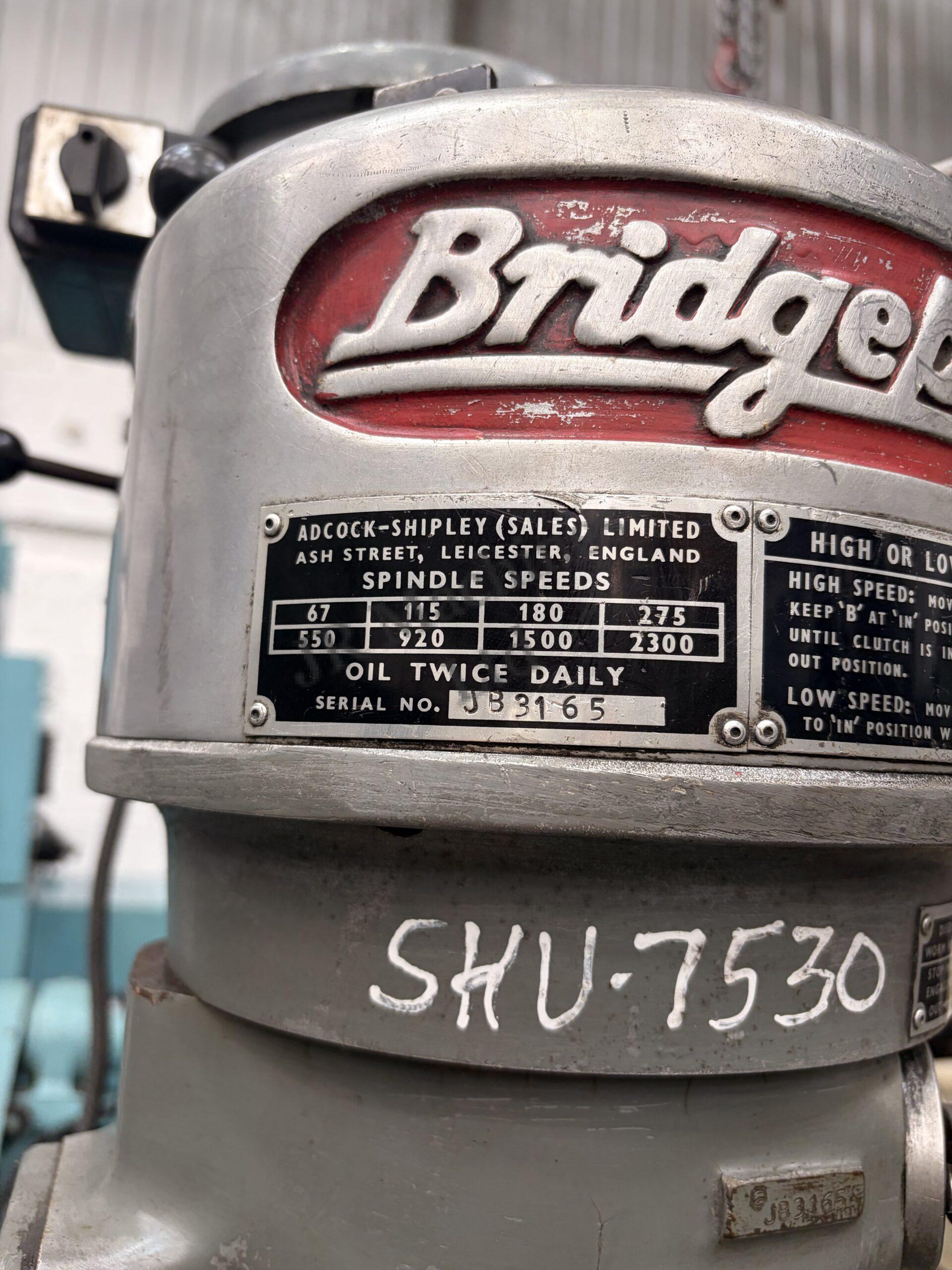

| Spindle Speed | 67-2300rpm |
| Spindle Taper | R8 |
| Feed system | Manual |
| Motor Power | 1.5 – 2HP |
