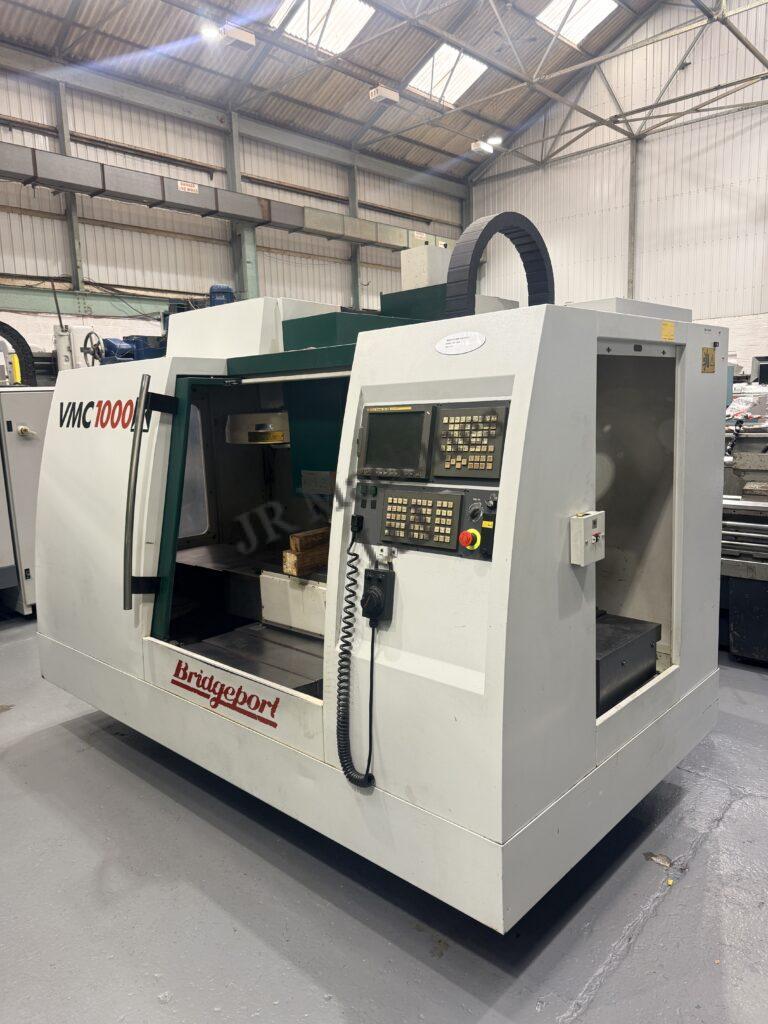

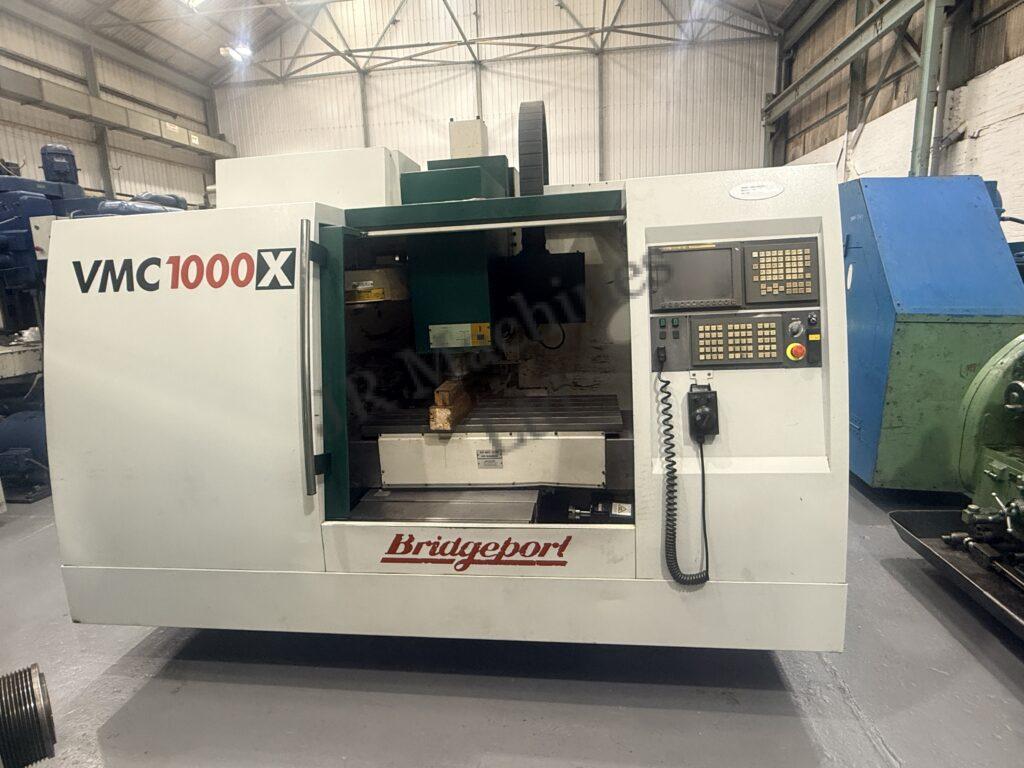

The Bridgeport VMC 1000X is a high-performance 3-axis CNC vertical machining centre designed for precision milling, drilling, boring, and tapping applications. The VMC 1000X features a spacious working envelope, high-speed spindle, and automatic tool changer, making it suitable for machining a wide range of components with excellent repeatability. Featuring a rigid cast iron construction and a GE Fanuc Series 18i-MB CNC control, it delivers excellent accuracy, repeatability, and dependable performance in both toolroom and production environments. The machine is widely used in automotive, aerospace, mould and die, and general engineering industries for efficient, high-precision machining.
| Machine Type | CNC Vertical Machining Centre |
| Manufacturer | Bridgeport |
| Model | VMC 1000X |

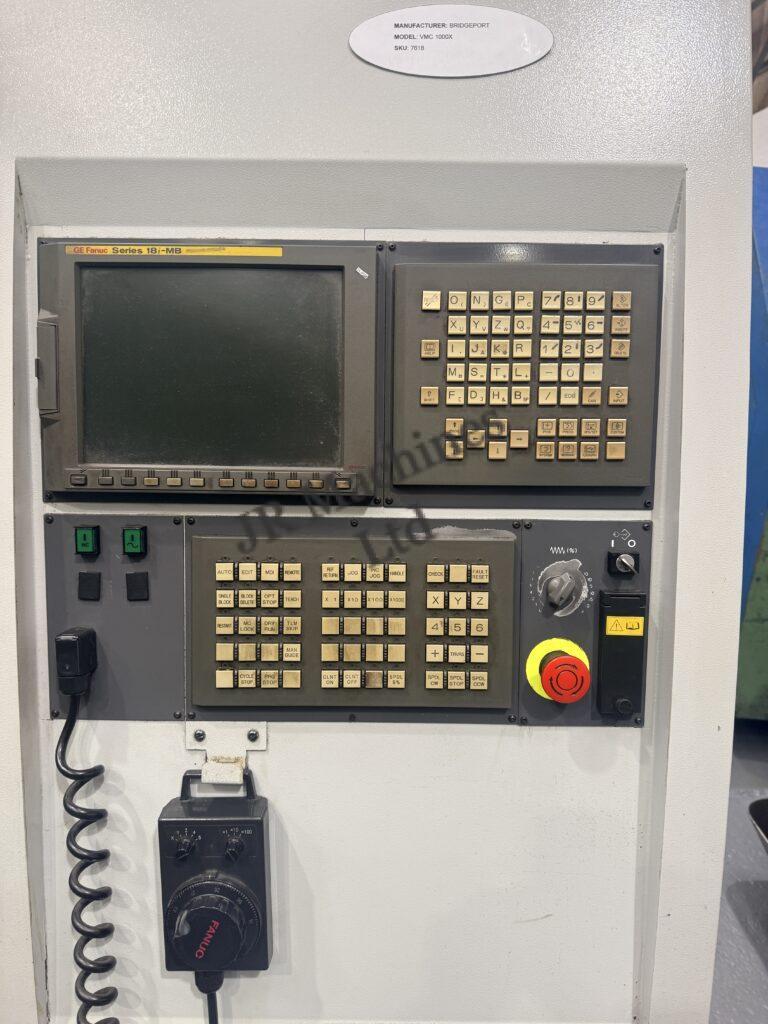

| CNC Control | GE Fanuc Series 18i-MB (confirmed from machine) |
| Number of Axes | 3 (X, Y, Z) |
| Table Size | Approx. 1150 × 500 mm |
| X-Axis Travel | 1000 mm |
| Y-Axis Travel | 500 mm |
| Z-Axis Travel | 500 mm |
| Table Load Capacity | Up to 600 kg |
| Spindle Taper | BT40 / ISO 40 |
| Spindle Speed | Up to 8,000 RPM |
| Spindle Motor Power | Approx. 11 kW (15 HP) |

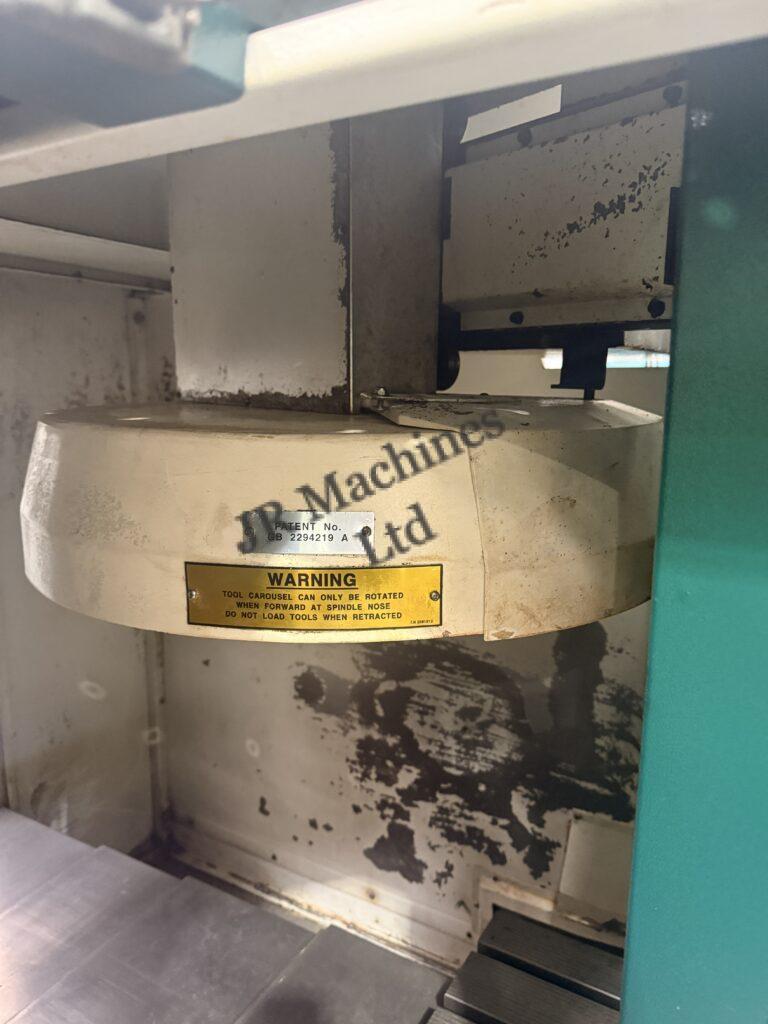

| Automatic Tool Changer | 22 Tools |
| Electrical Supply | 400–415 V, 3 Phase |
| Machine Weight | Approx. 3,500–3,800 kg |
