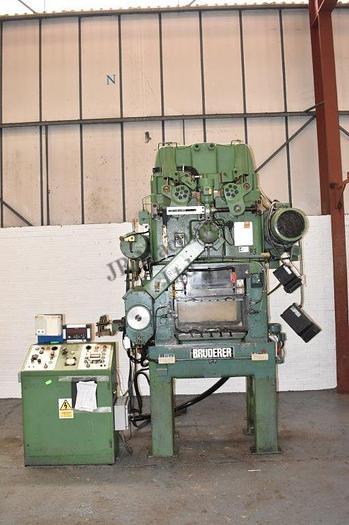

BRUDERER BSTA 40 HIGH SPEED

Description

The Bruderer BSTA 40 high-speed blanking press is a powerful machine used for cutting metal sheets into precise shapes. It operates at high speeds, ensuring efficiency and accuracy. Ideal for industries requiring mass production of metal parts, it provides consistent, high-quality blanking performance.

BRUDERER MODEL BSTA 40 HIGH SPEED BLANKING PRESS

PRESSURE (ton) 40

STROKE (stepless) from – up to (s/min) 70s/min – 1200s/min

TABLE SIZE 670mm x 570mm

TABLE RELIEVING 500mm x 150mm

TOOL HEIGHT 211.5 – 293.5mm

STROKE ADJUSTMENT (from) 13mm

STROKE ADJUSTMENT (up to) 57mm

SLIDE CLAMPING SURFACE (length, width) 660mm, 400mm

PASSAGE BETWEEN SUPPORTS (longitudinal, lateral) 640mm, 240mm

Adjustable Stroke

Strip Feed

Air Clutch

Specifications

Sold
