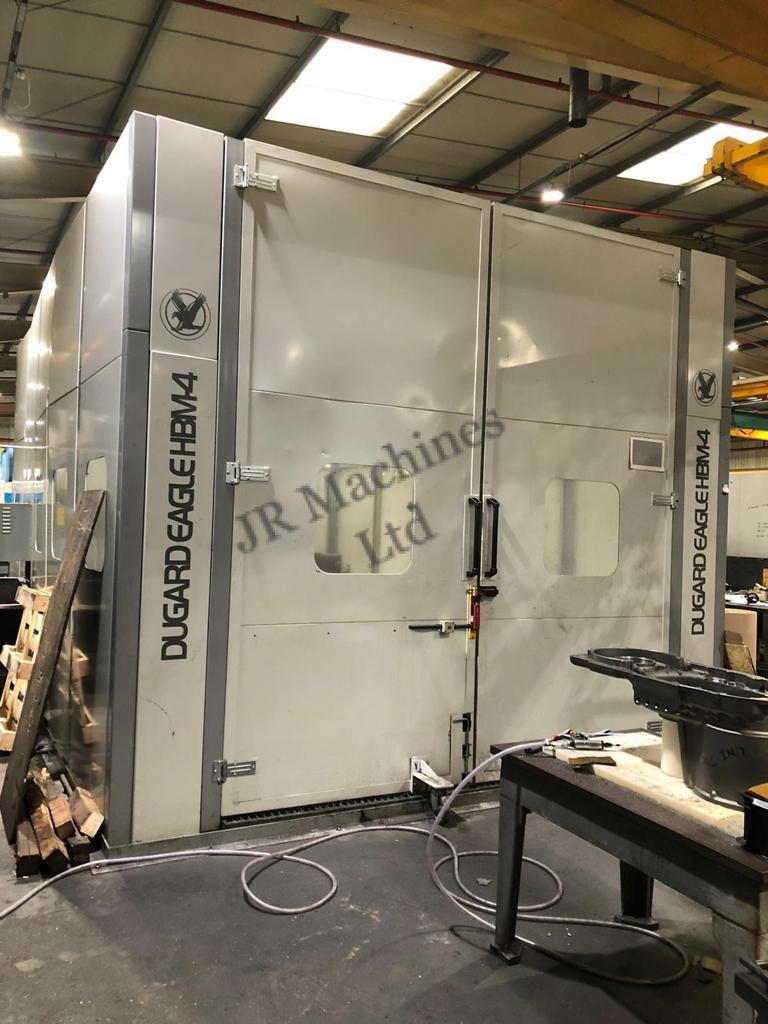

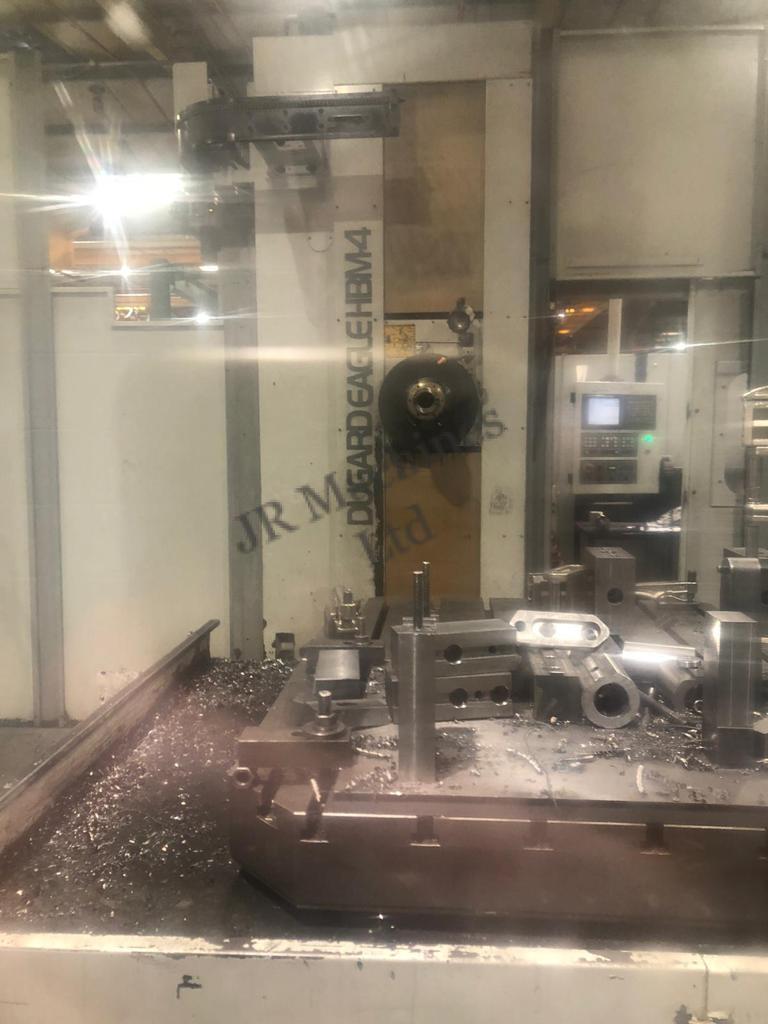

The Dugard HBM4 / MicroCut HBM-4 is a table-type CNC Horizontal Boring Machine designed for precision machining. It features a powerful spindle, large working table, and advanced CNC controls for accurate drilling, milling, and boring operations on large and heavy workpieces. It has 60 Station Arm Type Automatic Tool Changer, Right Angled Milling Head, Removable CNC Facing Head (U axis) and Fully Enclosed machine guards. Ideal for Energy, Oil & Gas, Rail, Defence & Large Fabrications industry operations.
Specifications
| Specification | Details |
| Machine Type | Horizonal Boring Machine |

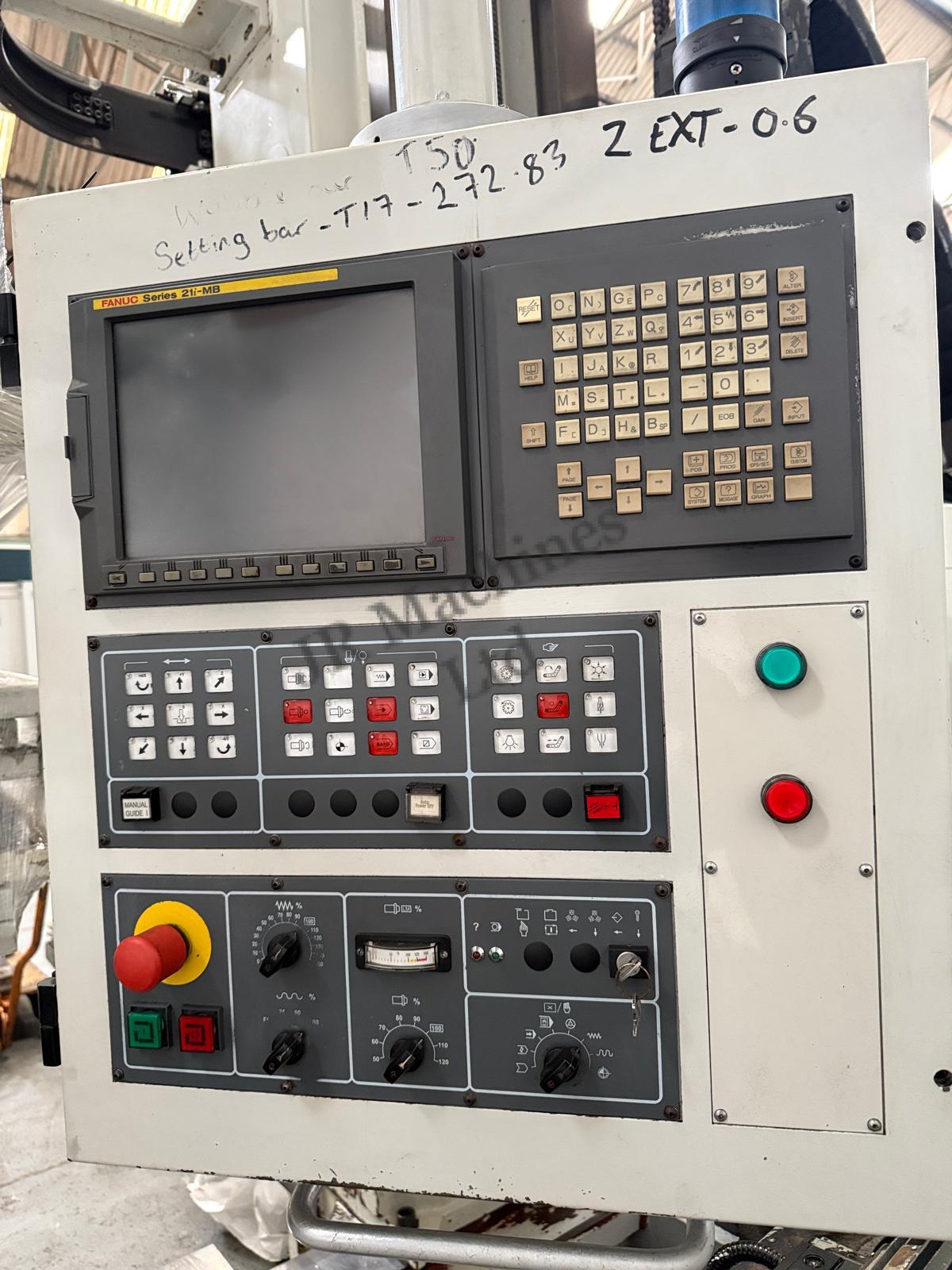

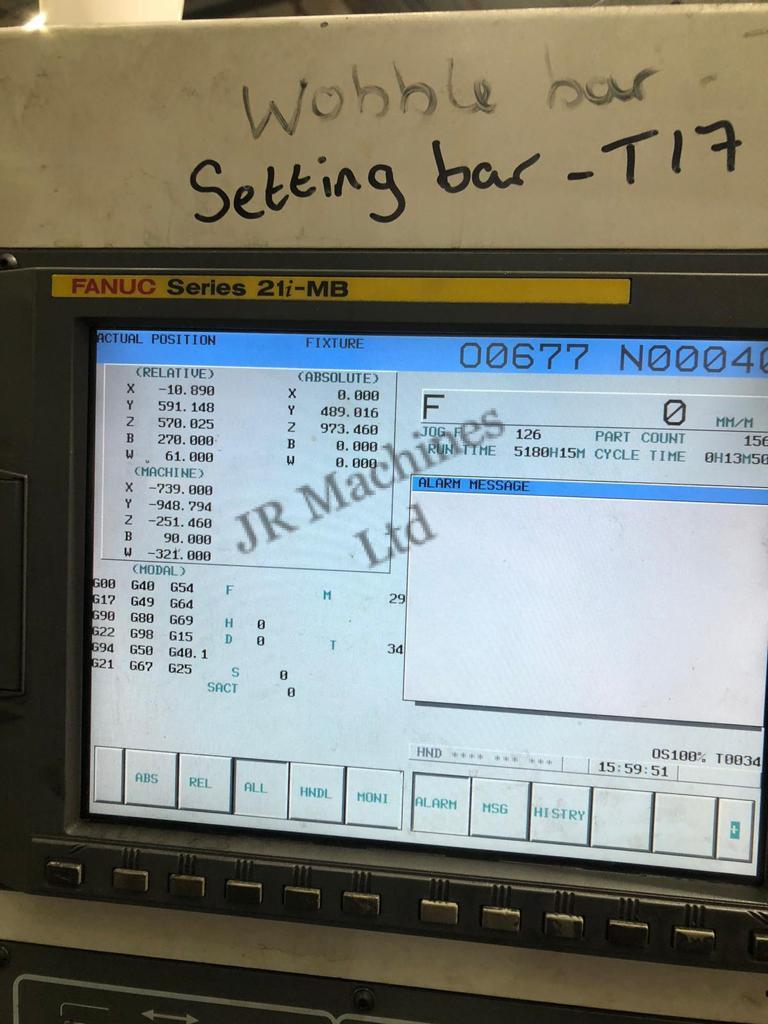

| CNC Control | Fanuc 21i-MB 5 axis Colour |
| Table size | 1200mm x 1500mm |
| X-axis | 2200mm (Cross) |
| Y-axis | 1600mm (Vertical) |
| Z-axis | 1600mm (Table In/out) |
| W-axis | 550mm (Spindle quill) |
| B-axis | Rotary Table 1 Degree |

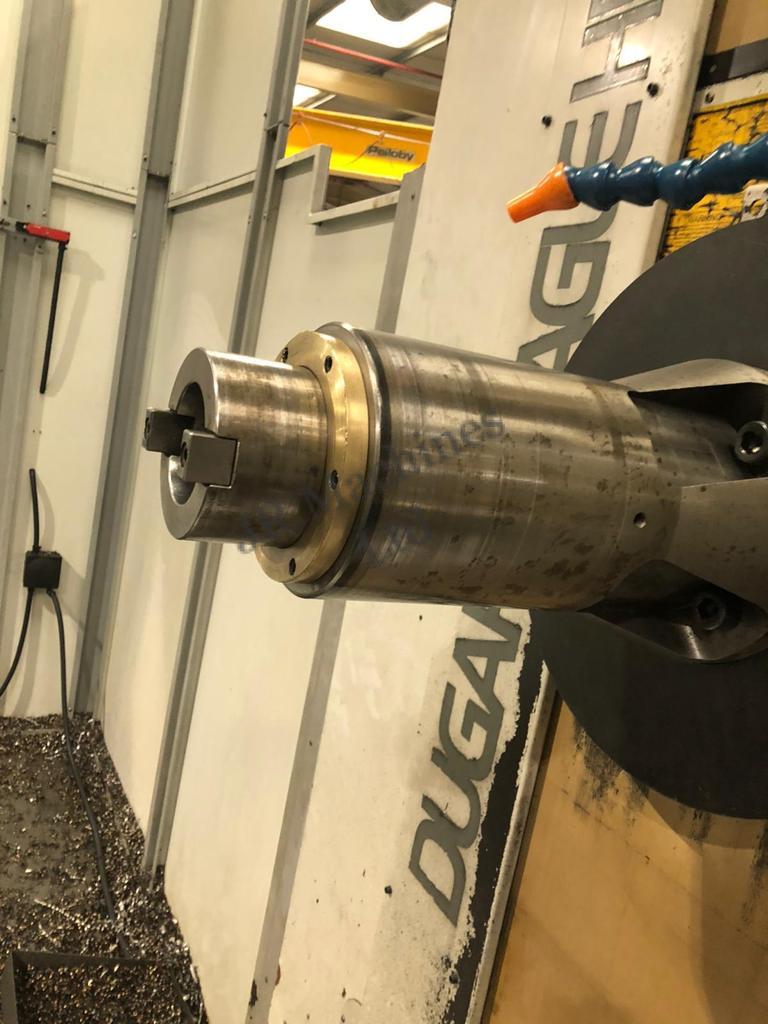

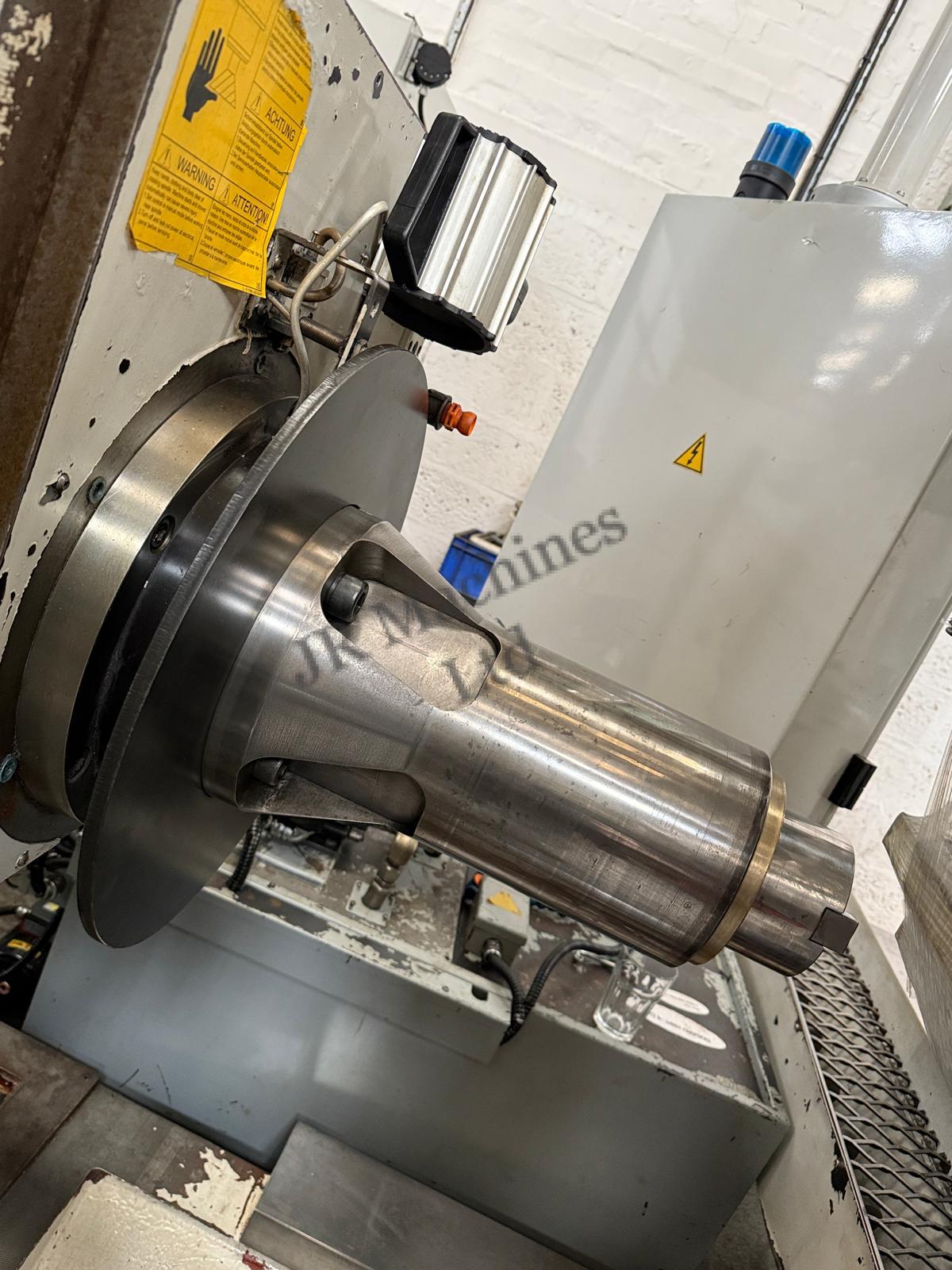

| Spindle Diameter | 110mm |
| ISO | 50 spindles |
| Spindle speeds | 35-3000rpm (2 ranges) |
| Main motor | 15/18.5kw |

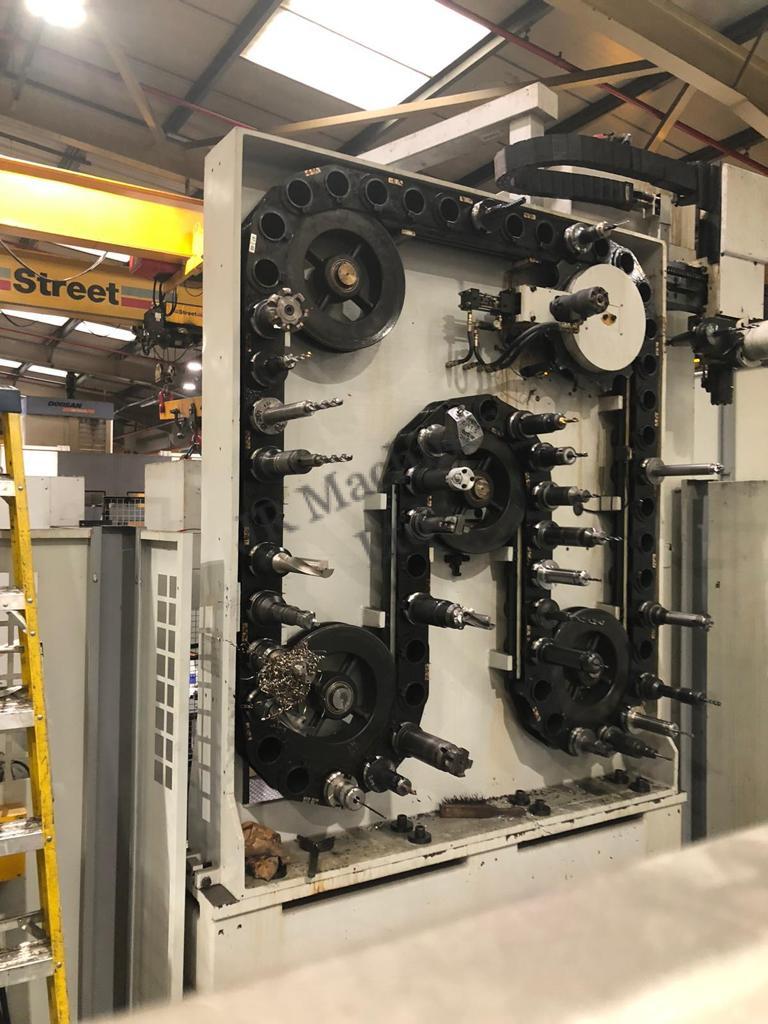

| Automatic Tool Changer | 60 Station Arm Type |
| Milling Head | Right Angled |
| U-axis | Removable CNC Facing Head |
