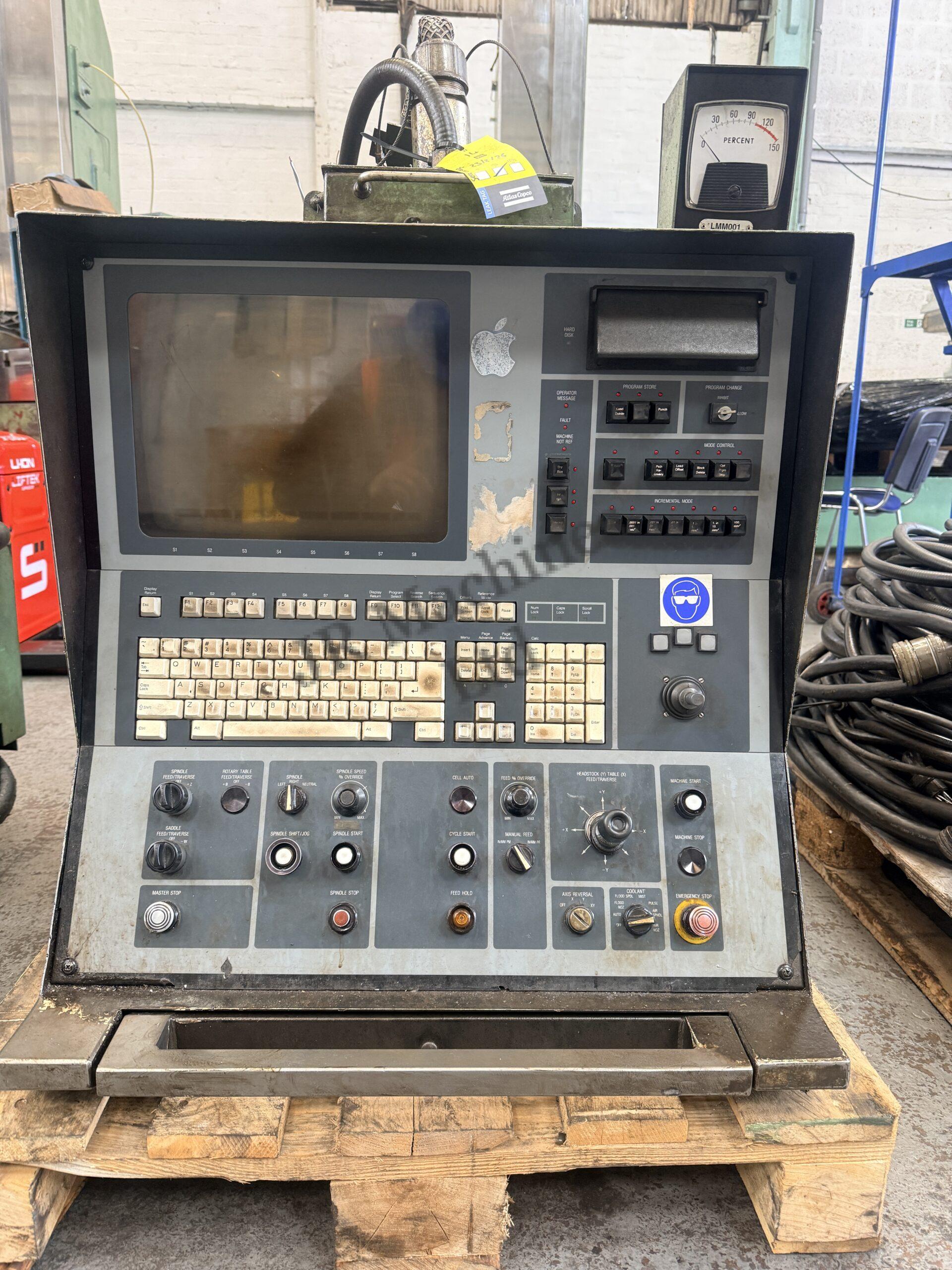

Gidding & Lewis G60T T-Bed Boring Milling Machine are widely recognized as the most rigid and precise machining platforms in the industry. Heavy-duty Giddings & Lewis G60T CNC horizontal boring mill, manufactured in 1995, suitable for large-scale precision boring, milling and machining operations. The machine is equipped with a Giddings & Lewis CNC operator console featuring a CRT display, programming keyboard, manual axis controls and spindle controls.
|
Specification |
Details |
|---|---|
| Machine Type | CNC Horizontal Boring & Milling Machine |
| Manufacturer | Giddings & Lewis |
| Model | G60T |
| Year of Manufacture | 1995 |
| Serial Number | 450-1178 |
| CNC Control | Giddings & Lewis Numeripath |
| Spindle Diameter | 152.4 mm (6″) |
| Spindle Taper | ANSI #50 |
| Longitudinal Travel (X-Axis) | 3,048–4,267 mm |
| Vertical Travel (Y-Axis) | 2,134–2,921 mm |
| Spindle Travel (Z-Axis) | 914–1,219 mm |
| Saddle Travel (W-Axis) | 889–2,515 mm |
| Table Dimensions | 1,524 × 3,048 mm to 1,829 × 4,267 mm |
| Maximum Table Load | 27,216–31,751 kg |
| Spindle Speed | 6–2,500 RPM |
| Main Motor Power | 30–37 kW (40–50 HP) |

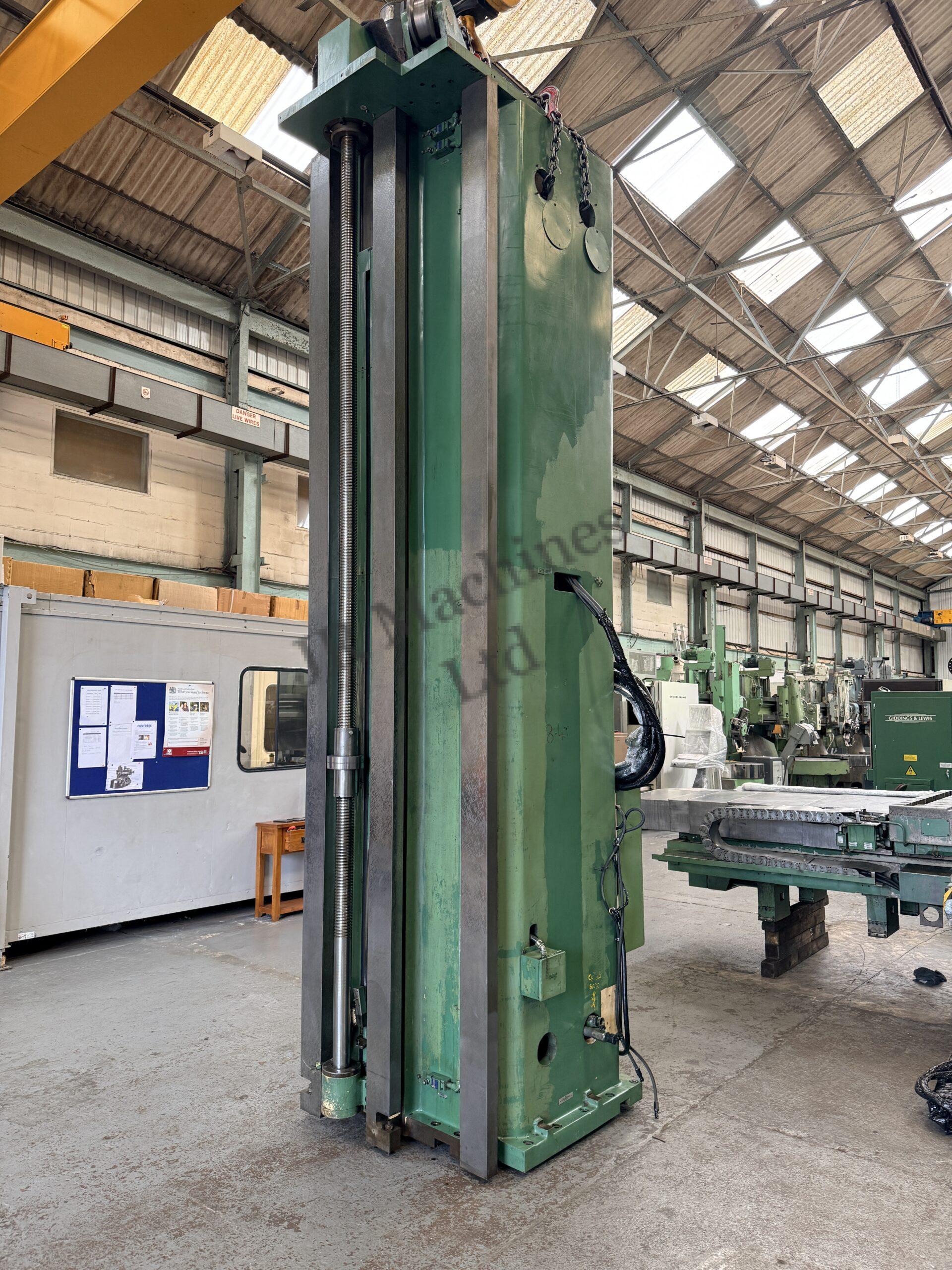

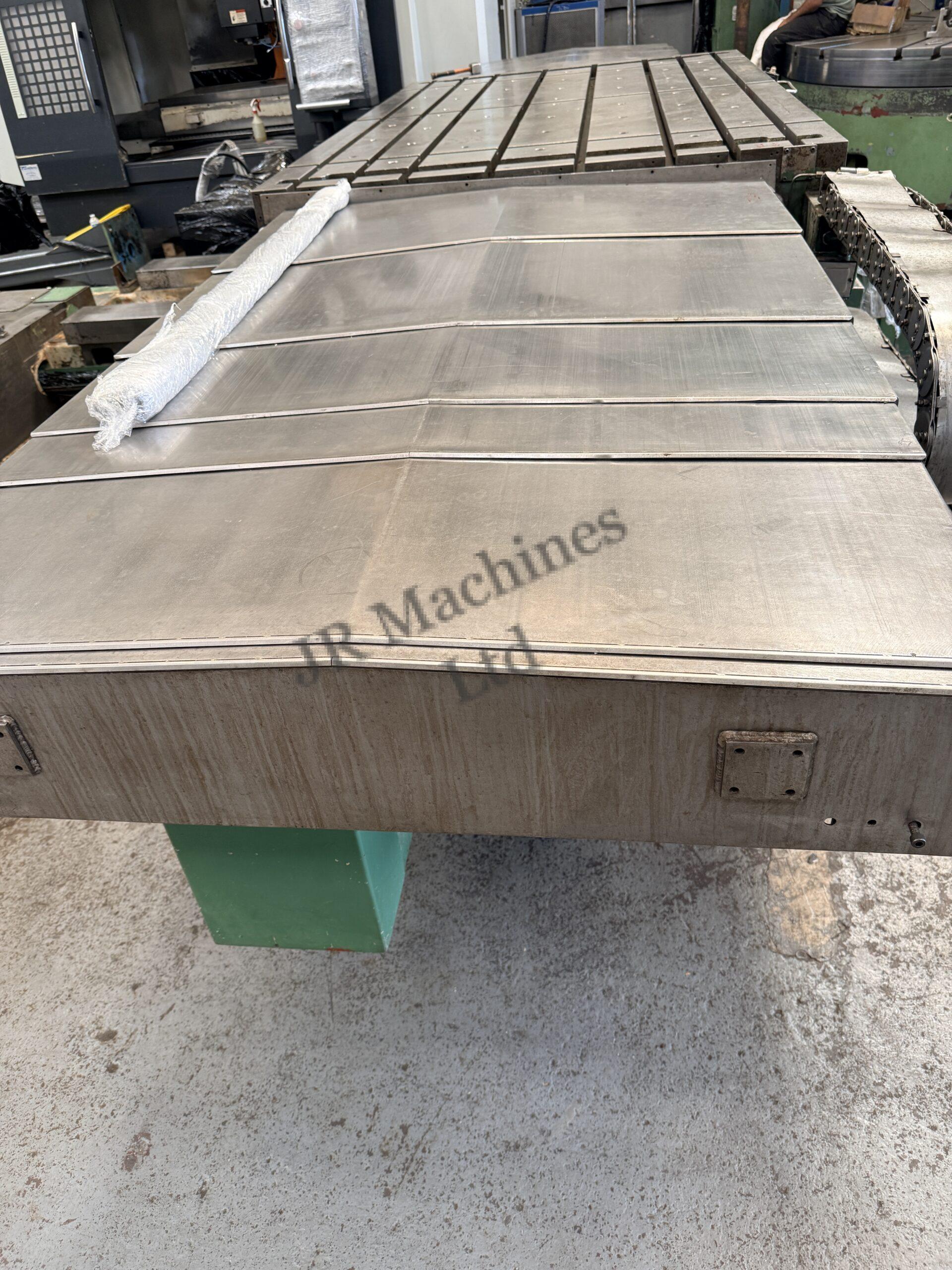

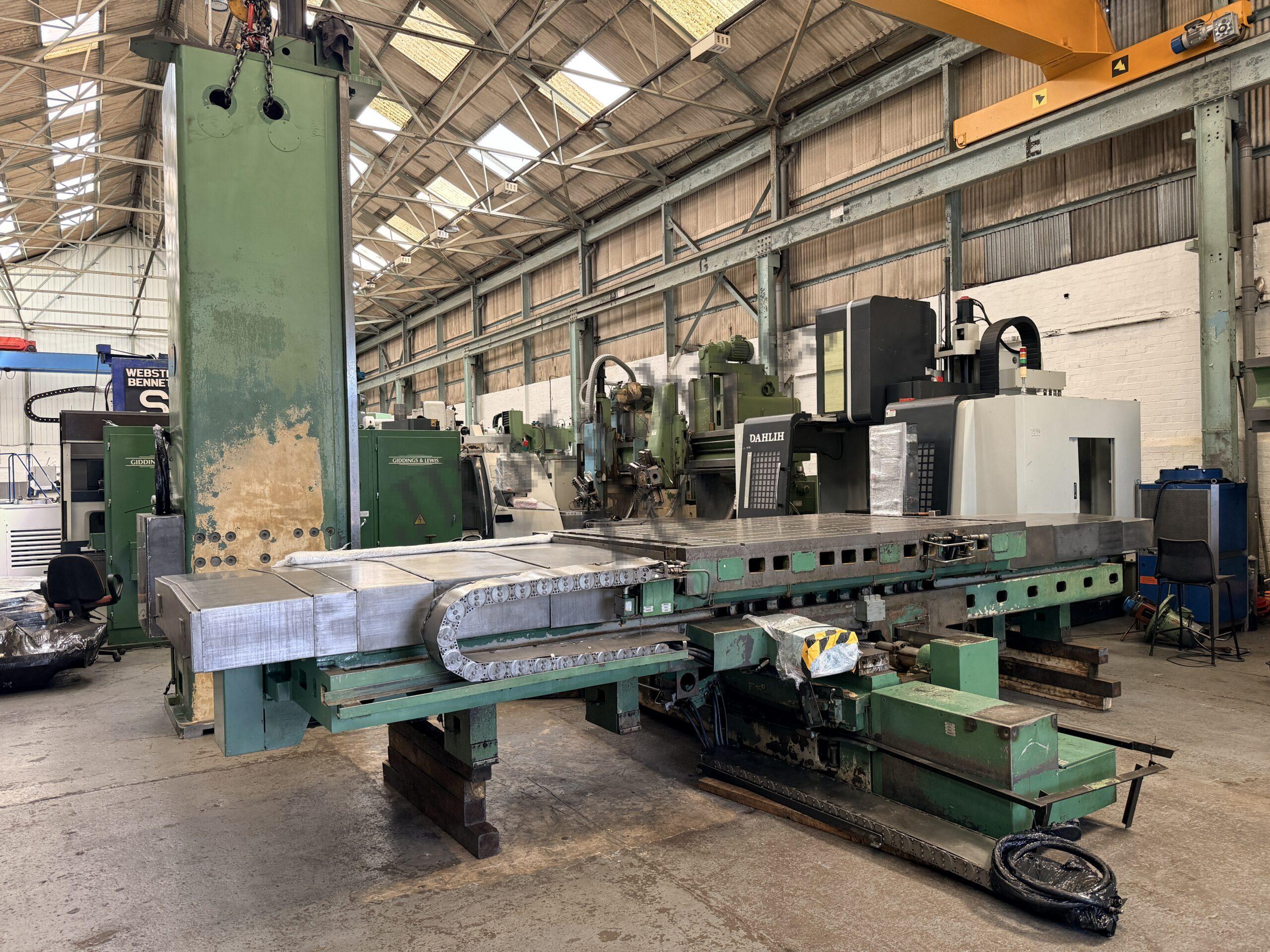

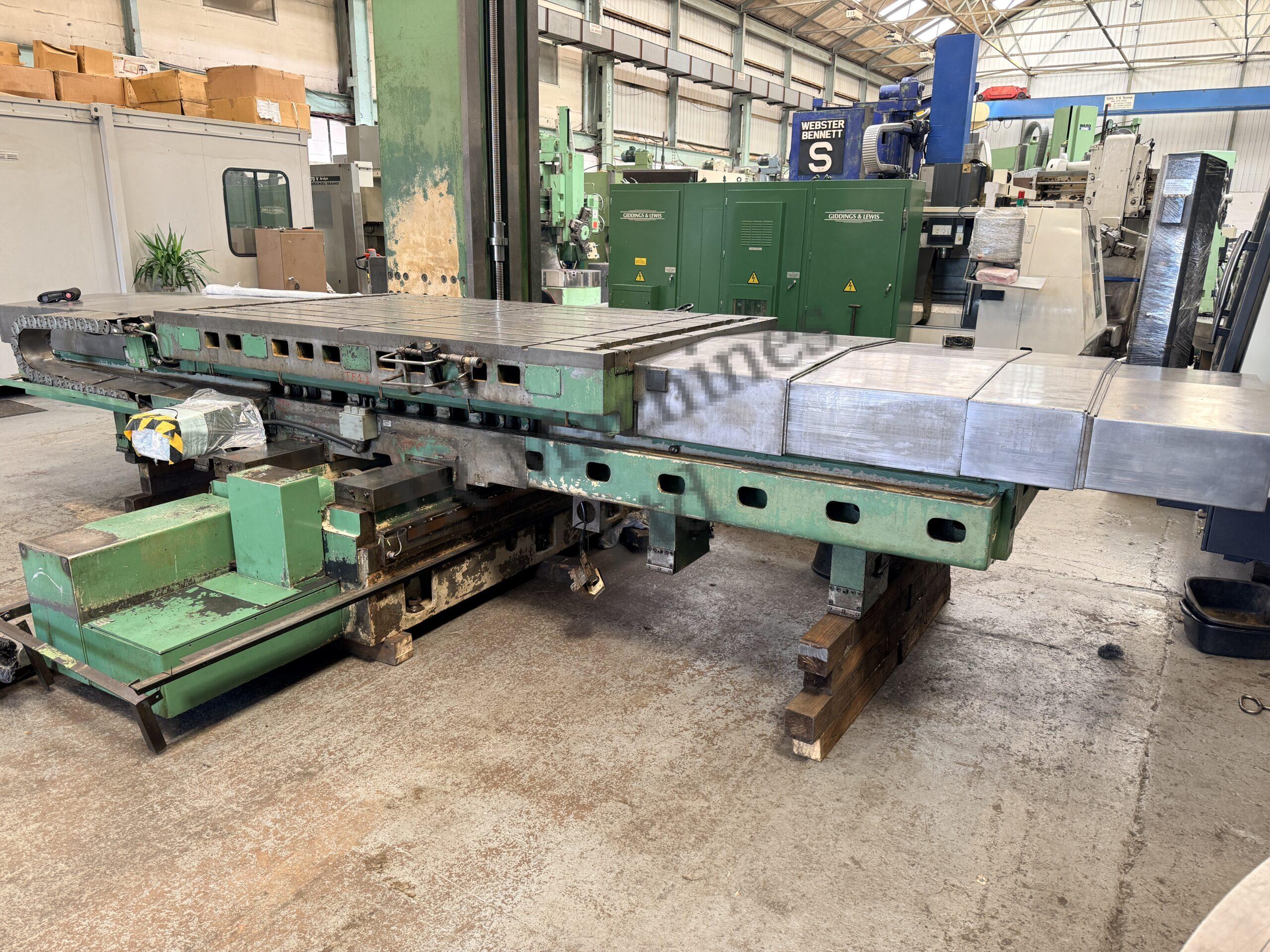

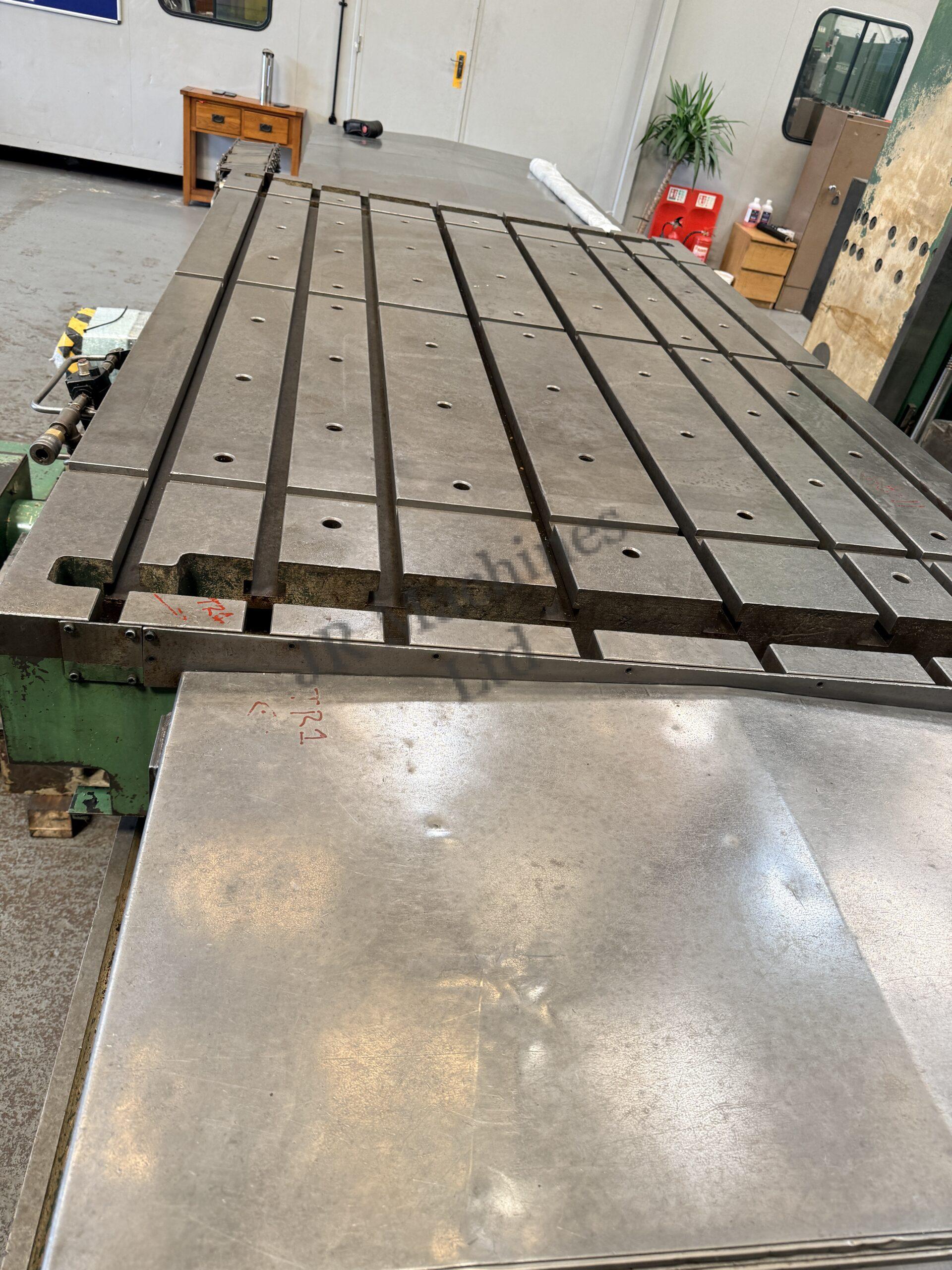

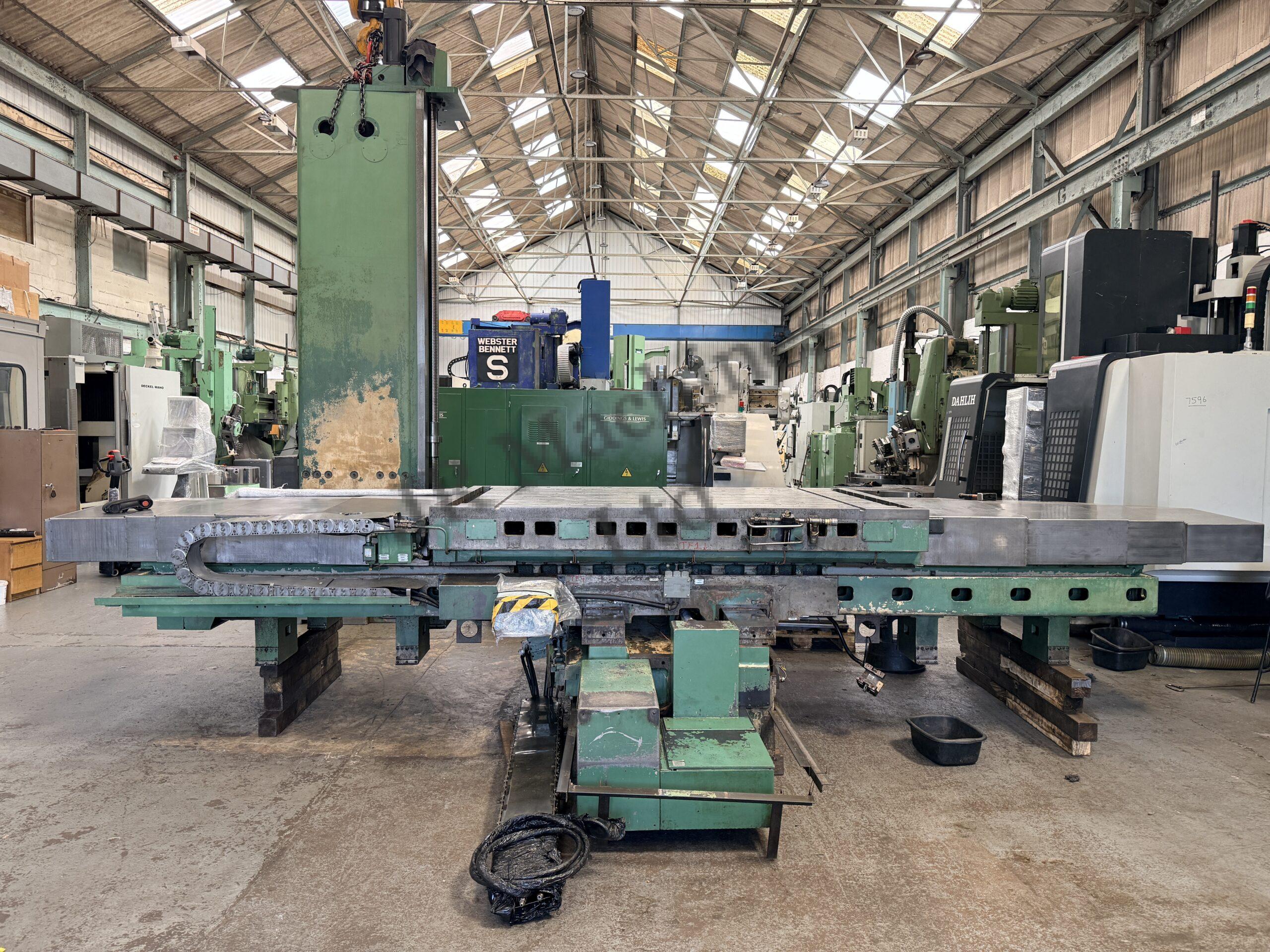

Please Note: The machine has been dismantled, and the photographs show it in dismantled condition. All machine parts and accessories are included with the machine.
