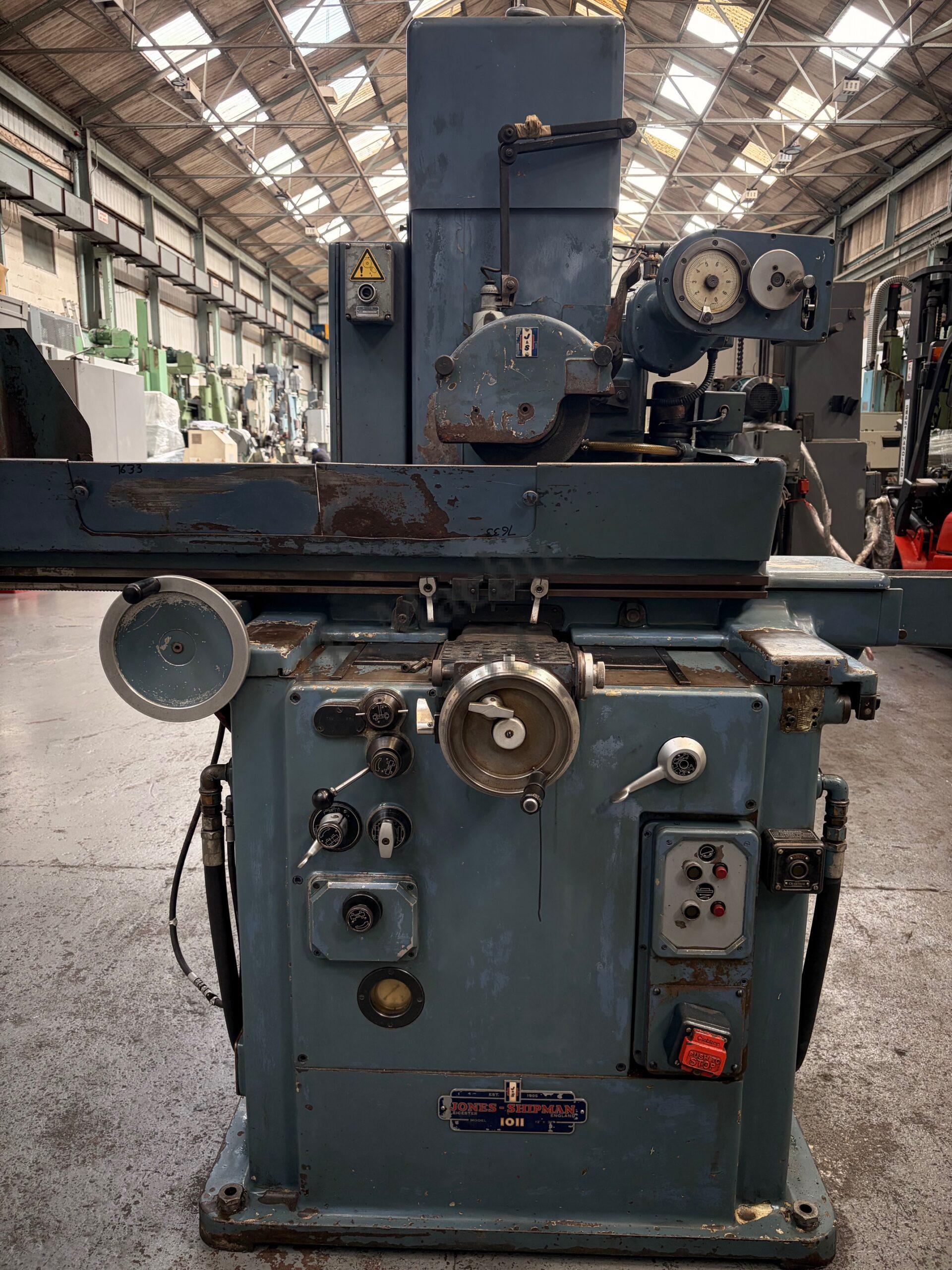

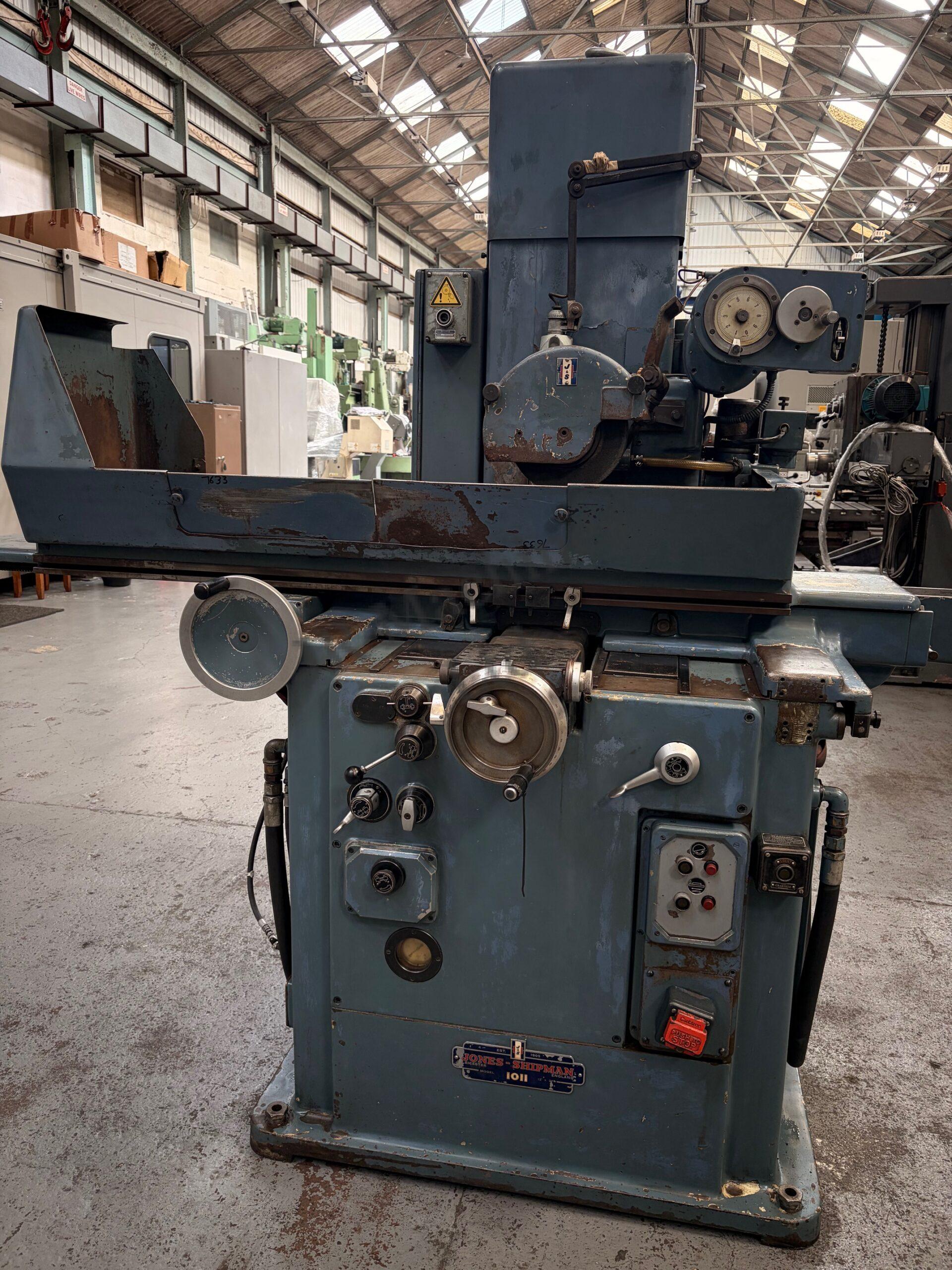

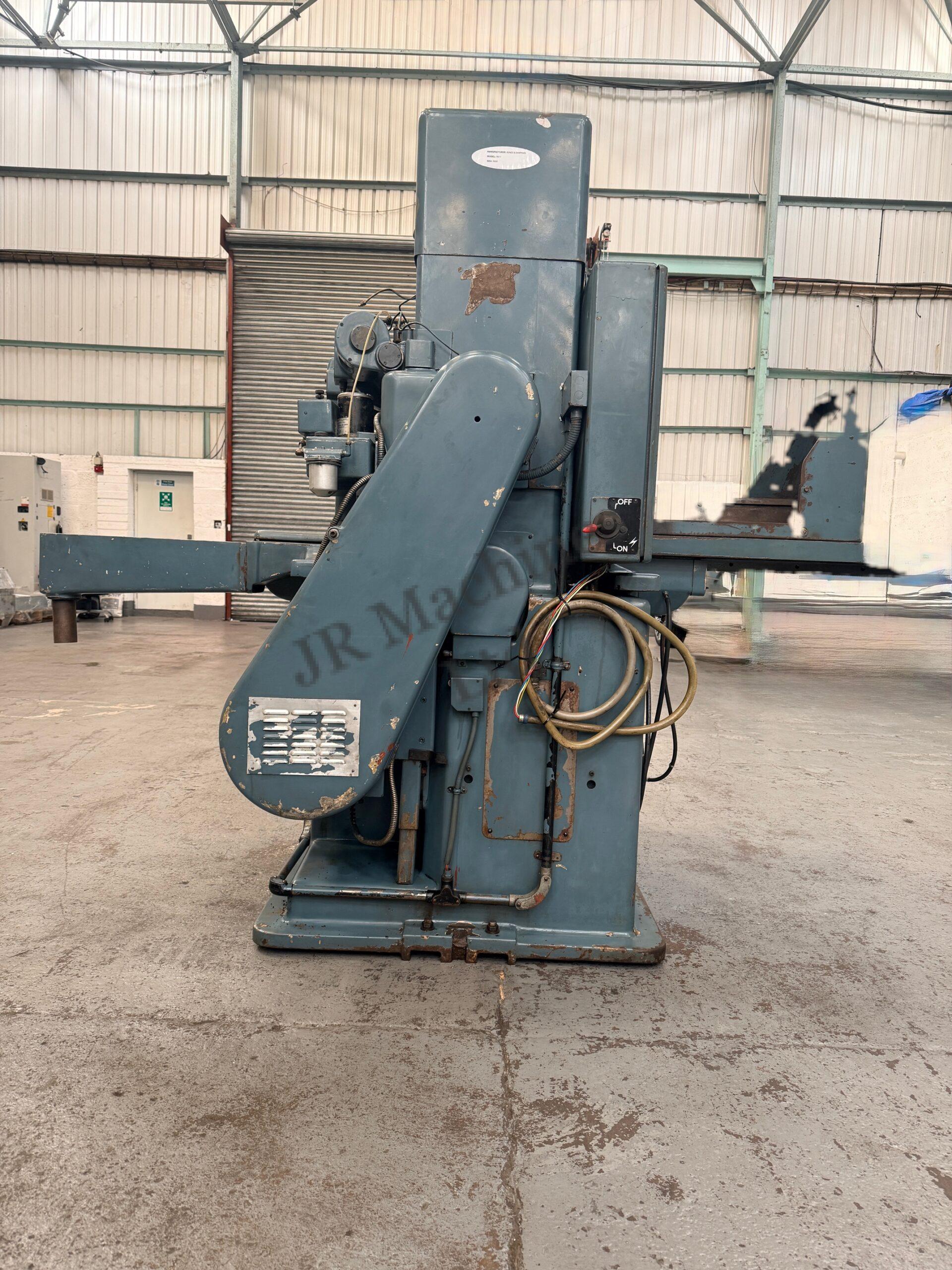

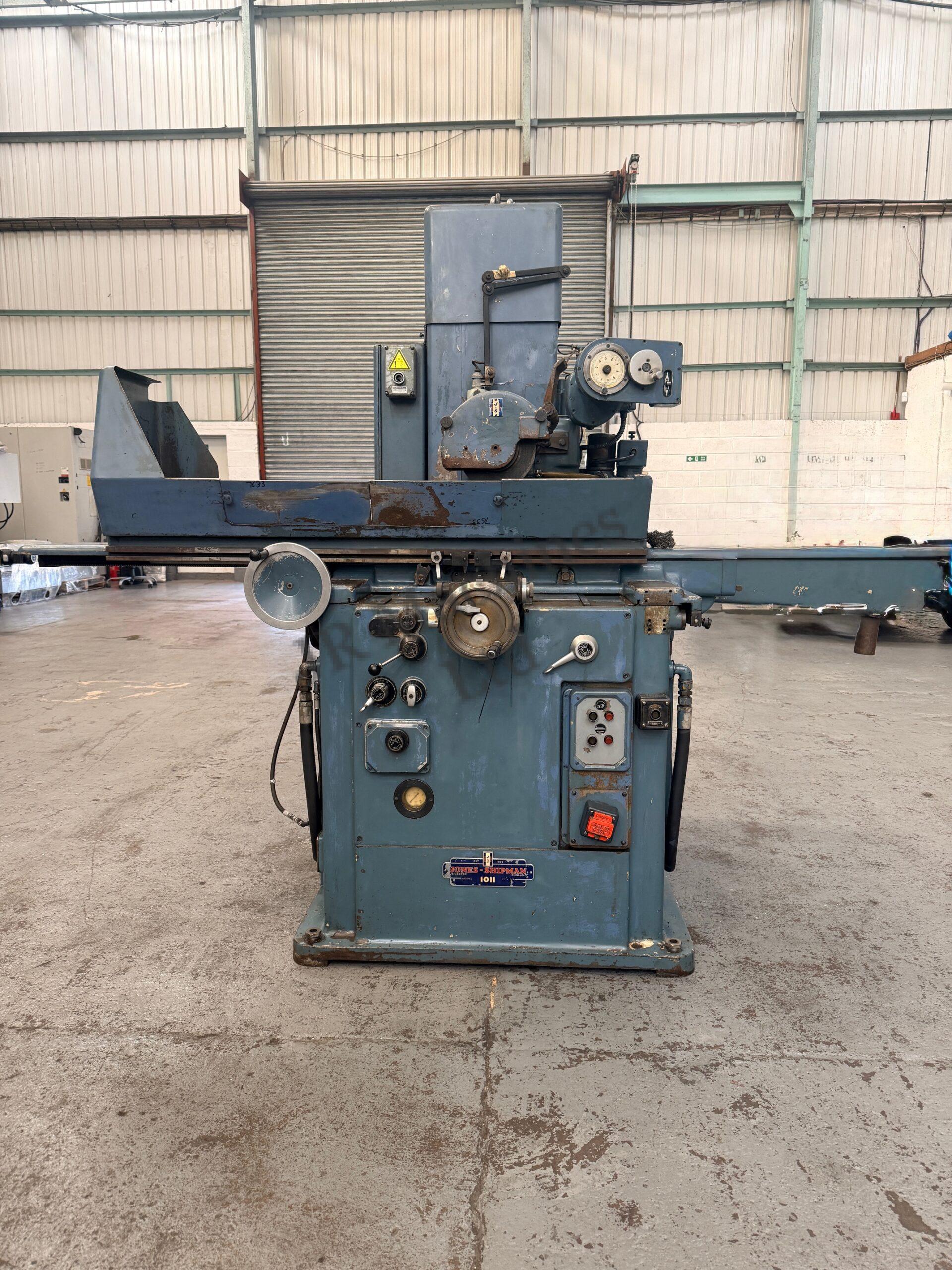

The Jones – Shipman 1011 Hydraulic Surface Grinder is a precision horizontal spindle surface grinding machine designed for producing high-quality flat surfaces with excellent accuracy and finish. It is capable of achieving tight tolerances and fine surface finishes, making it ideal for toolmaking, die work, and general engineering applications. Bed and wheelhead column cast integral and table fitted with stiffening bar. With its robust construction and simple operation, the machine is well suited for both batch production and precision finishing tasks.
| Specifications | Details |
| Machine Type | Horizontal Surface Grinder |
| Model | 1011 |
| Table Size | 12” x 27” |
| Wheel Speed | 2040 -2600 rpm |
| Grinding Wheels | 10” x 2” x 3” bore |
| Table Drive | Hydraulic |
| Motor Power | 220-380 V |
| Weight | 2745 -3200 Kg |
