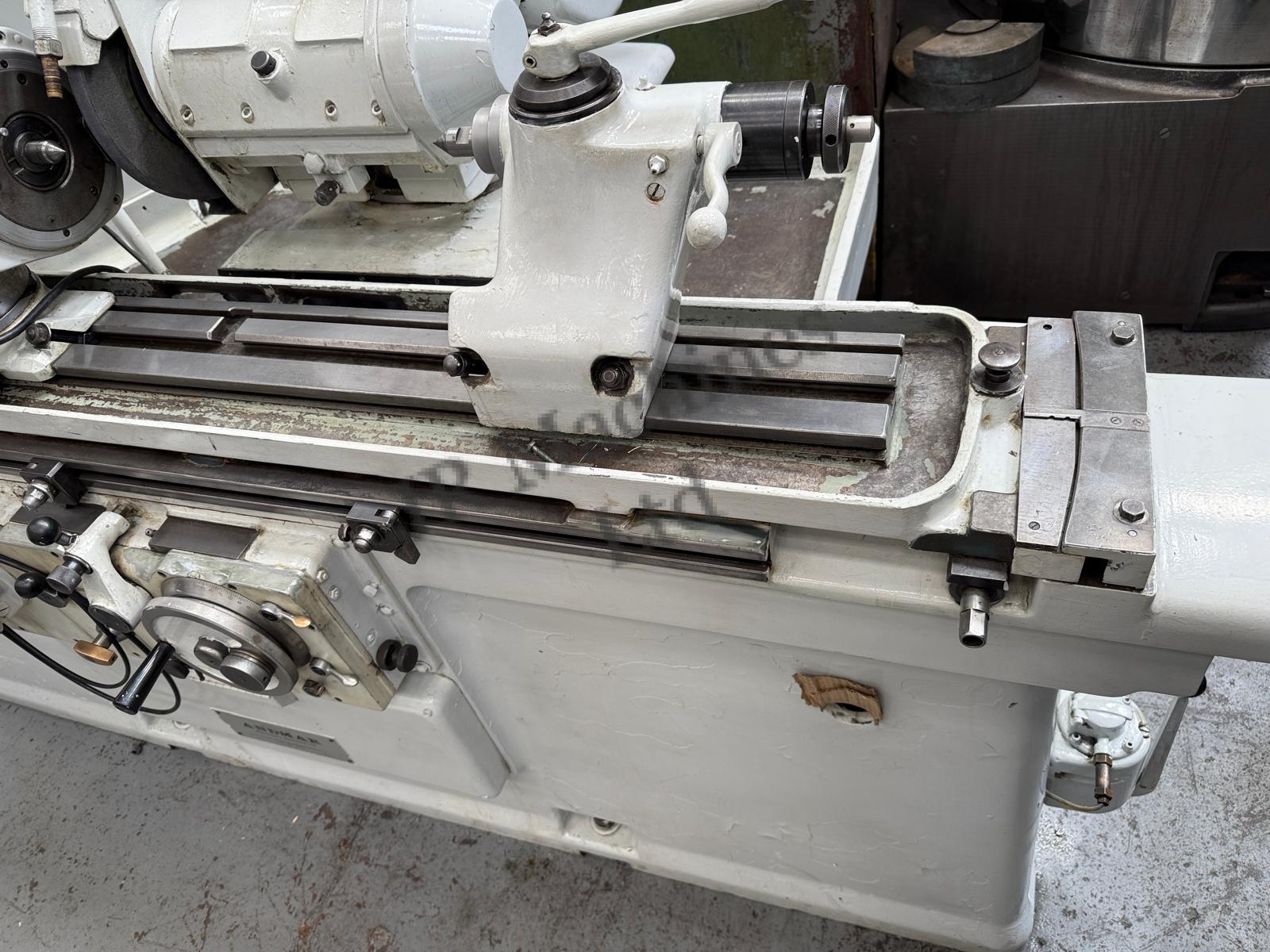

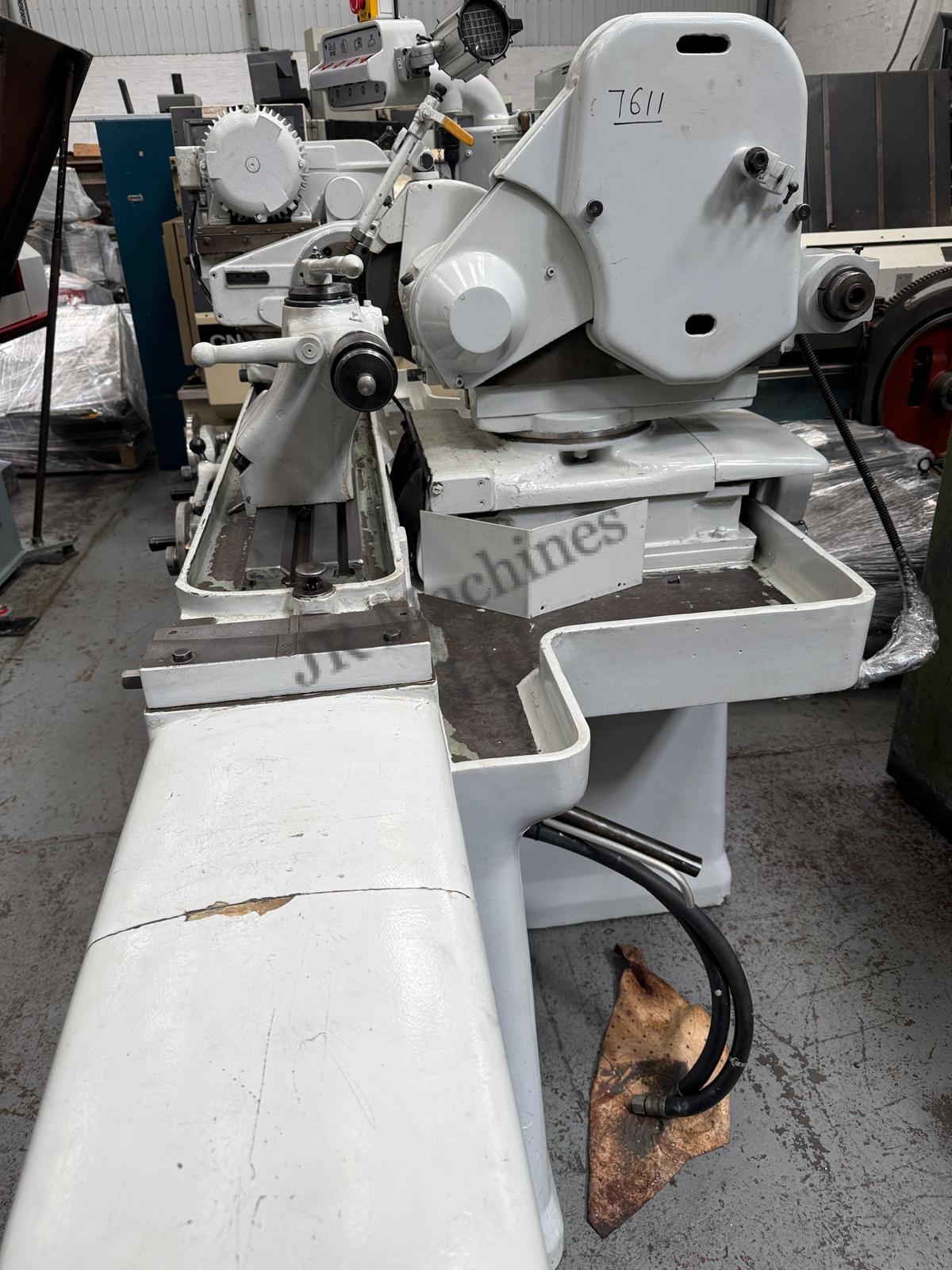

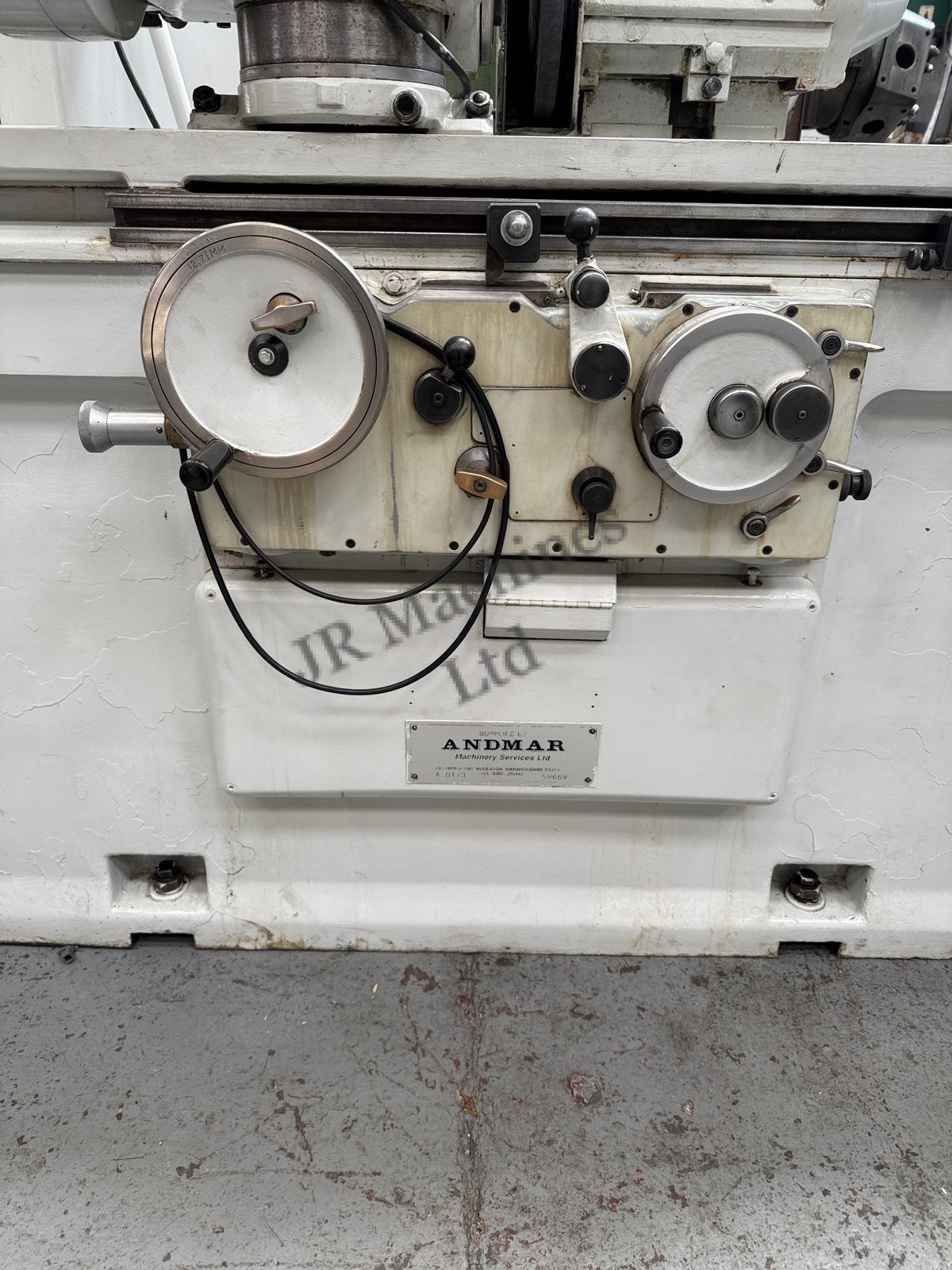

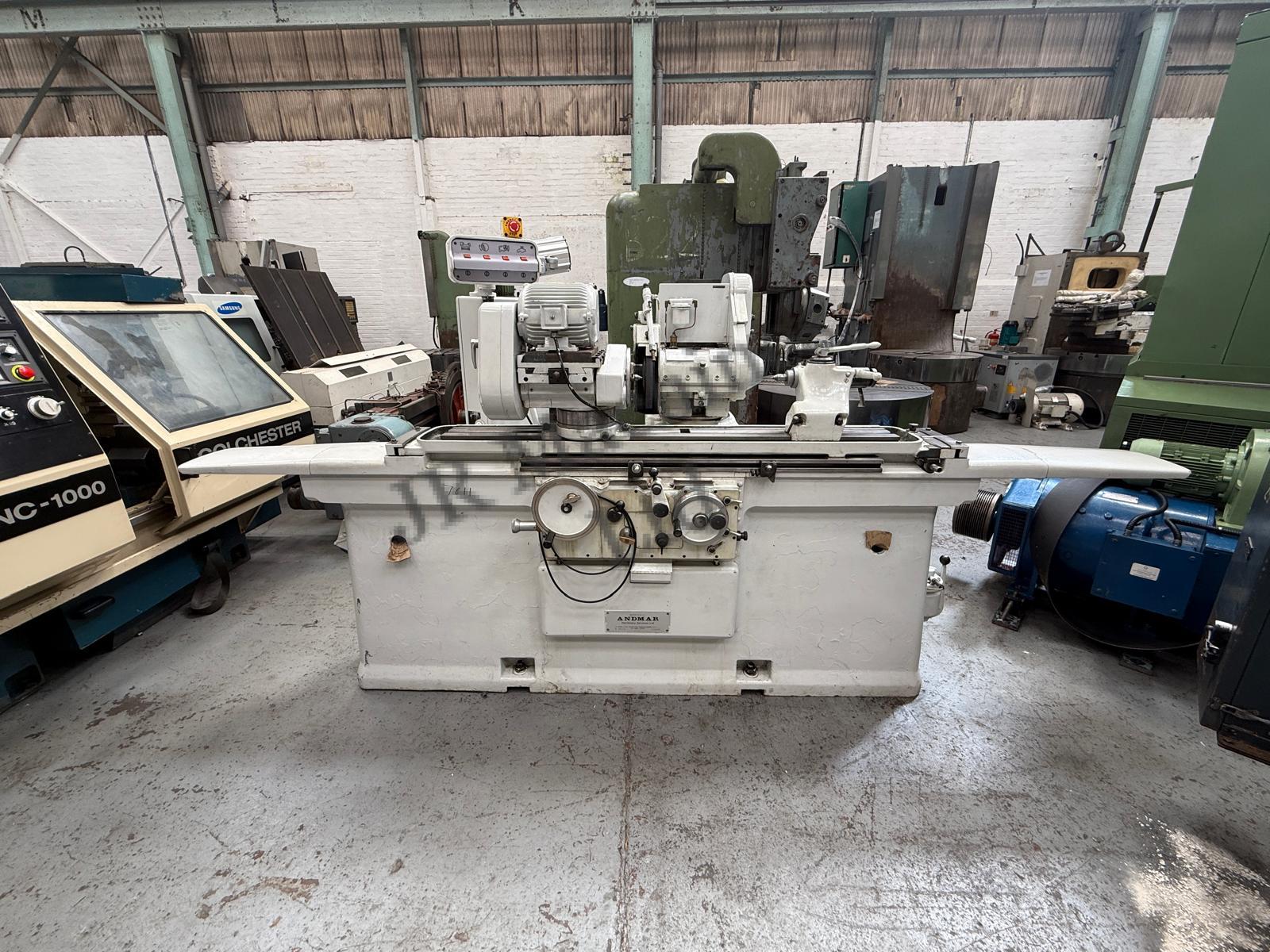

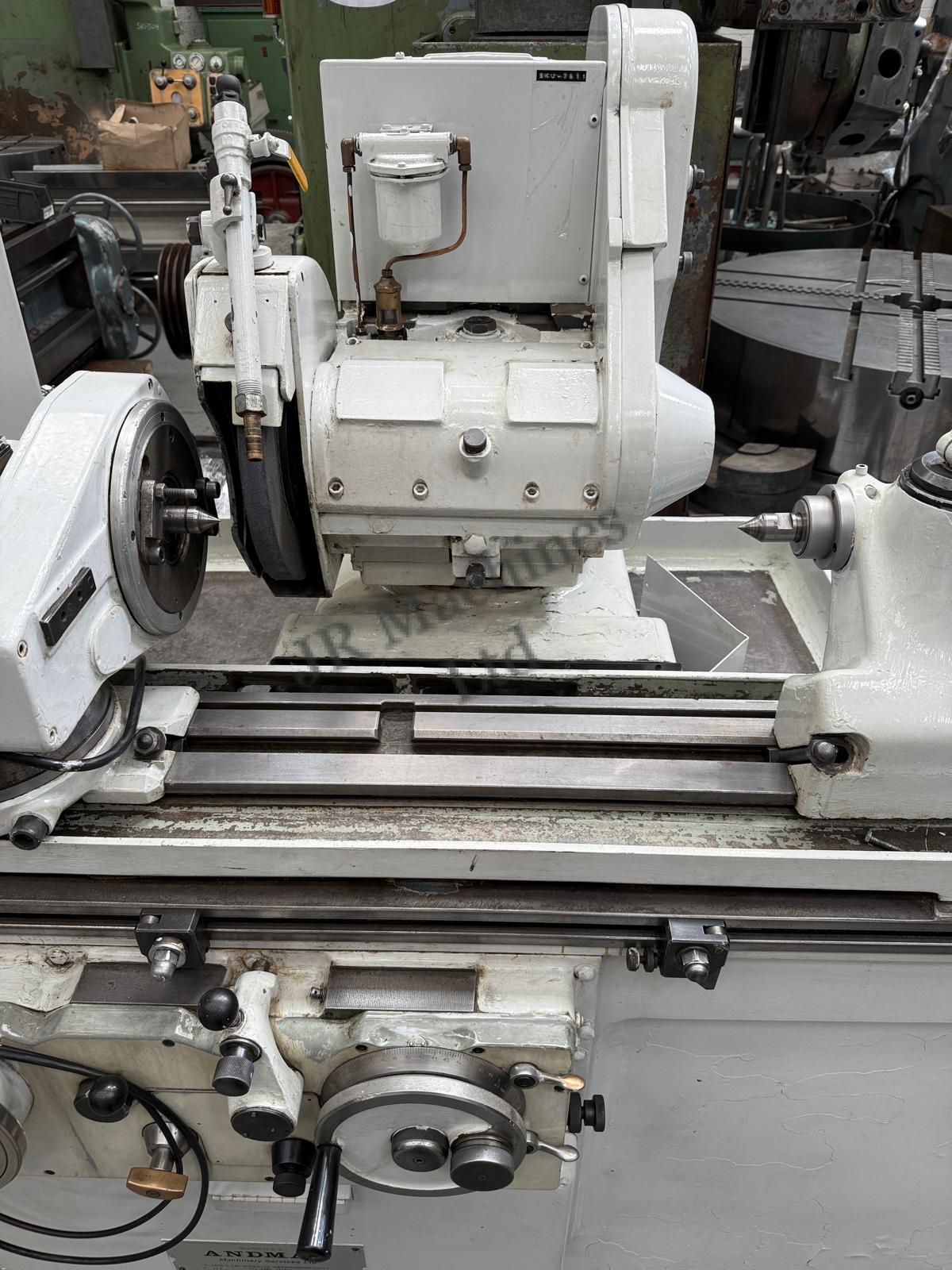

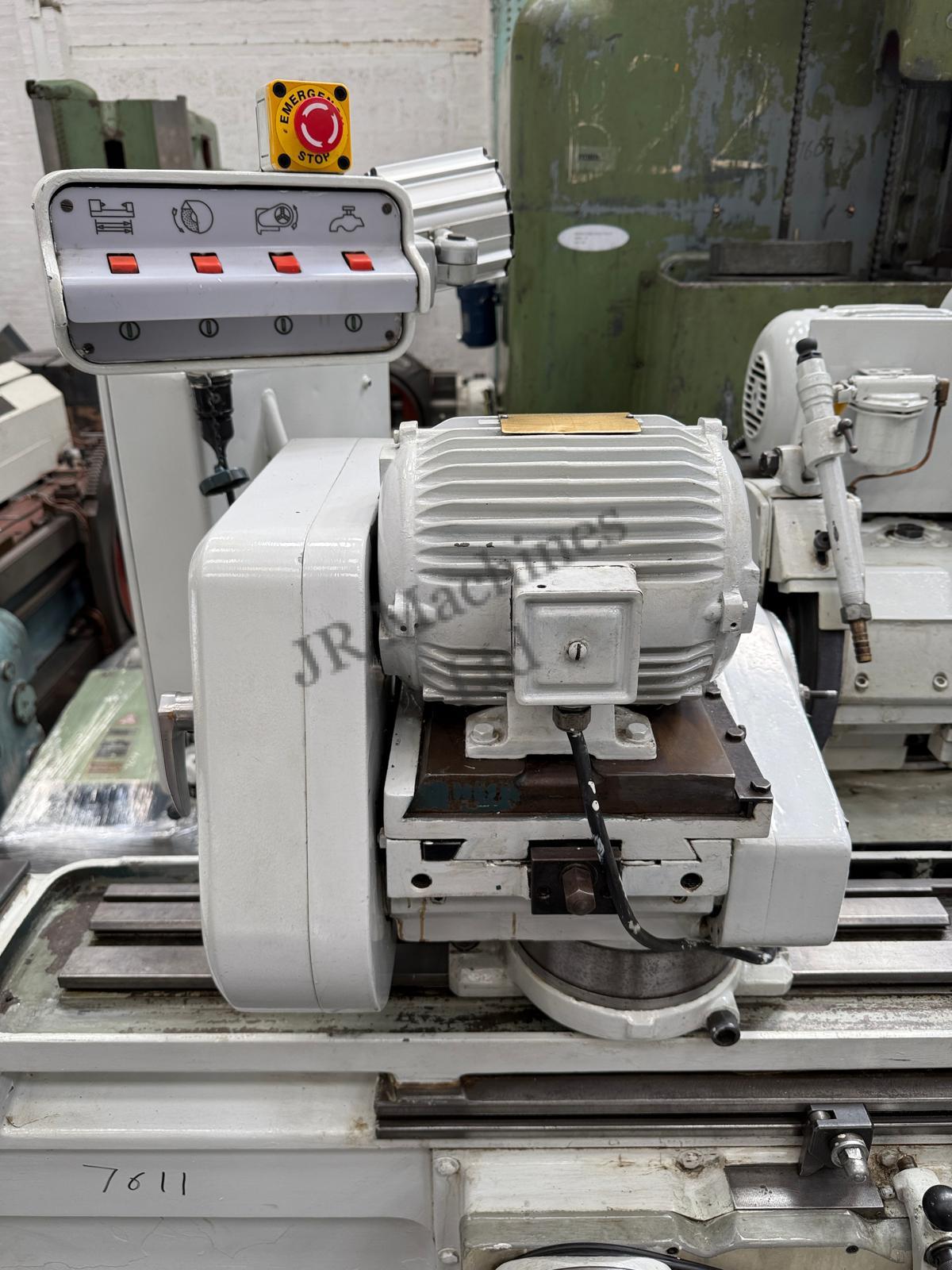

The Jones & Shipman 1307 Universal Cylindrical Grinder is a high-precision grinding machine designed for both external and internal cylindrical grinding applications. The machine is capable of grinding between centres or using a chuck, making it suitable for a wide range of components such as shafts, rollers, and precision parts. It features a hydraulically driven table with variable speed, along with a swivelling workhead and table for taper grinding. Widely used in toolrooms, aerospace, automotive, and general engineering industries.
| Specifications | Details |
| Machine Type | Universal Cylindrical Grinder |
| Model | 1307 |
| Grinding Capacity | 14” -40” |
| Swing Over Bed | 14” |
| Distance Between Centres | 1000mm |
| Grinding Wheel Size | 7″-12” |

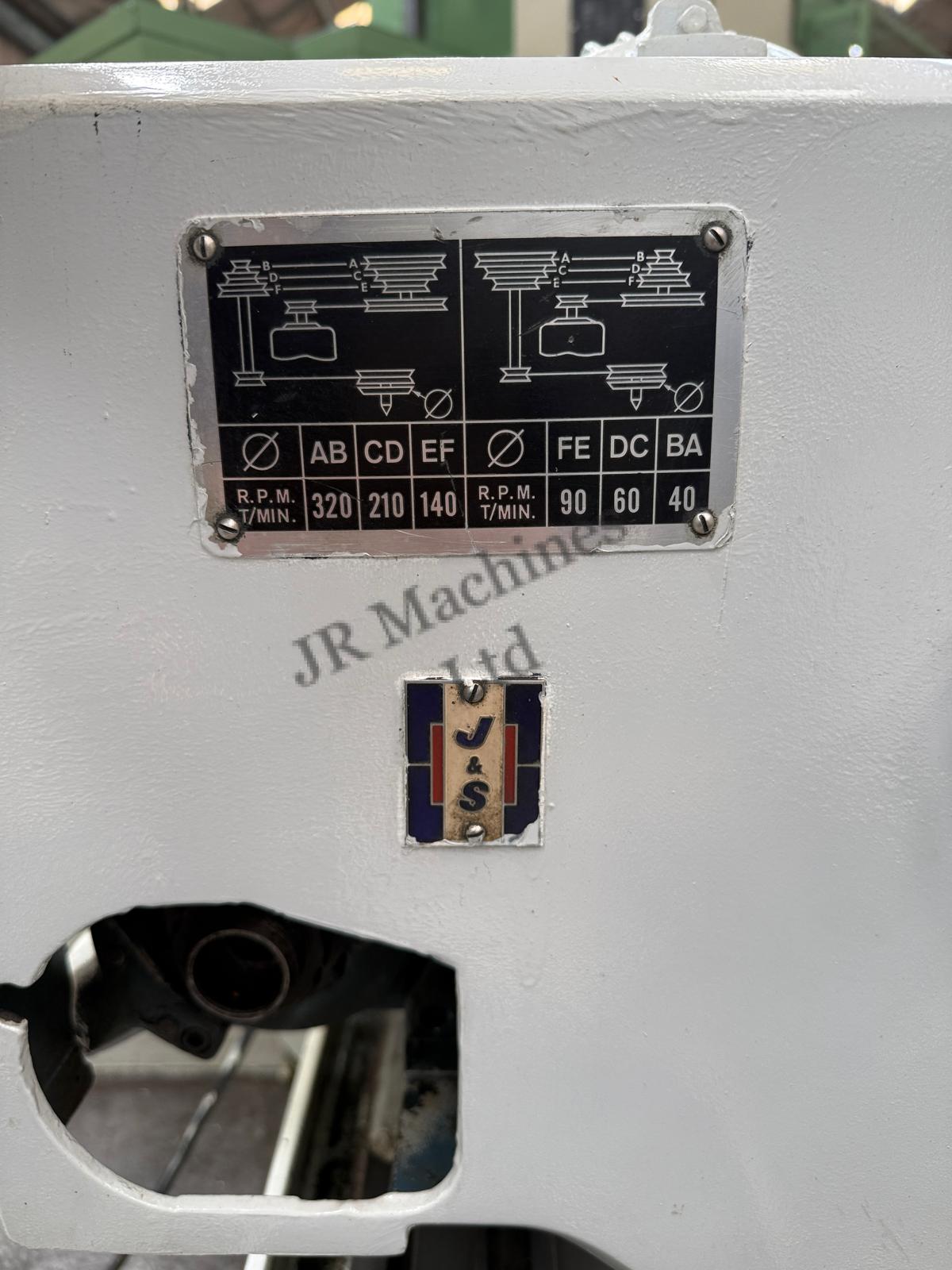

| Wheelhead Speed | 1750-2300RPM |
| Internal Grinding / External Grinding | Available |
| Motor Power | Approx. 4 kW |
