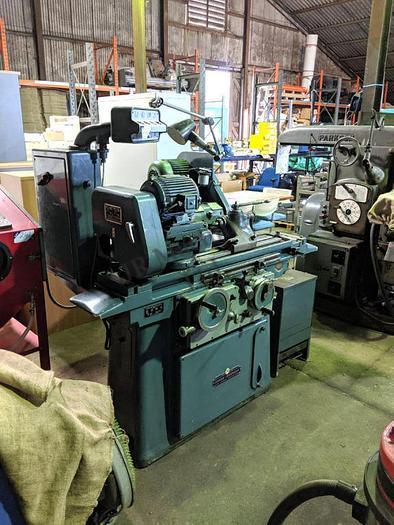

The Jones & Shipman 1311 EIT Hydraulic Universal Grinder is a precision grinding machine suitable for various applications. With its hydraulic control system, it delivers smooth and accurate grinding results on a wide range of materials. Easy to operate and maintain, it’s a reliable choice for machining tasks in industries.
Chuck od: 8”
Swing :10”(254mm)
Distance bet. centres :18”(457mm)
Adjustment of table : 20°
internal grinding capacity : Od- 19 to 50mm
Grinding wheel std. : 12”x1”x5”(300x25x127mm)
Wheel speed : 1750-2300rpm
Cross transverse of wheel head :7” (178mm)
Top slide adjustment : 4 1/8” (105mm)
Swivelling base: 90° clockwise- 70°anticlockwise
Floor space required : 2165mm x 1310mm
Net weight : 1750kg
10″ cap x 18″ b.c.,
double swivel wheelhead,
swivel workhead,
internal spindle,

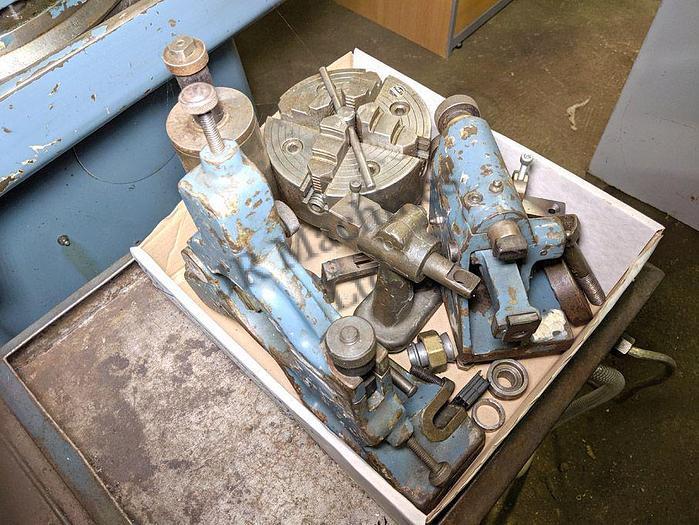

4 jaw chuck,
2 & 3 point steadies,
wheel dresser,
coolant, lighting
