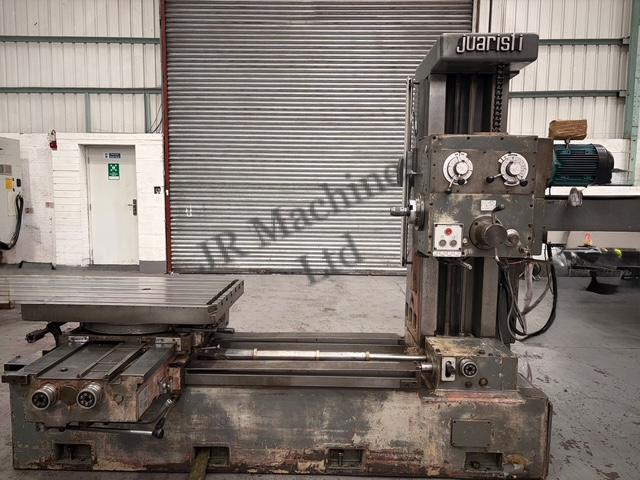

The JUARISTI MDR70 is a robust table-type horizontal boring machine designed for precision machining of medium to large components. Manufactured in Spain, JUARISTI machines are known for their rigidity, accuracy, and long service life in demanding industrial environments. The MDR70 features a 70 mm spindle and versatile table configuration, allowing efficient operations such as boring, drilling, milling, and facing.
| Specifications | Details |
| Machine Type | Table Type Horizontal Boring Machine |
| Model | MDR70 |
| Table Rotation | 900mm x 695mm |
| Spindle Diameter | 70mm |
| Spindle Speed Range | 1400RPM |

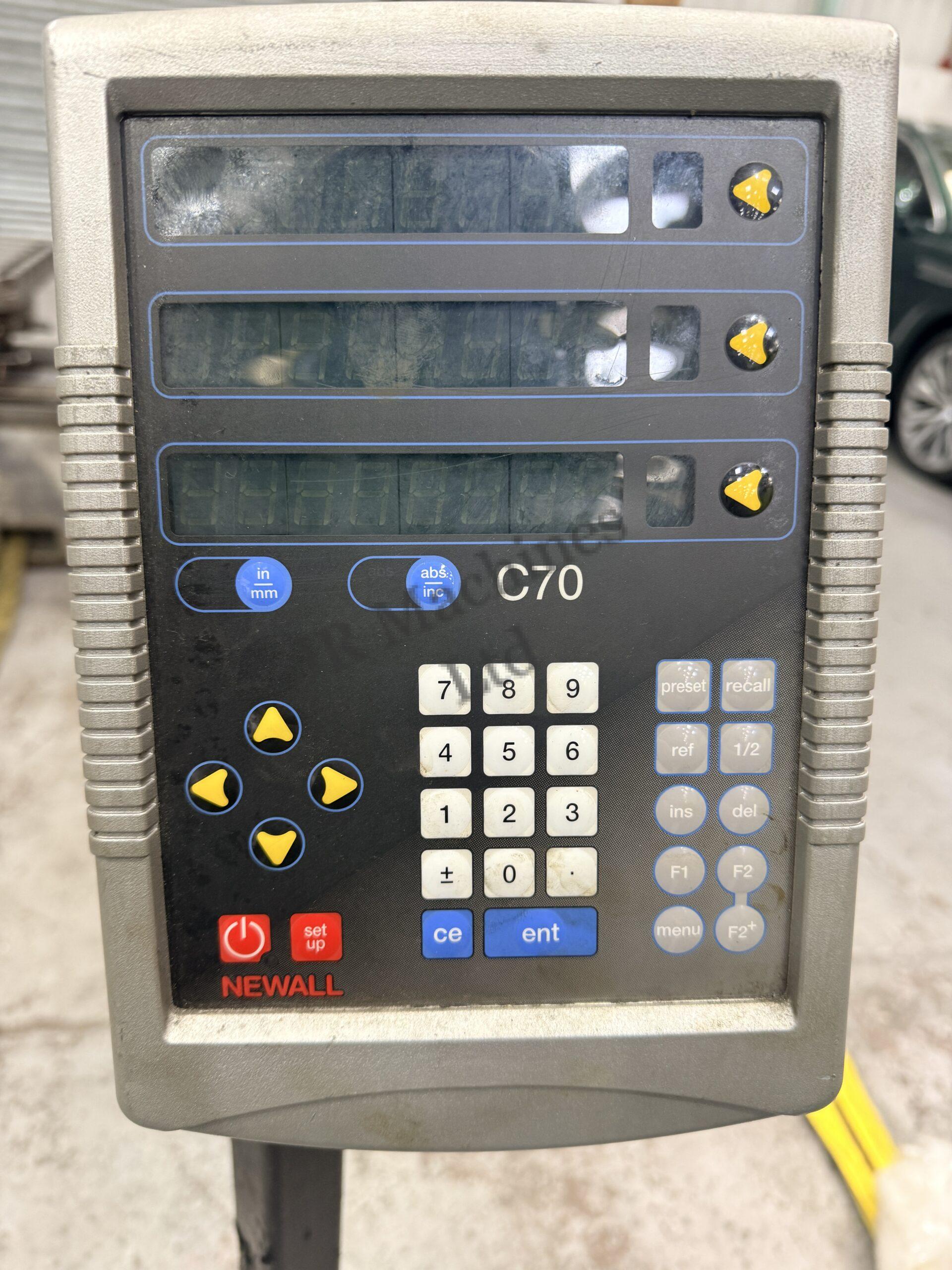

| Control Type | Newell C70 DRO |
| Wheelhead Speed | 2000 -2050RPM |
| Travel Axis length | X- 1200 mm Y- 1000 mm, Z -1400 mm |
| Spindle Motor Power | 4 -4.1kW |
