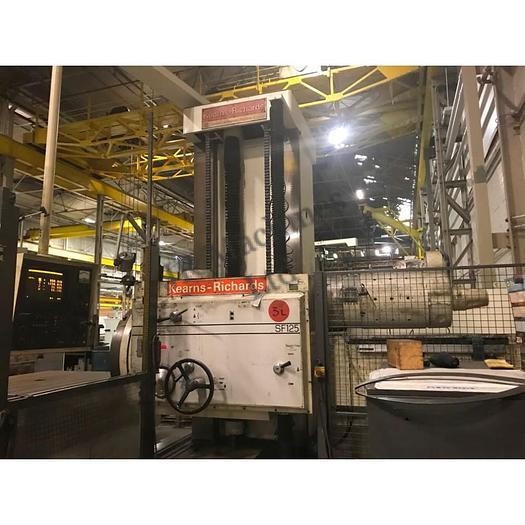

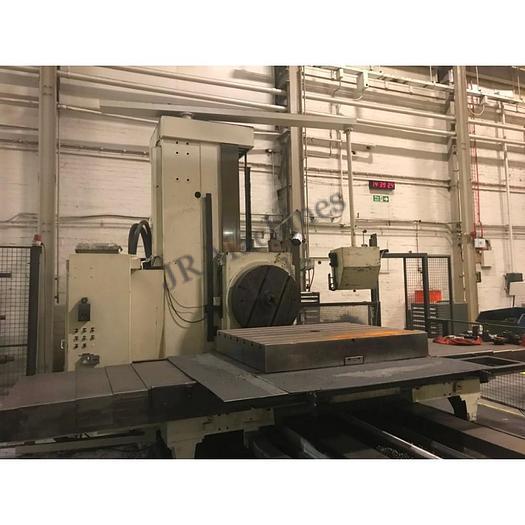

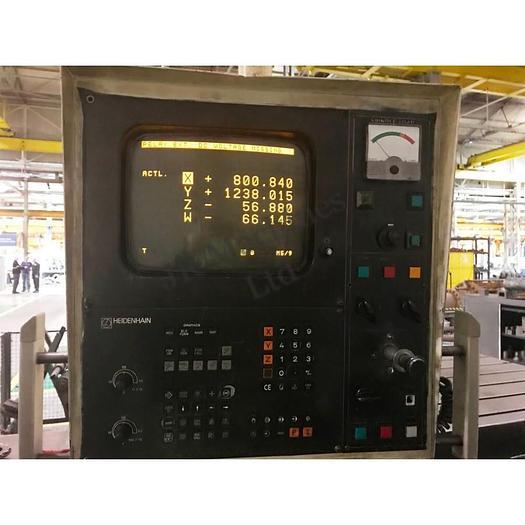

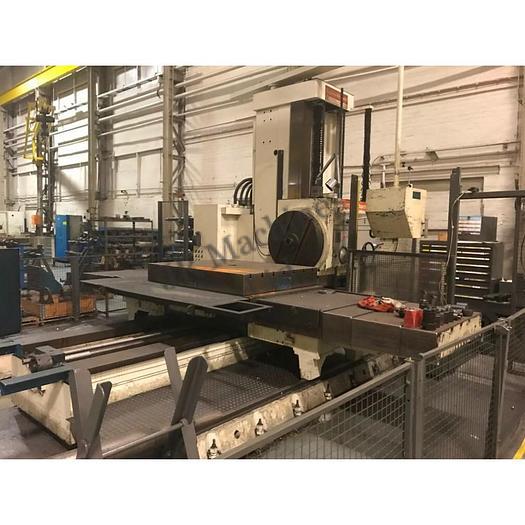

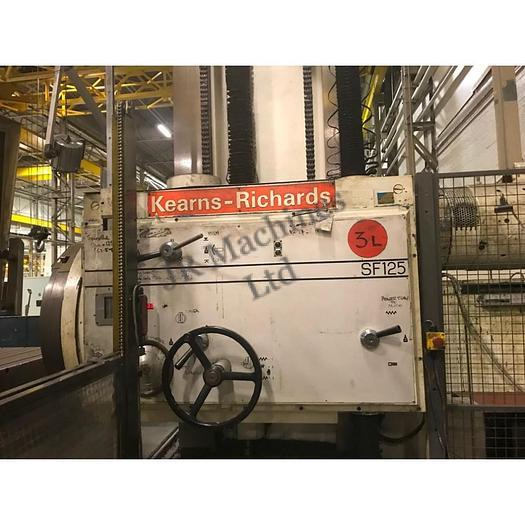

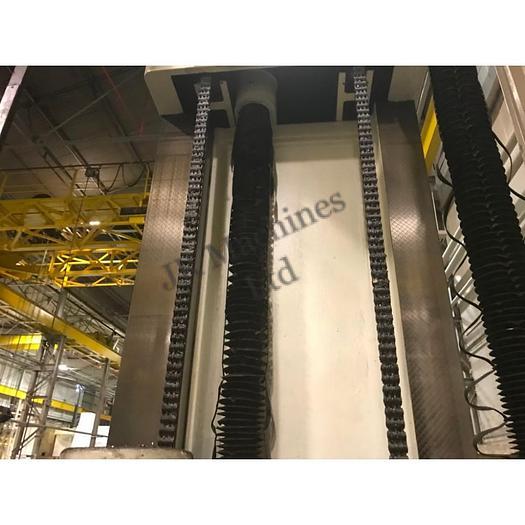

The Kearns Richards SF125 CNC Table Type Horizontal Borer, controlled by Heidenhain TNC360, is a powerful machining center. Ideal for industrial use, it offers versatility and precision in horizontal boring operations. With advanced controls, it ensures efficiency and accuracy, facilitating smooth production processes in various manufacturing applications.
Spindle Dia. 125mm
Spindle Taper 50 ISO
Spindle Travel 750mm
Spindle Speeds 22 – 1120 rpm
Facing Head Dia 820 mm
Facing Head Slide Stroke 190 mm

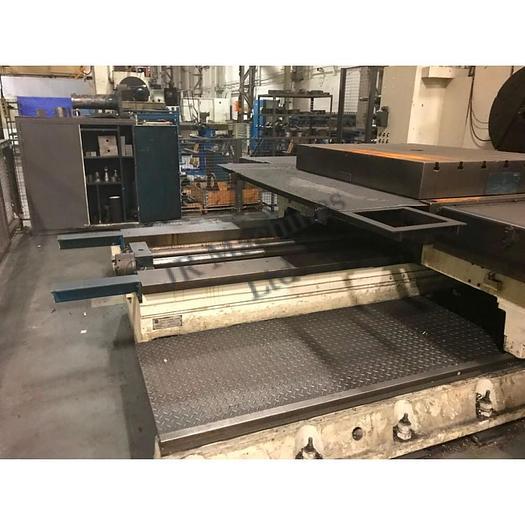

Table Size 1200 mm x 1500 mm
Longitudinal Travel 1200 mm
Cross Travel 1600mm
Vertical Travel 1500mm
Facing head speeds 4.5 – 224 rpm.
Main motor 25 HP.
Feed motor 10HP.
Retrofitted 1994
