The Mazak H-415 CNC is a high-performance horizontal machining center (HMC) equipped with twin pallets, each measuring 400x400mm. Controlled by Mazatrol Plus, it supports both conversational and ISO programming. With a swarf conveyor, 32-tool automatic tool changer (ATC), and full B axis, it ensures efficient and versatile machining operations.
Table size 400mm x400mm
Number of pallets 2
Travel-X axis/ Y axis/ Zaxis 560mm x 510mm x 510mm
B axis rotation 360°
Max. OD 610mm
Max. height 600mm
Max. weight on pallete 400 KG
Spindle motor power 7.5 KW
Spindle taper ISO40
Spindle speed 35-10000 rpm
Dimensions(width/depth/height) 3850mm/2490mm/2429mm
Machine weight 9150KG

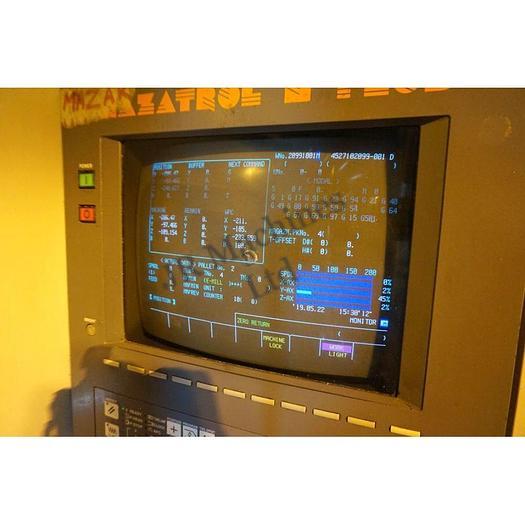

Mazatrol Plus control, Mazatrol Conversational & ISO programming,

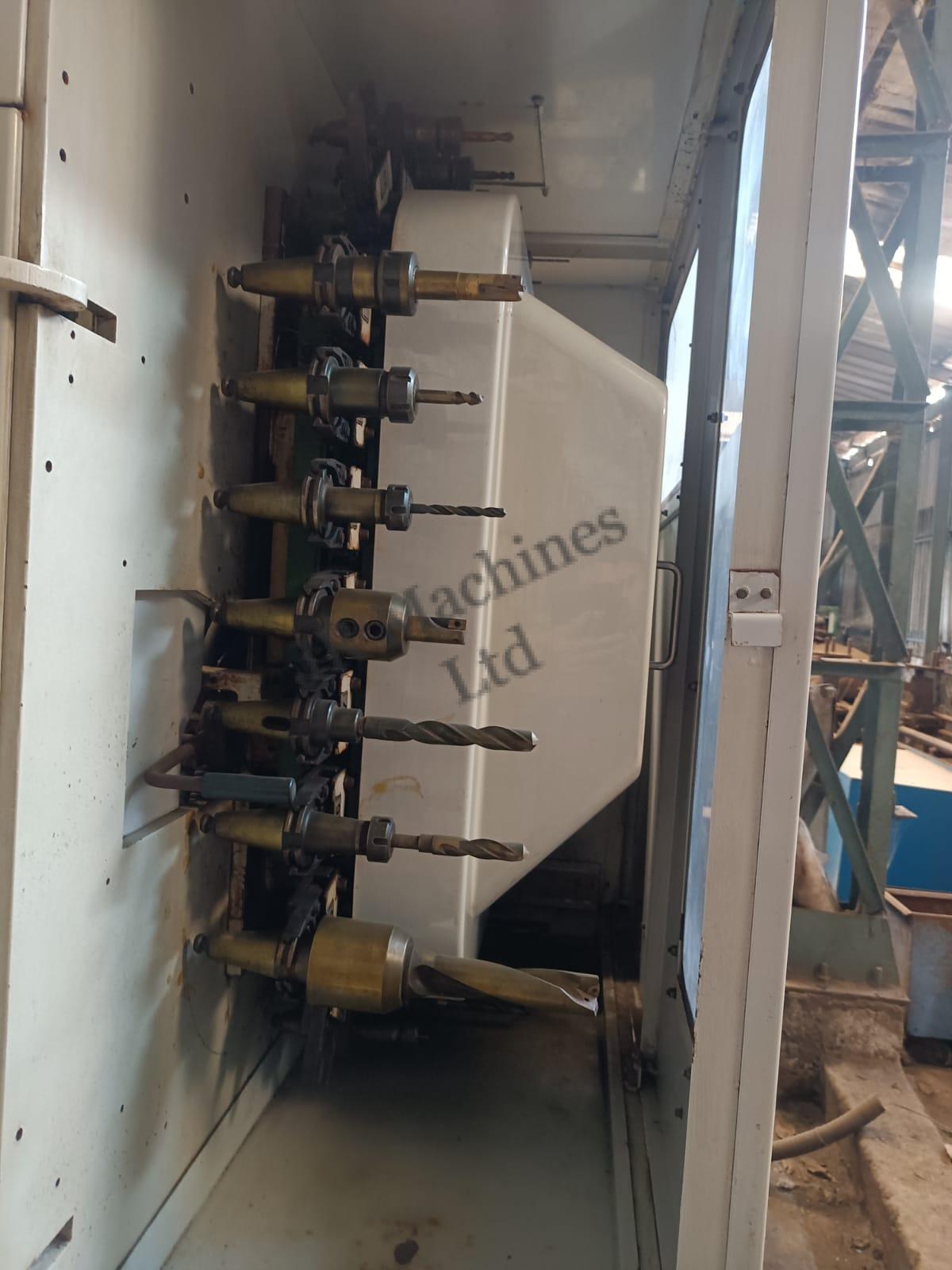

Swarf conveyor, 32 tool ATC, Full B axis,
