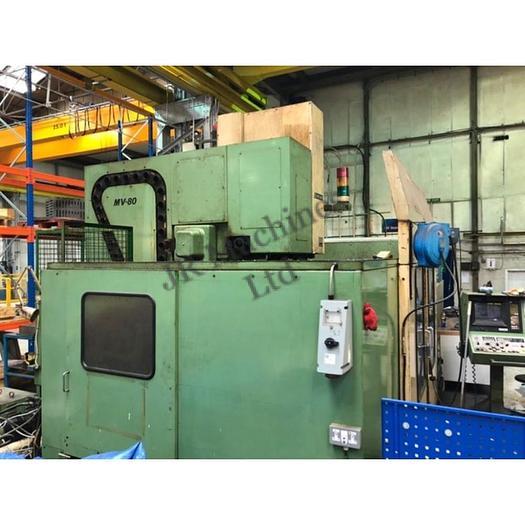

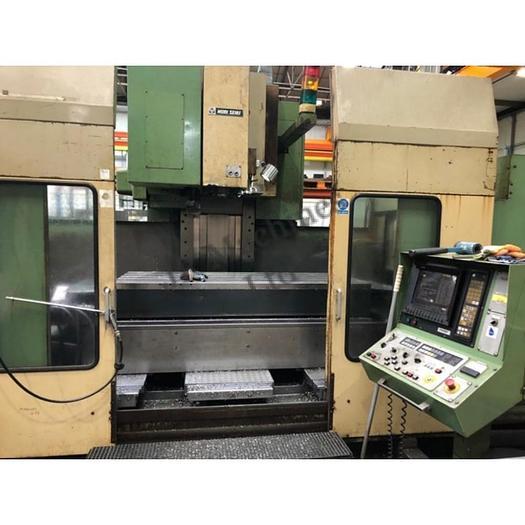

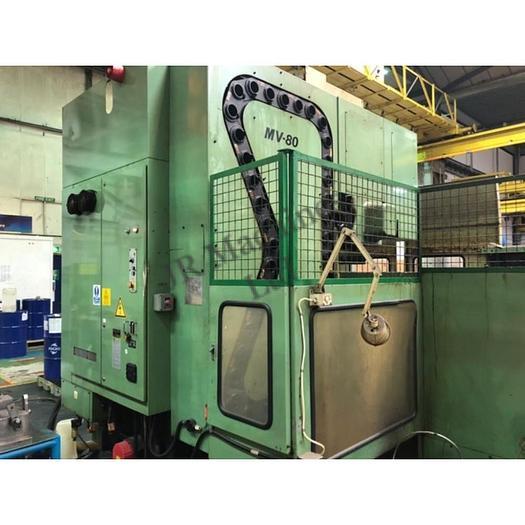

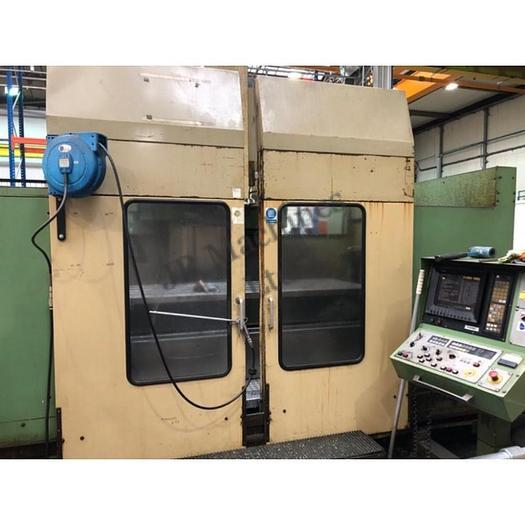

The Mori Seiki MV80 Vertical Milling Machine with Pallet Changer (Side Load Type) is a precision machining tool designed for efficient and versatile milling operations. Its automated pallet changer enables seamless material handling, enhancing productivity. The machine’s robust construction and advanced controls ensure high-performance machining in diverse industrial applications.

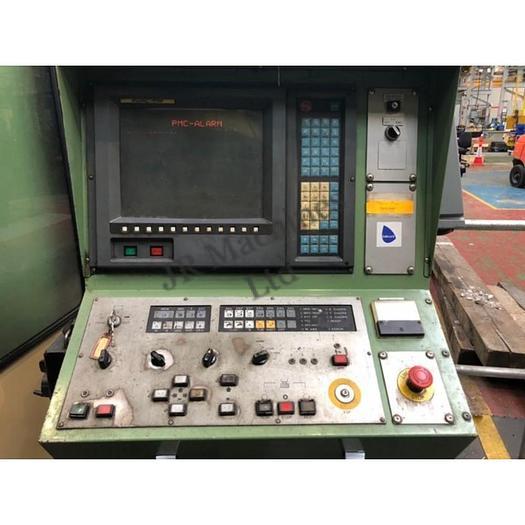

FANUC 15MA CONTROL

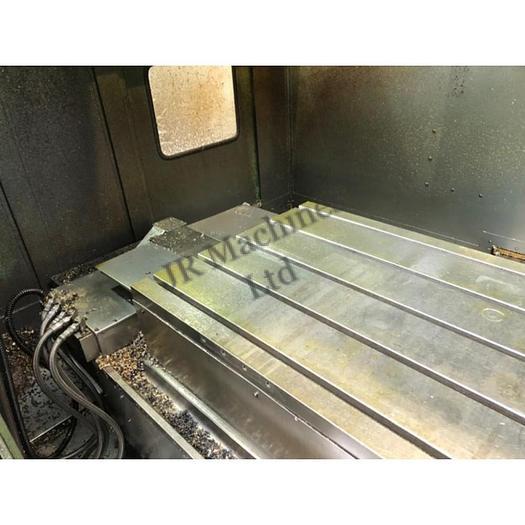

TABLE SIZE- 1900mm x 800mm
TEE SLOT 5 @ 160mm CENTRES
TEE SLOT WIDTH 18mm
MAX TABLE LOAD- 2000KG
MAX LOAD ON PALLET- 700KG
XY AXIS FEED RATES- 1- 3600 mmpm
RAPID FEED RATE- 10,000 mmpm
SPEED RANGE 10-3500rpm
X AXIS – 1524mm
Y AXIS – 800mm
Z AXIS TRAVEL OVER TABLE – 750mm
Z AXIS TRAVEL OVER PALLET – 680mm
SPINDLE MOTOR POWER- 15K
ATC- 30 TOOLS
SPINDLE NOSE TAPER – BT50
