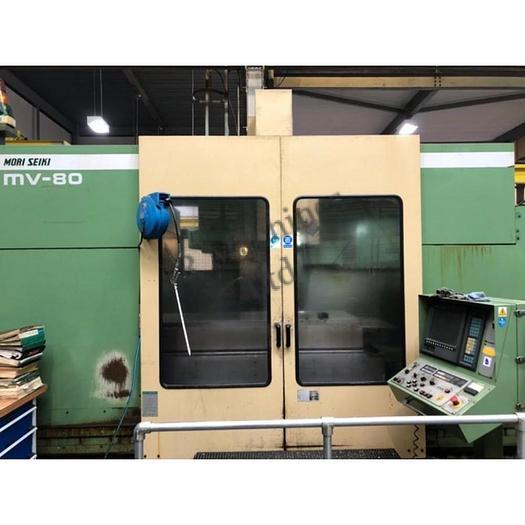

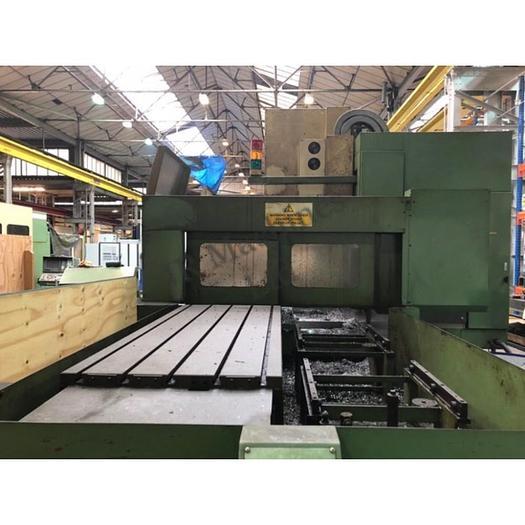

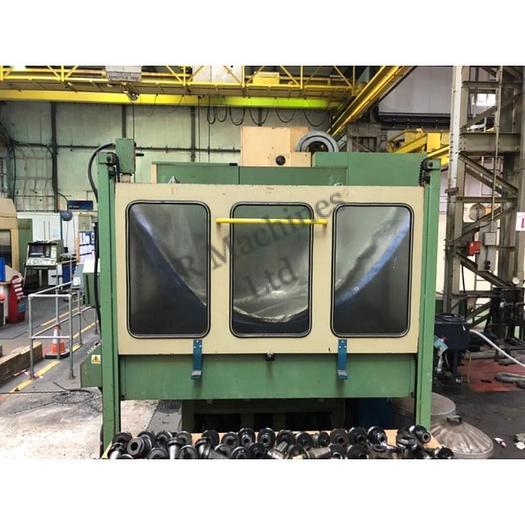

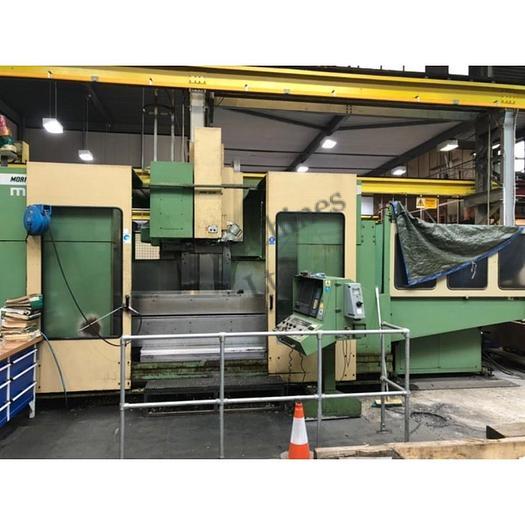

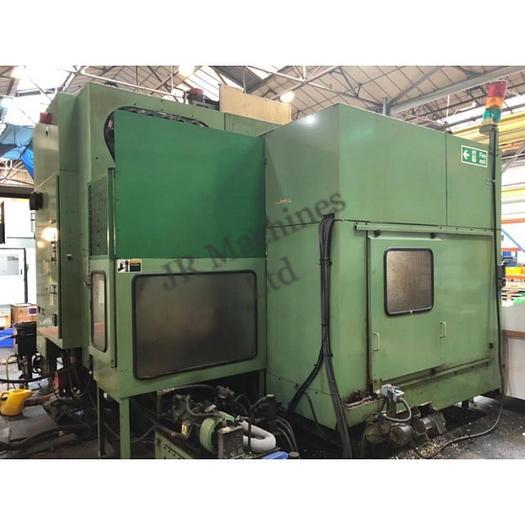

The Mori Seiki MV80 Vertical Milling Machine with Pallet Changer (Side Load Type) is a robust machining center offering high-performance milling operations. Featuring a convenient pallet changer, it enhances productivity by enabling continuous machining without interruptions. Ideal for industrial settings, it ensures efficient production of precision components with ease and reliability.

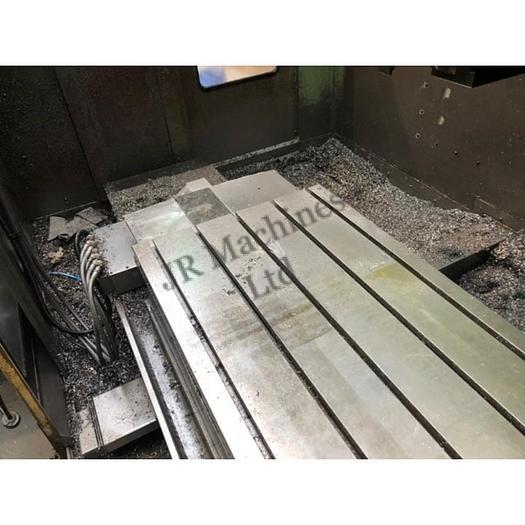

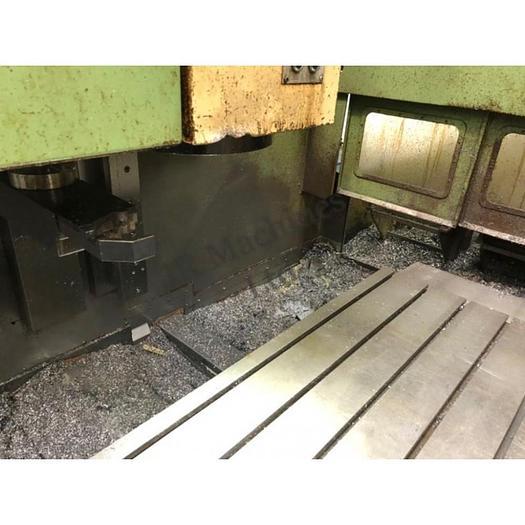

TABLE SIZE 1900mm x 800mm
TEE SLOT 5 @ 160mm CENTRES
TEE SLOT WIDTH 18mm
MAX TABLE LOAD 2000KG
MAX LOAD ON PALLET 700KG
XY AXIS FEED RATES 1-3600mmpm
RAPID FEED RATE 10,000mmpm
SPEED RANGE 10-3500rpm
SPINDLE MOTOR POWER 15K
ATC 30 TOOLS
SPINDLE NOSE TAPER BT50

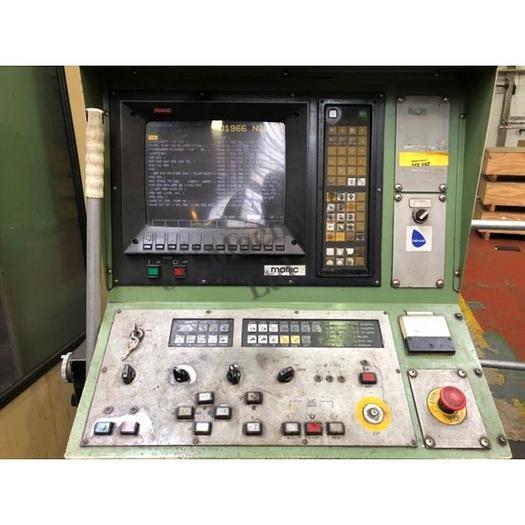

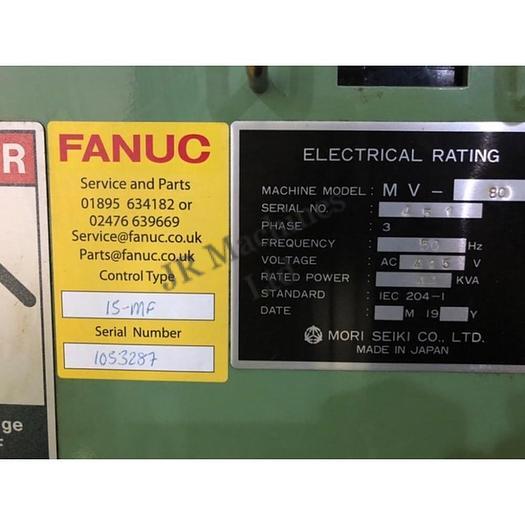

FANUC 15MA CONTROL
X AXIS – 1524mm
Y AXIS – 800mm
Z AXIS TRAVEL OVER TABLE – 750mm
Z AXIS TRAVEL OVER PALLET – 680mm
