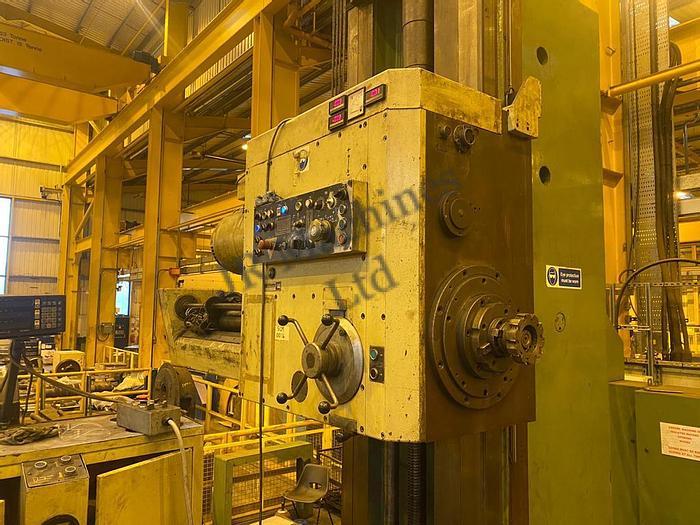

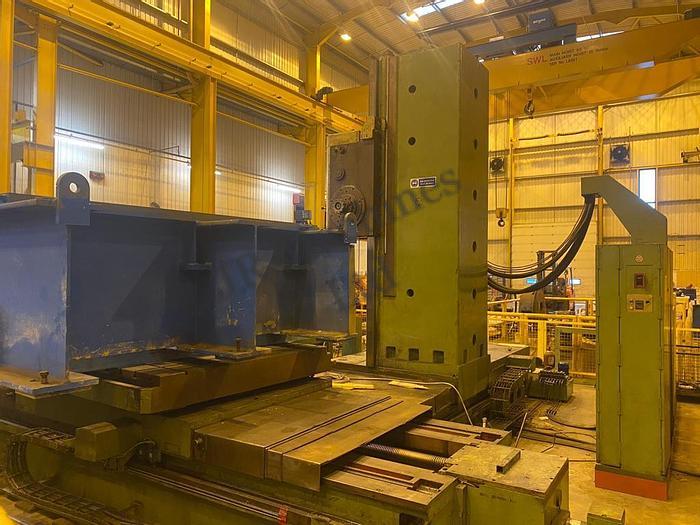

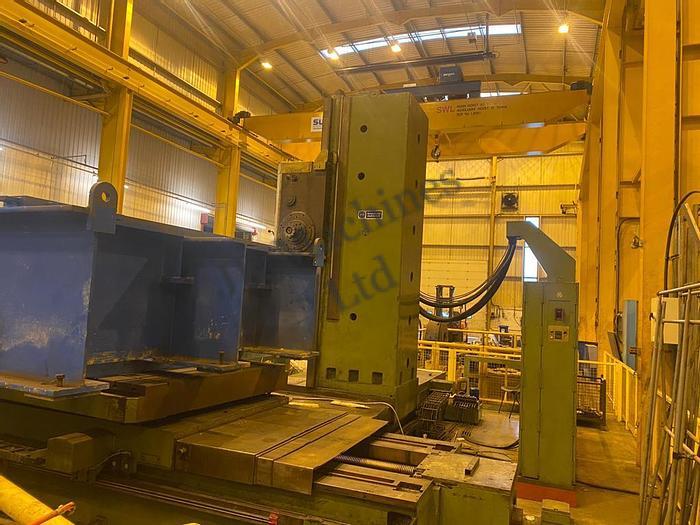

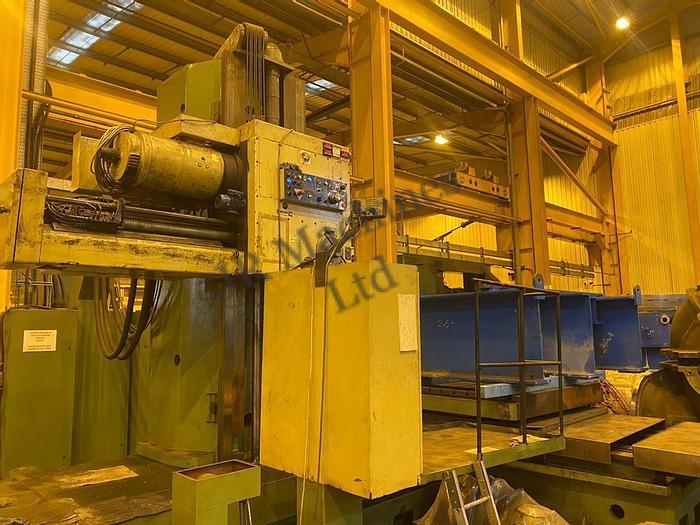

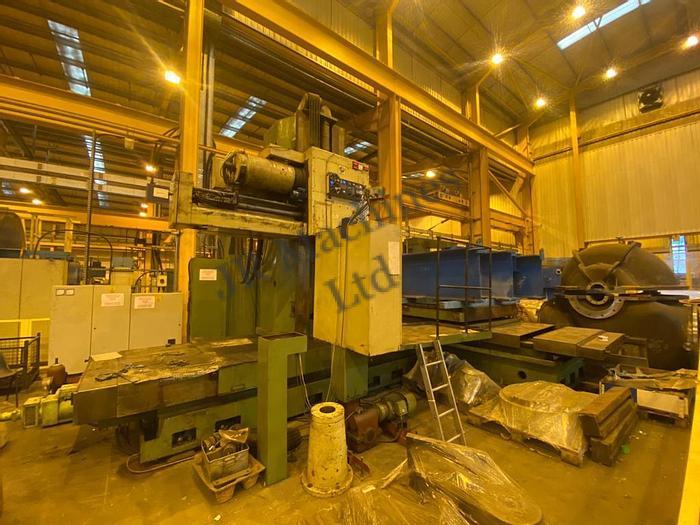

The TOS WHN 13.4 Table Type Boring Machine is used for precision machining of large parts. It features a horizontal spindle and a movable table for accurate boring, milling, and drilling operations. Ideal for heavy-duty tasks, it ensures high precision and reliability in industrial manufacturing.

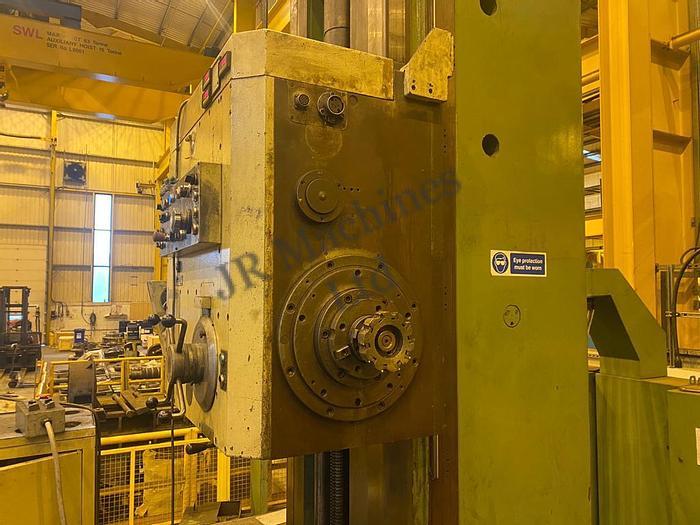

spindle diameter : 130 mm
x-travel : 2000 mm
y-travel : 2000 mm
column travel : 1250 mm

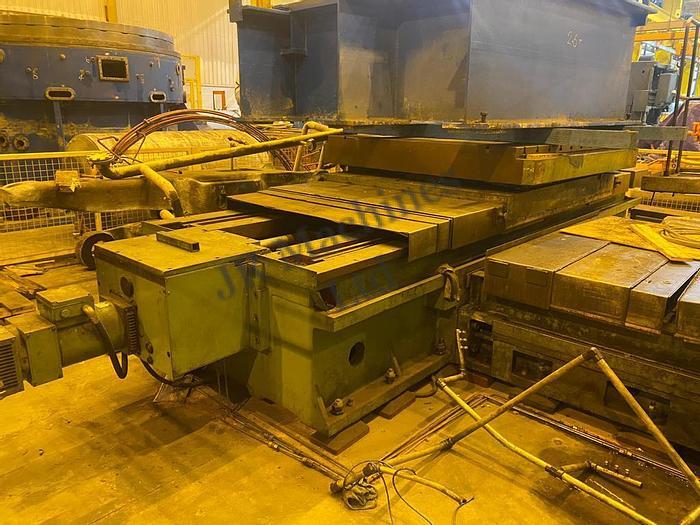

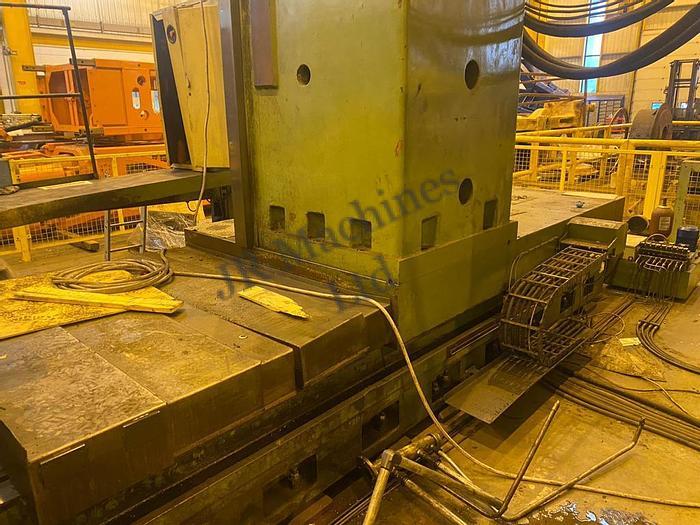

table-size : 1600 x 1800 mm
table load : 12 t
spindle motor : 34 kW
spindle turning speed range : 5-1000 U/min
spindle taper DIN : 2080 ISO 50
feed range : 1 – 3000 mm/min
table turning speeds : 1,5 min -1
rapid traverse : 6000 mm/min
column movement : Z-Achse 1250 mm
spindle stroke : 800 mm
weight of the machine : ca. 35 t
