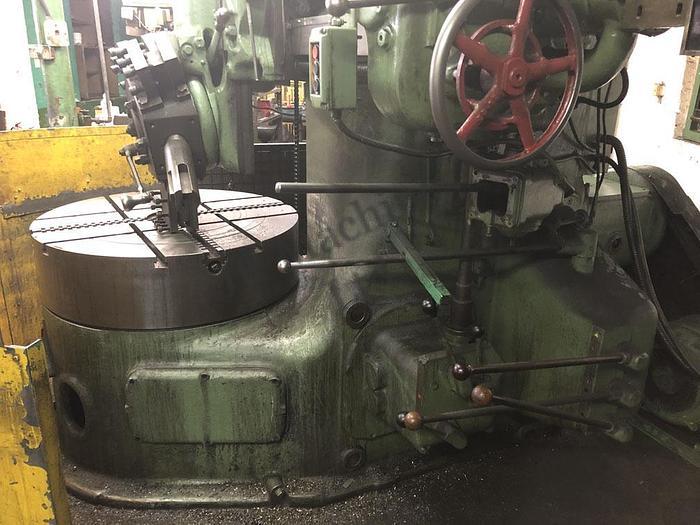

The Webster & Bennett 36” D Type Vertical Turret Lathe (VTL) is a robust and reliable machine designed for precision machining of medium-sized heavy components. It features a 36-inch rotary table with chuck jaws for secure work holding and is built with a rigid cast construction for stability during machining. The machine is typically equipped with a multi-position turret, allowing efficient operations such as turning, facing, boring, and drilling. Known for its durability and ease of operation, the D Type is well-suited for workshop and production environments.
| Specifications | Details |
| Machine Type | VTL |
| Model | 36- D Type |
| Table type | 4- Jaws Chuck |
| Table Diameter | 36” |
| Maximum swing | 42” |
| Turret Type | 5 Stations turret |
| Spindle Speed | 7.5 -167rpm |
| Chuck Speed | 9 -200rpm |
| Motor Power | 25hp |
