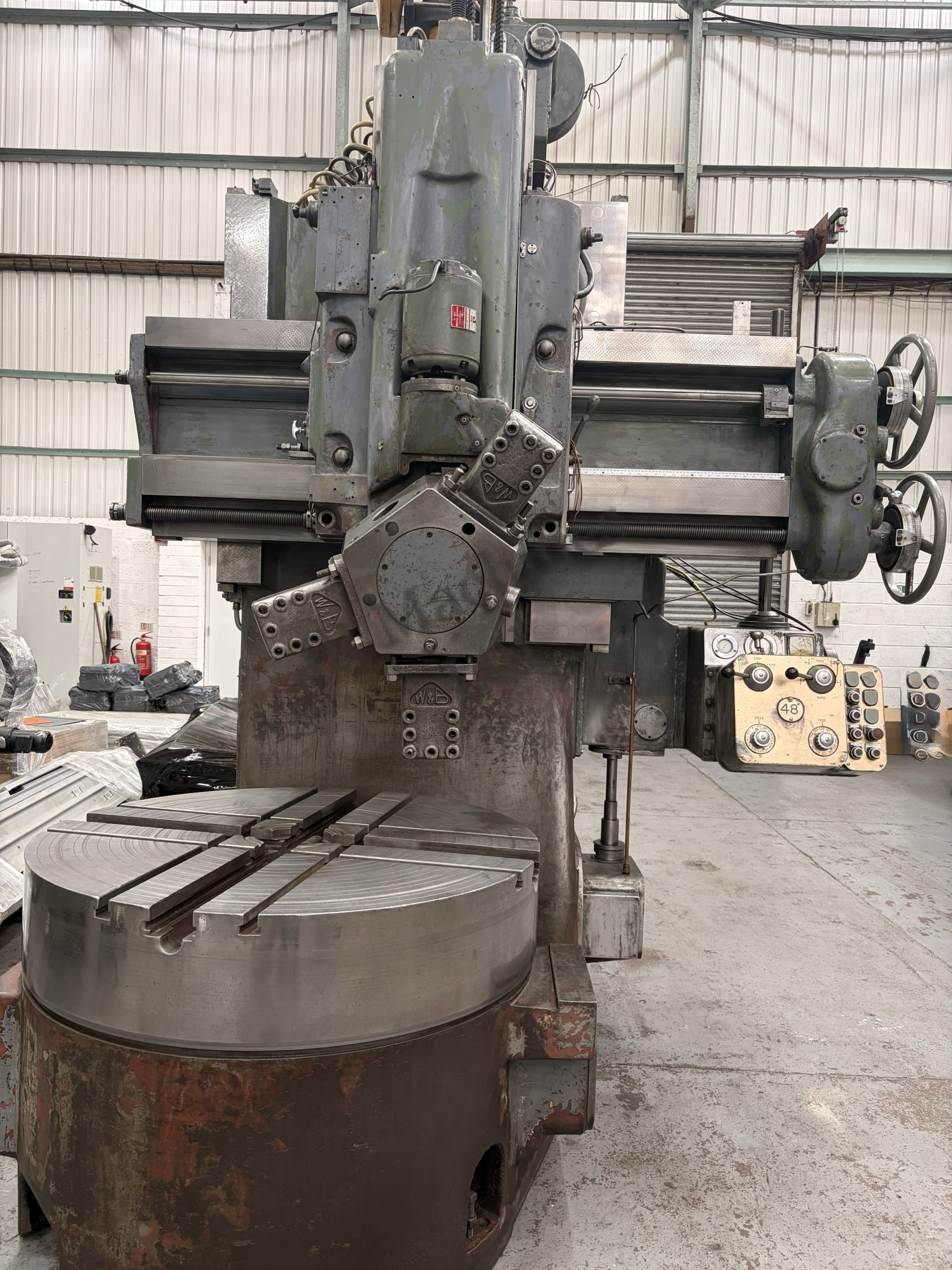

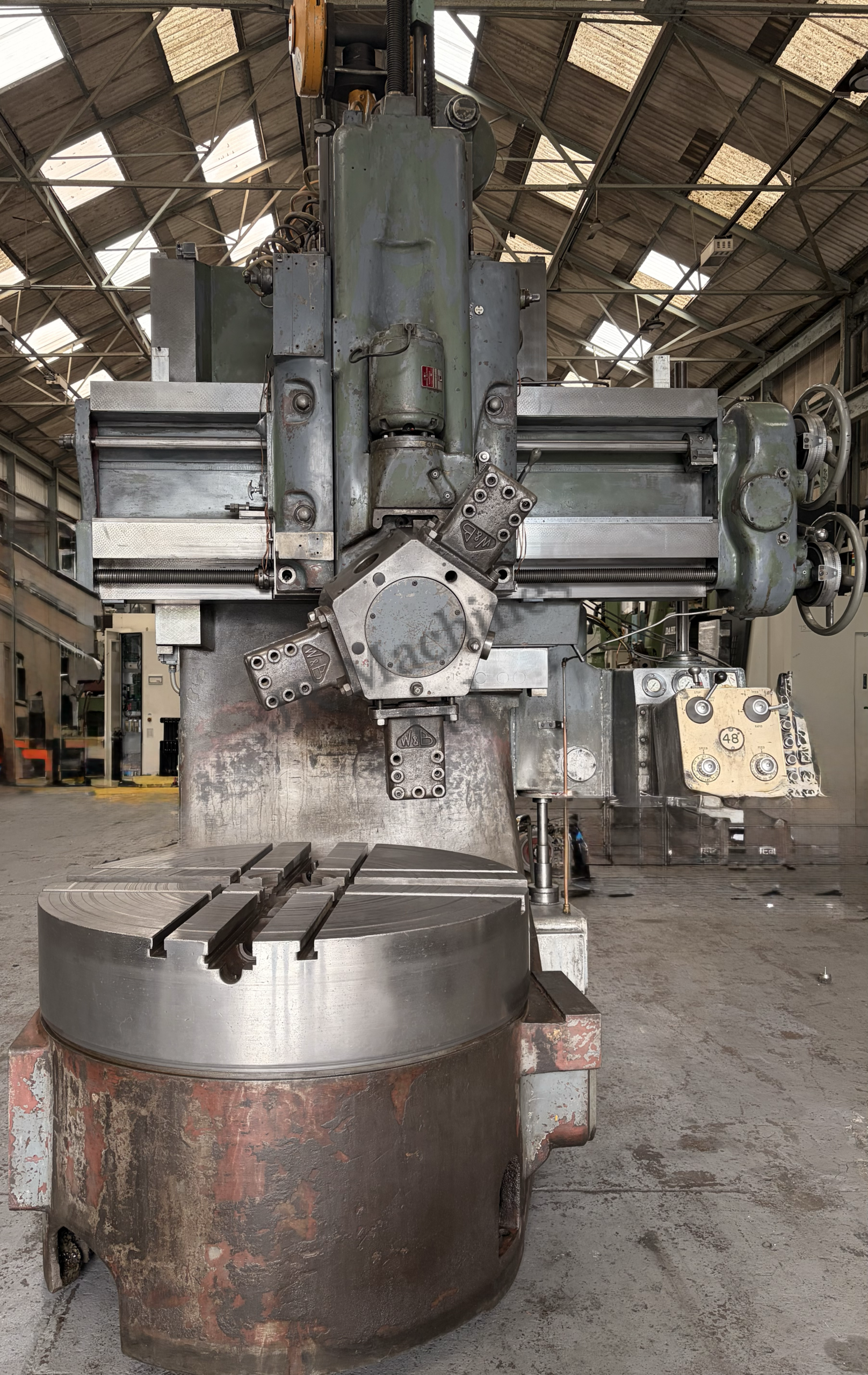

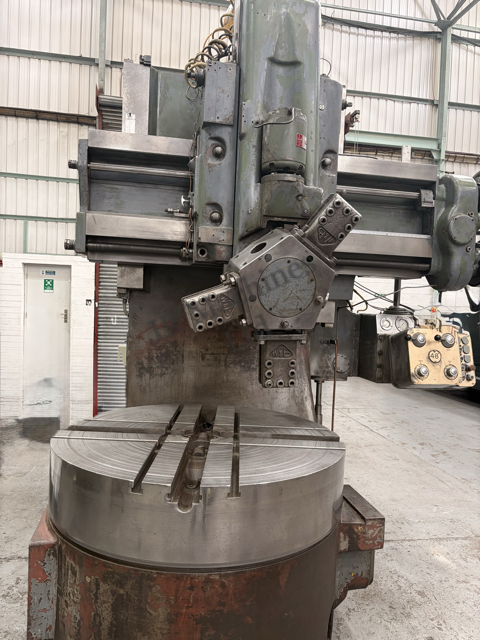

The Webster & Bennett 48” Elevating Rail Vertical Turret Lathe (VTL) is a heavy-duty conventional vertical turning and boring machine designed for machining large and heavy components with high precision and rigidity. Webster & Bennett machines are highly regarded for their robust cast iron construction, durability, and reliable performance in demanding industrial applications. The elevating rail design allows the cross rail to move vertically, enabling the machine to accommodate workpieces of varying heights and providing greater flexibility than fixed rail models. This machine is suitable for operations such as turning, facing, boring, grooving, and drilling, making it ideal for industries including heavy engineering, rail, oil & gas, power generation, and fabrication.
| Specification | Details |
| Machine Type | Conventional Vertical Turret Lathe |
| Model | 48” Elevating Rail |
| Table Diameter | 48” (1219 mm) |
| Maximum Swing | Approx. 59” – 62” (1500 – 1575 mm) |
| Maximum Height Under Rail | Approx. 1150 – 1500 mm |
| Cross Rail Vertical Travel | Approx. 559 – 965 mm |
| Turret Vertical Travel | Approx. 914 – 1040 mm |
| Turret Cross Travel | Approx. 914 mm |
| Table Speed Range | Approx. 4.5 – 187 RPM |
| Feed Range | 0.0025” – 0.250” per rev |
| Main Motor Power | Approx. 25 – 40 HP |
