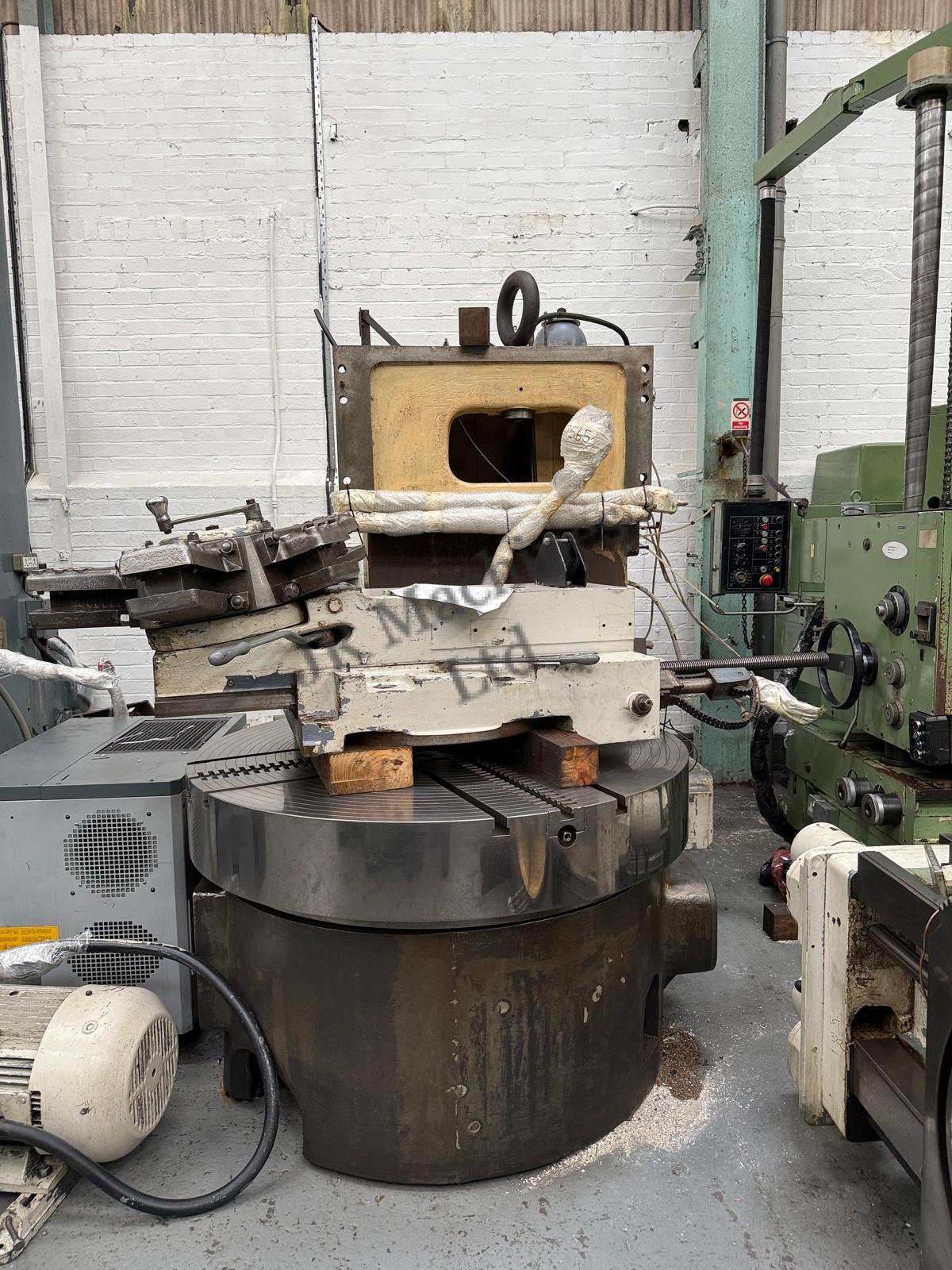

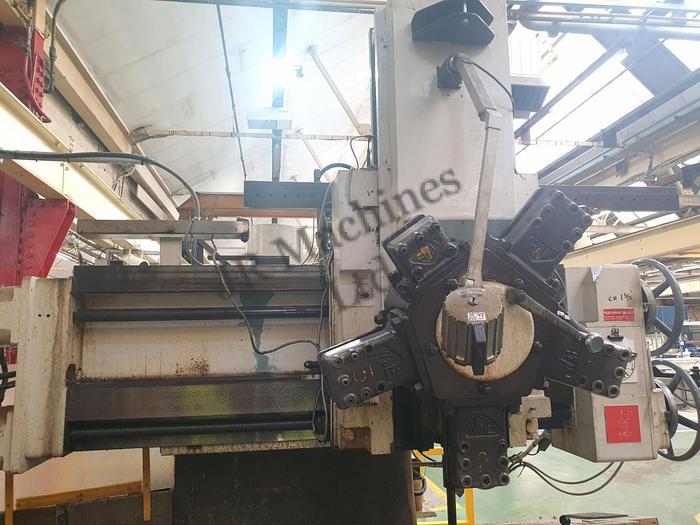

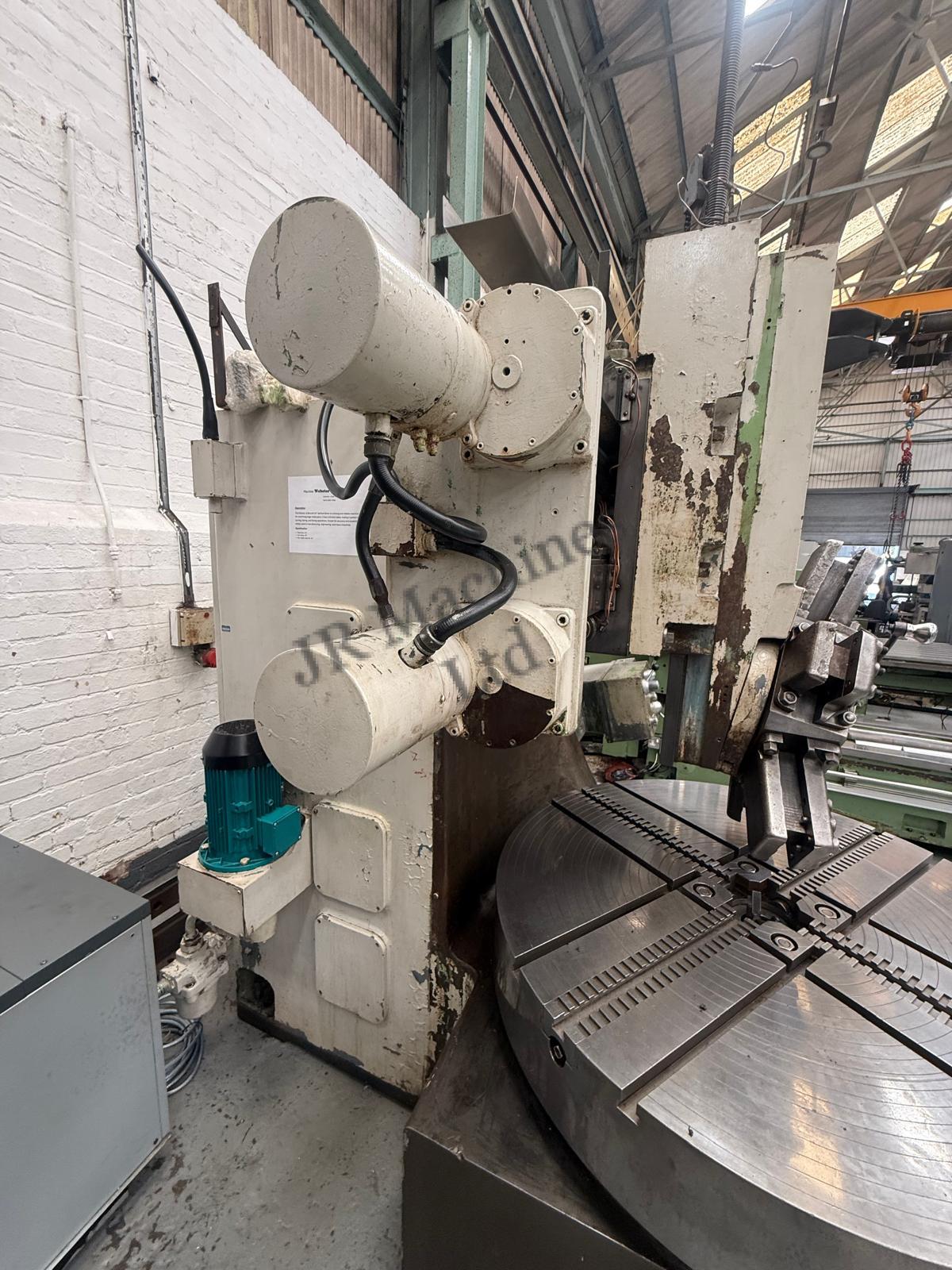

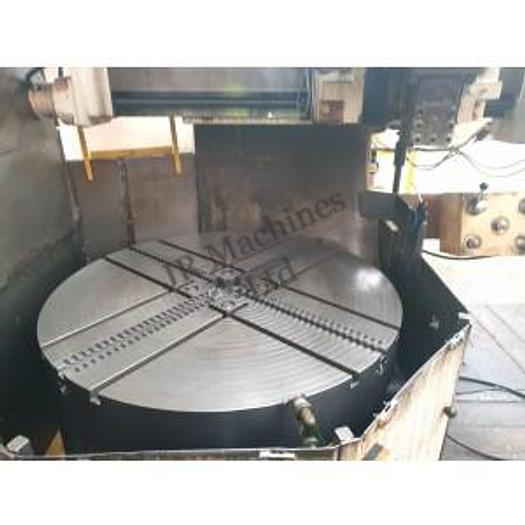

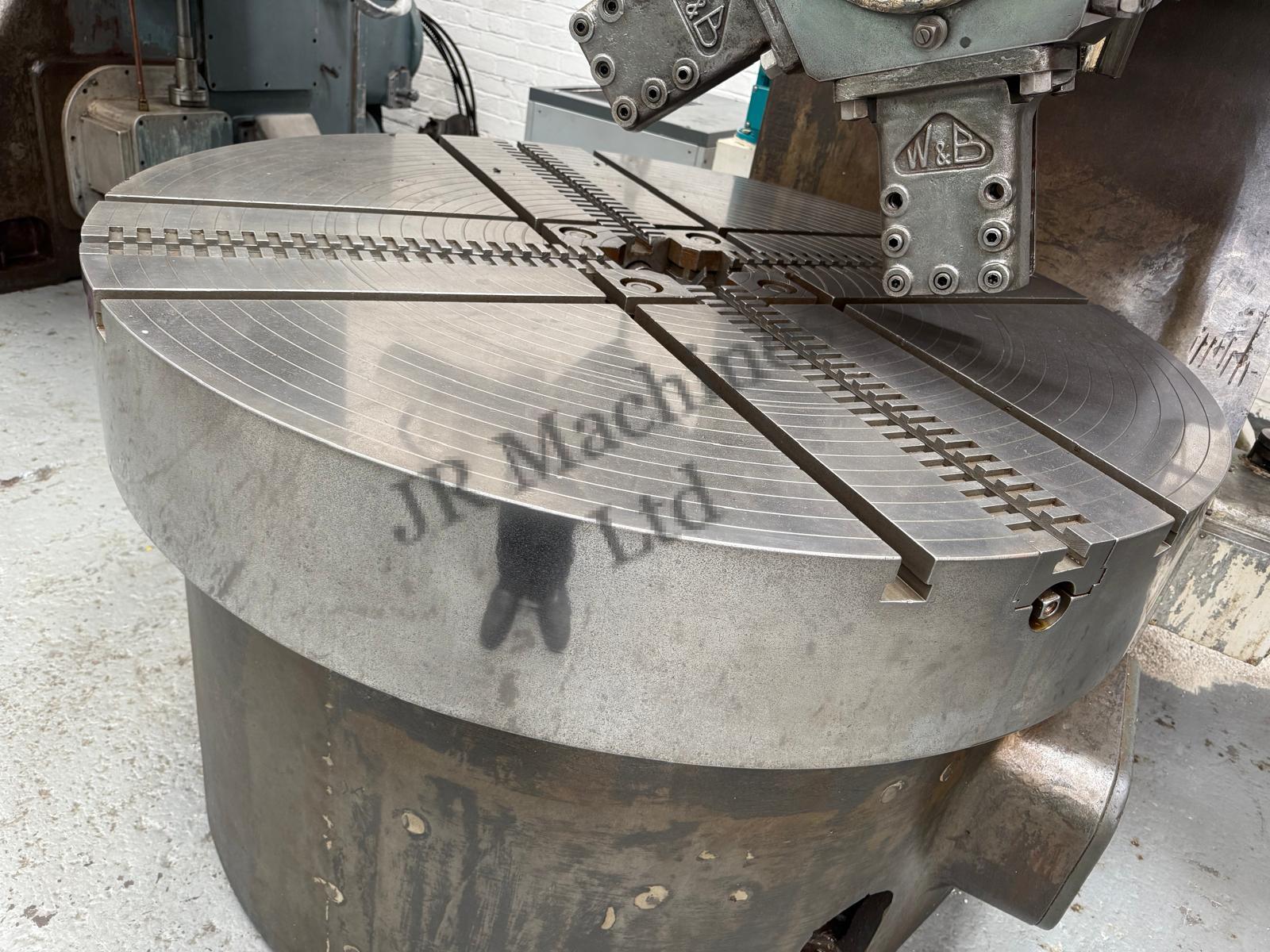

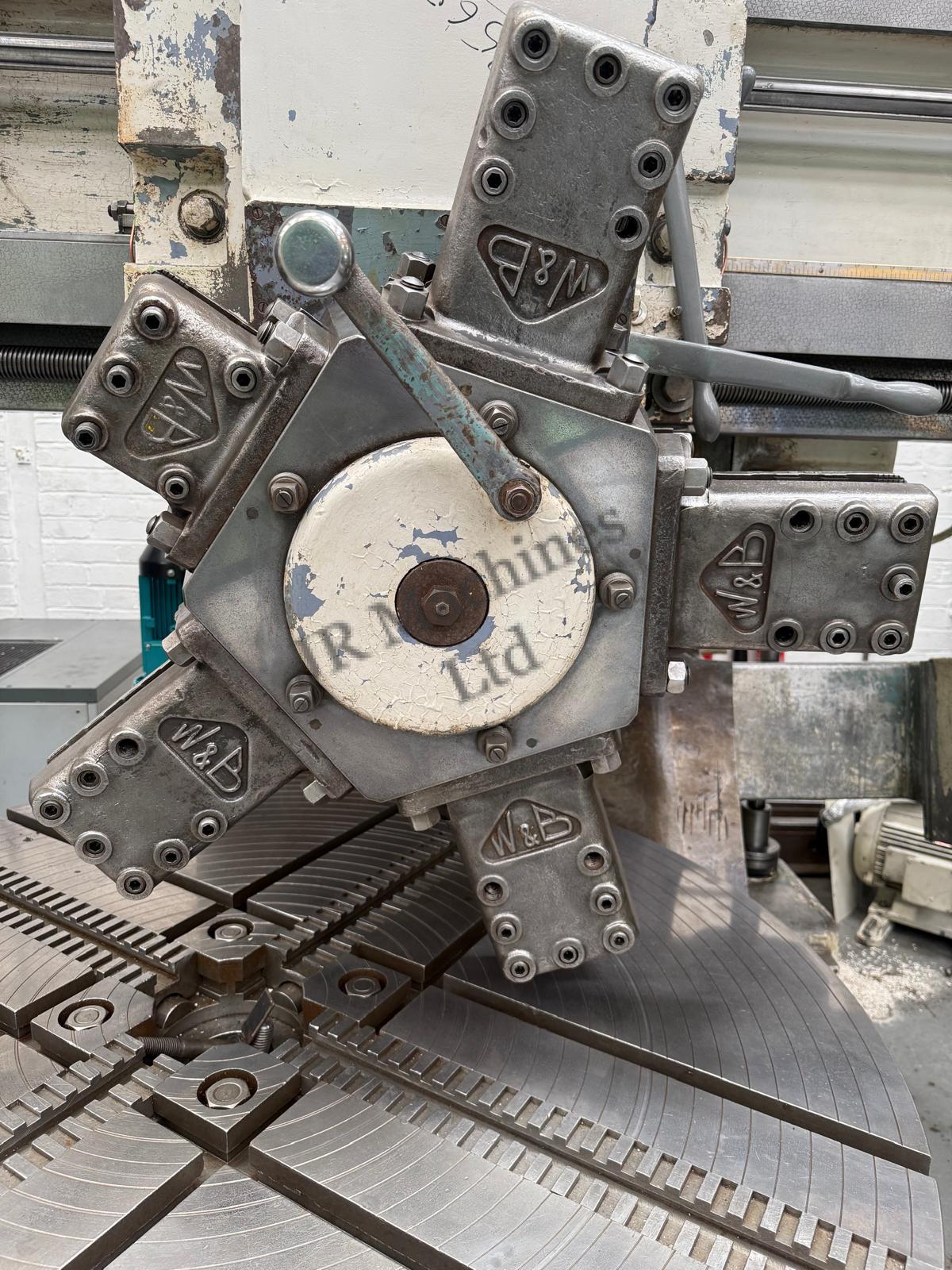

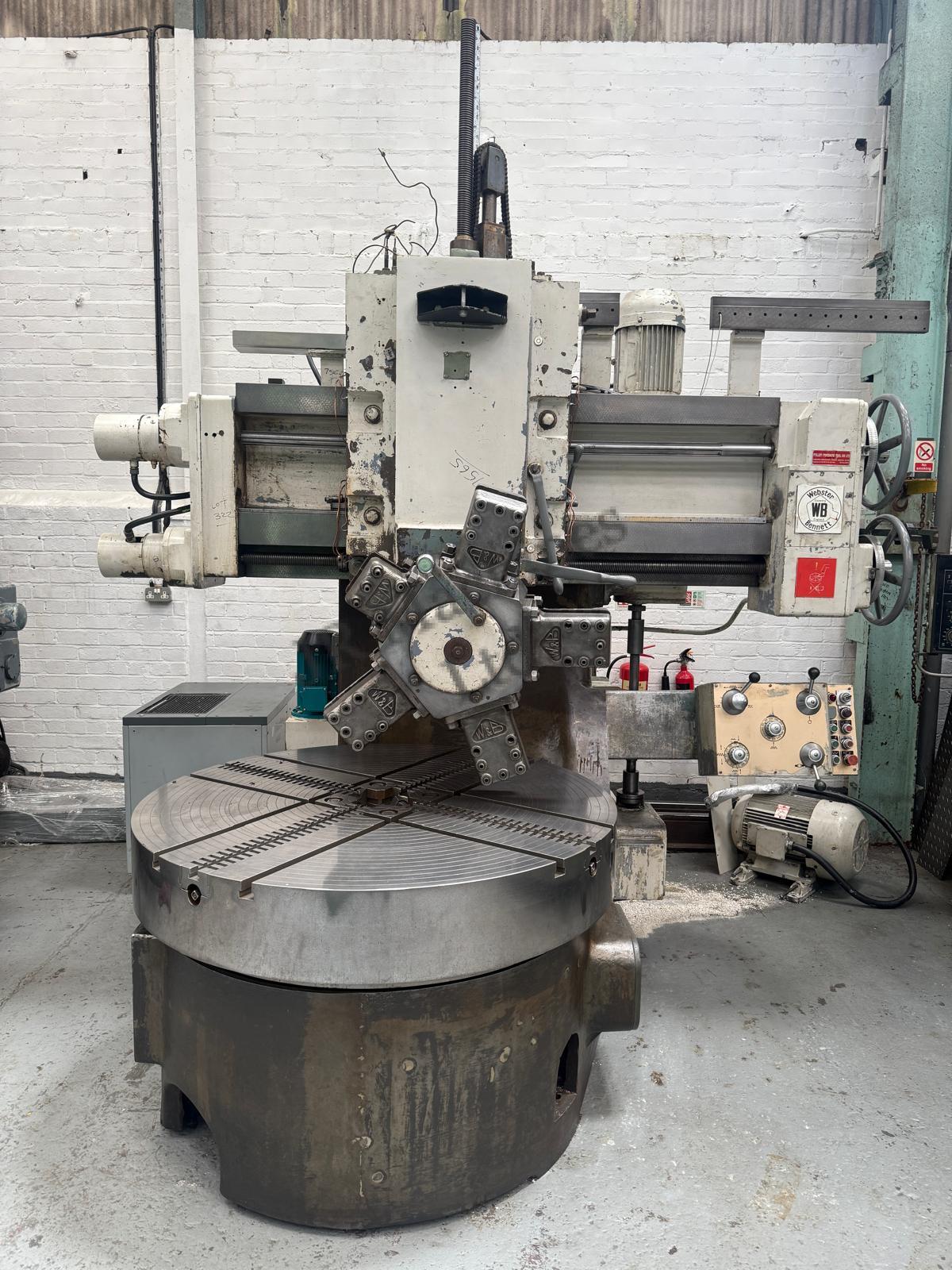

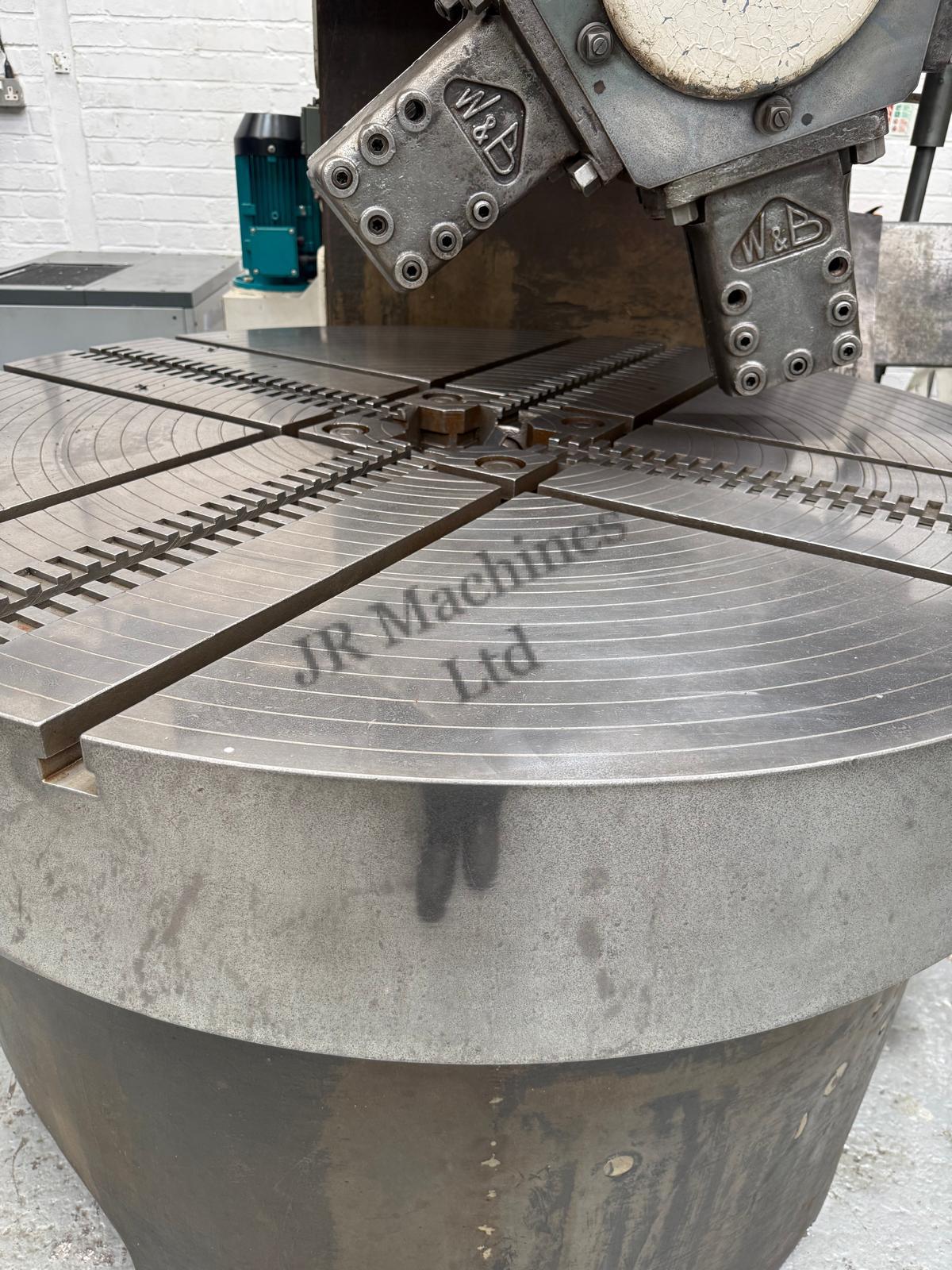

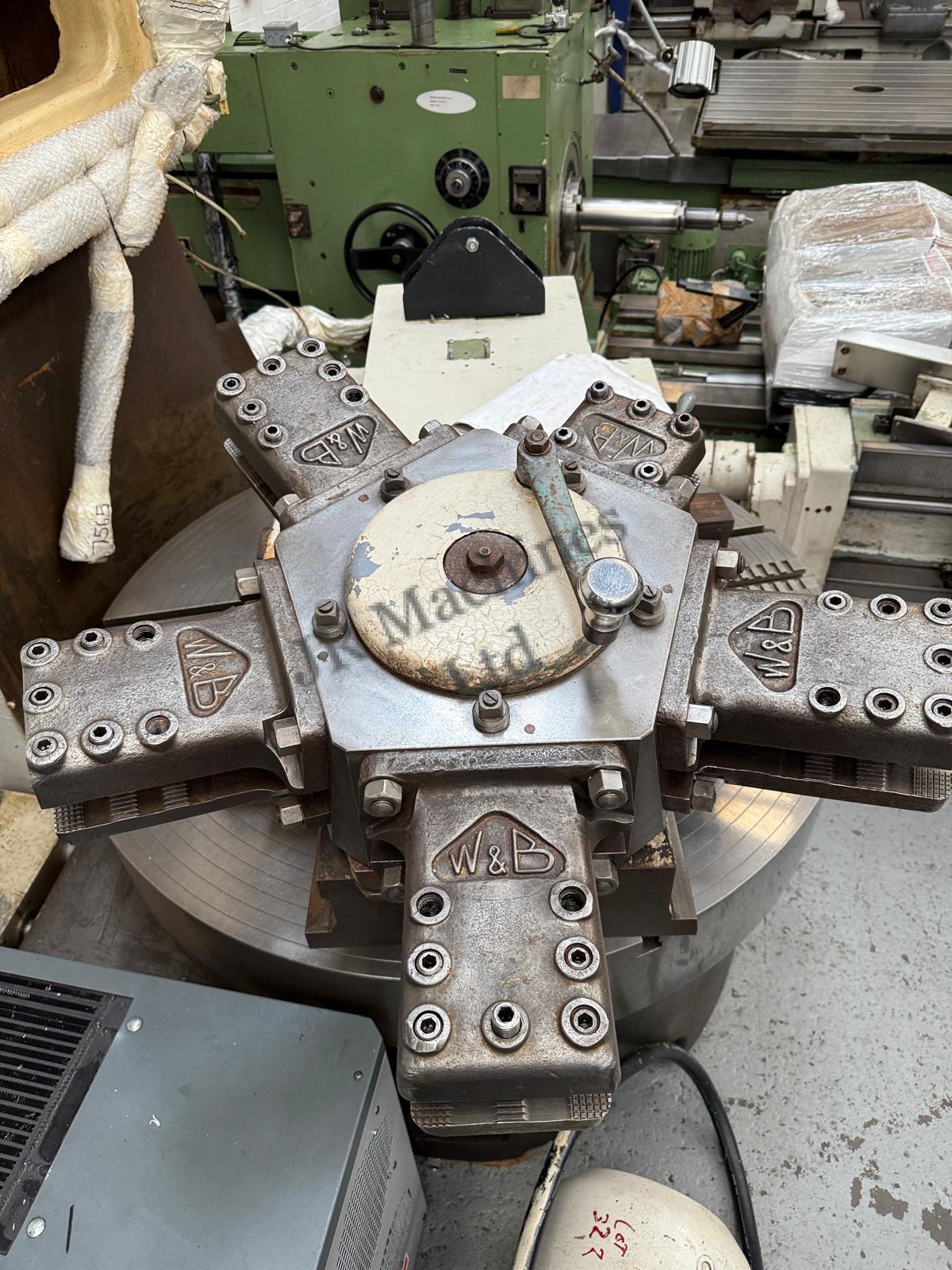

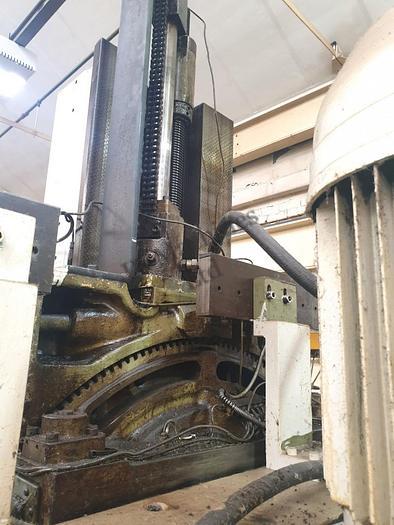

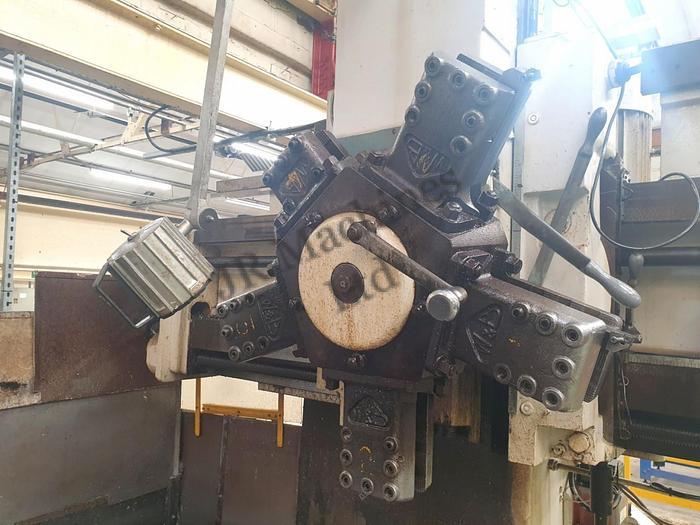

The Webster & Bennett 54” Fixed Rail Vertical Turret Lathe (VTL) is a robust and reliable heavy-duty machine designed for precision machining of large and heavy metal components. Built with a rigid fixed rail structure, the machine offers excellent stability and accuracy during demanding cutting operations. It features a 54-inch rotary table capable of handling substantial workpiece loads, making it ideal for machining large diameter parts. The machine is equipped with a multi-position turret that allows efficient tool changes. The Webster & Bennett 54” VTL is widely used in heavy engineering, oil and gas, energy, rail, and general manufacturing industries, where precision machining of large components such as flanges, valve bodies, rings, and turbine parts is required.
|
Specification |
Details |
| Machine Type | Vertical Turret Lathe (Vertical Boring Machine) |
| Rail Type | Fixed Rail |
| Table Diameter | 54” (1370 mm) |
| Maximum Swing | Approx. 60” – 62” |
| Max Turning Diameter | Approx. 54” – 58” |
| Max Height Under Rail | Approx. 48” – 60” |
| Table Speed Range | Approx. 4.5 – 100 RPM |

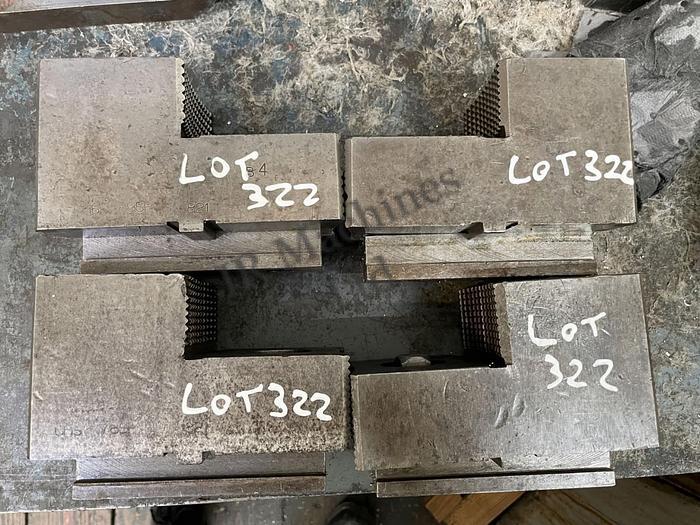

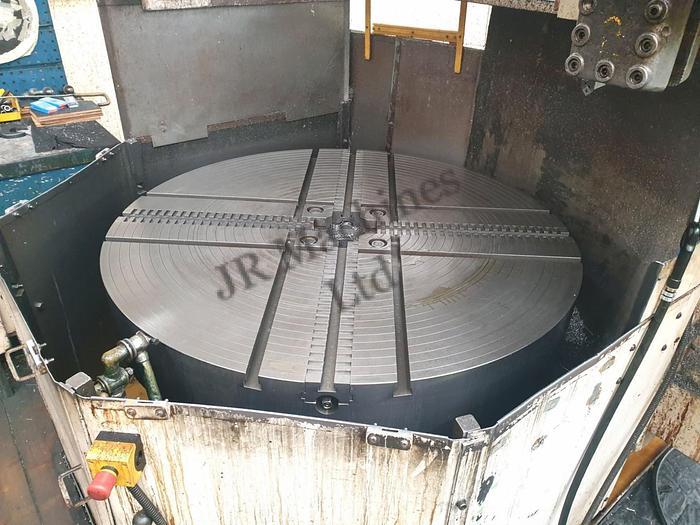

| Table Type | 4-Jaw Independent Chuck or T-Slot Faceplate |
| Ram Vertical Stroke | Approx. 900 – 1150 mm |

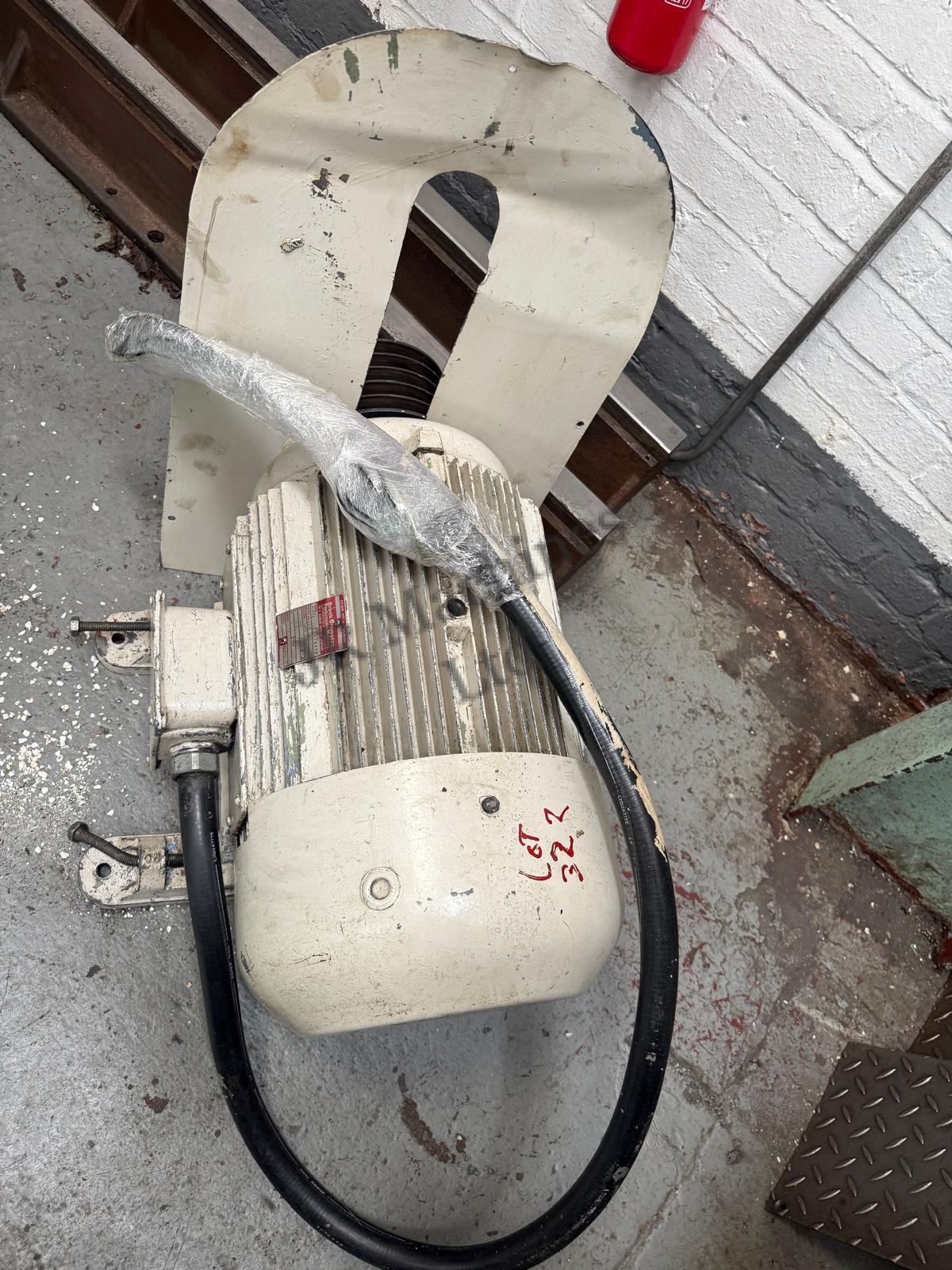

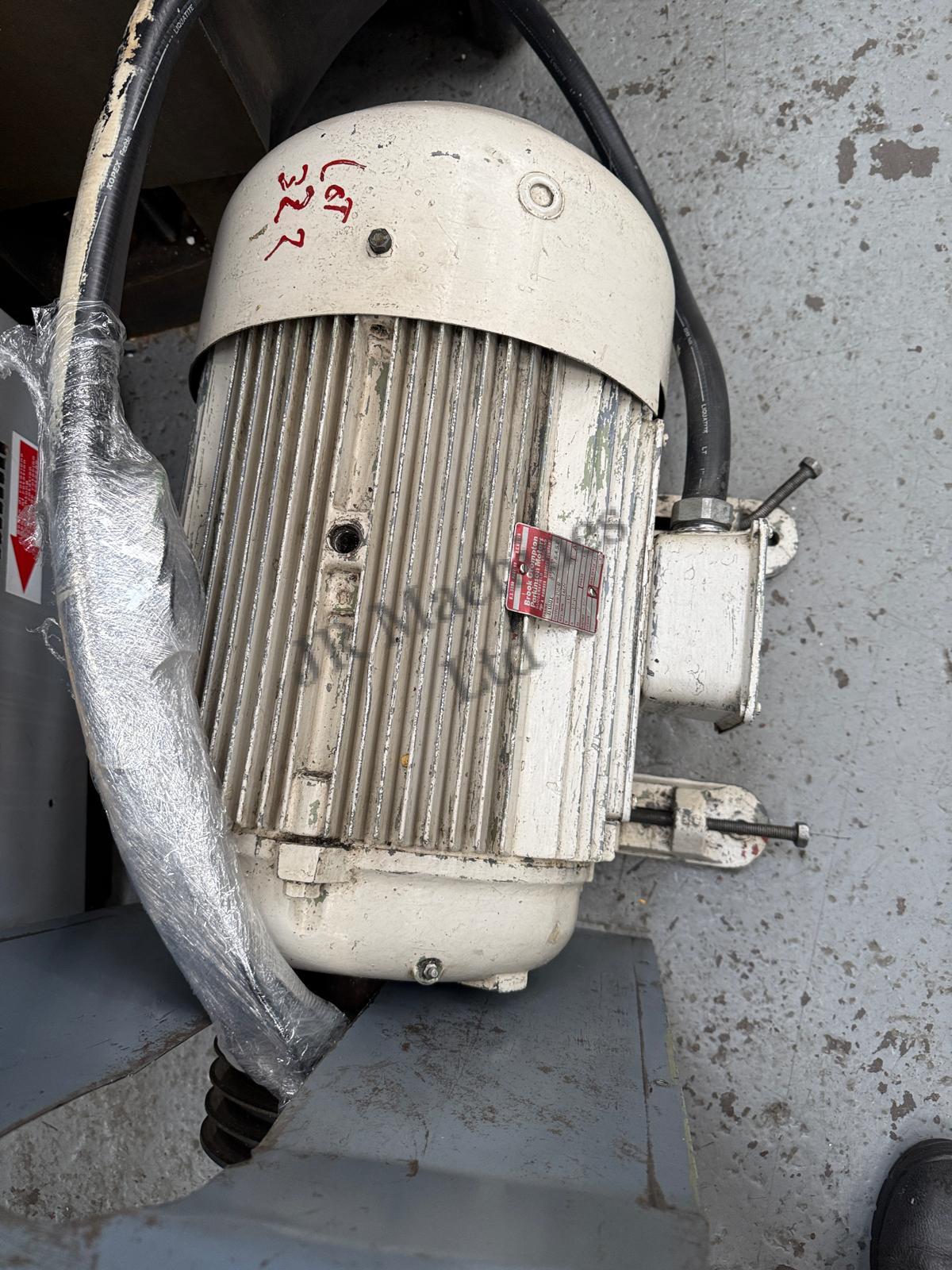

| Main Motor Power | Approx. 30 – 40 HP |
| Power Supply | 3-Phase Industrial Supply |
| Machine Height | Approx. 4 – 4.5 m |
