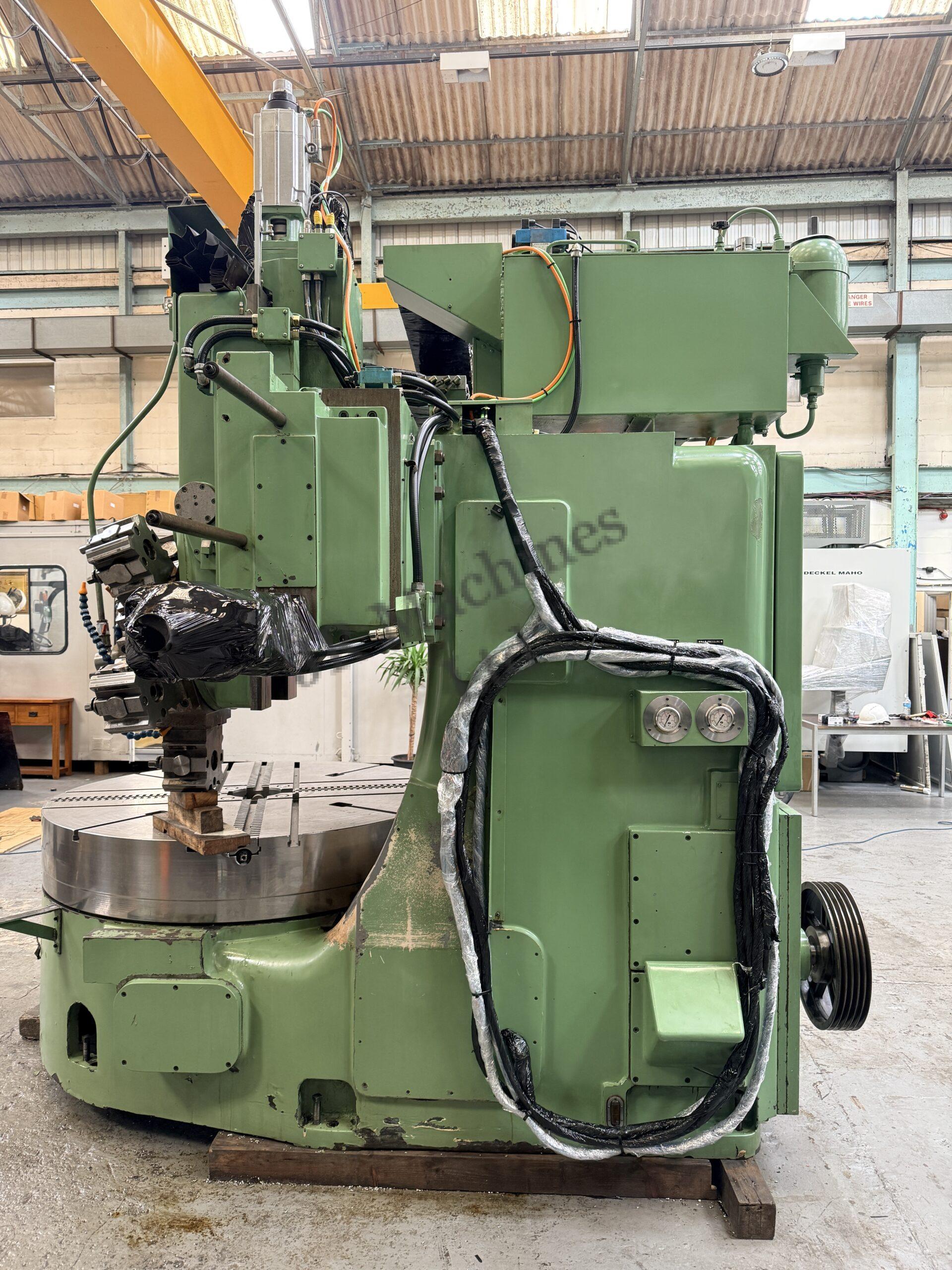

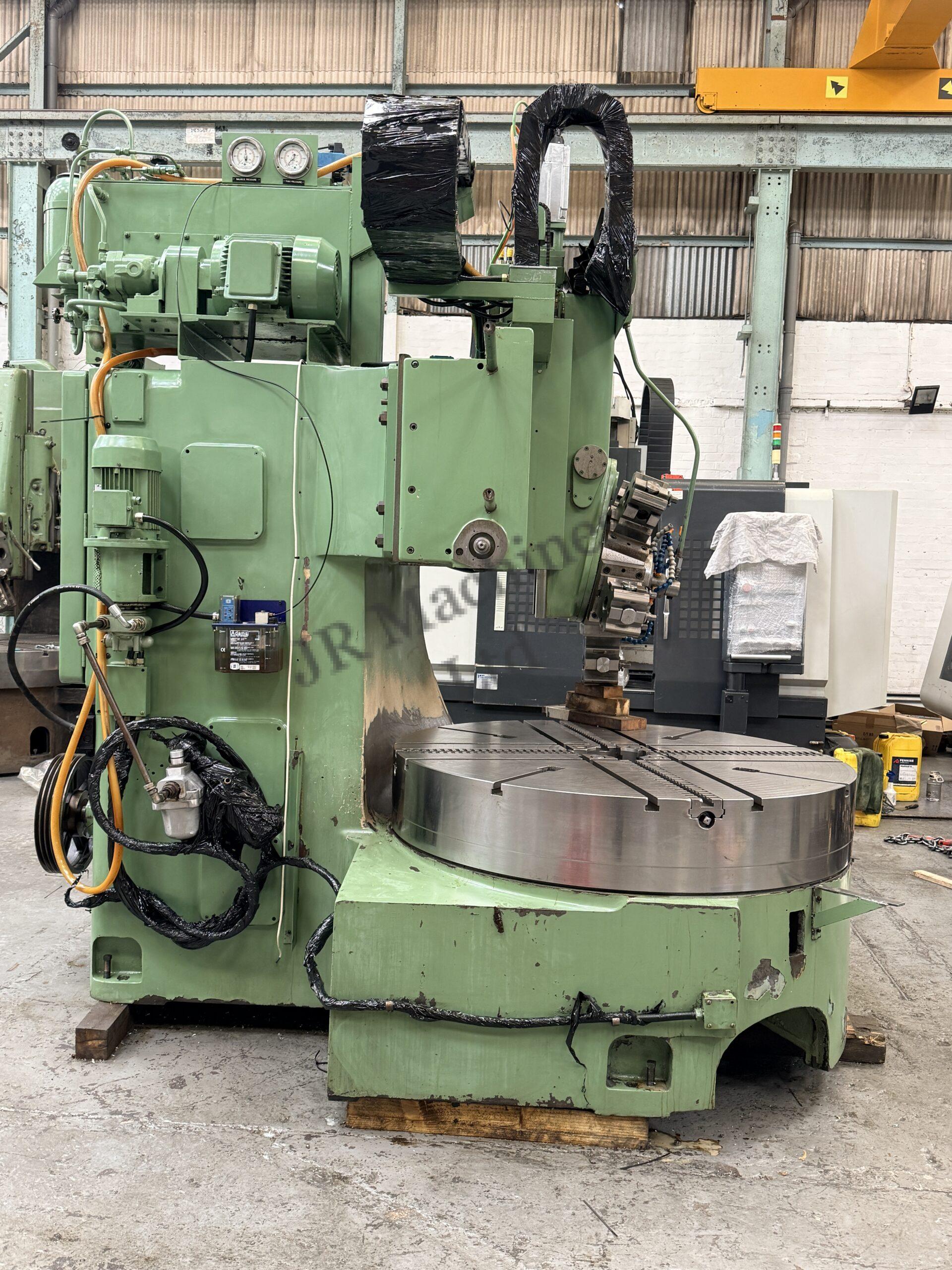

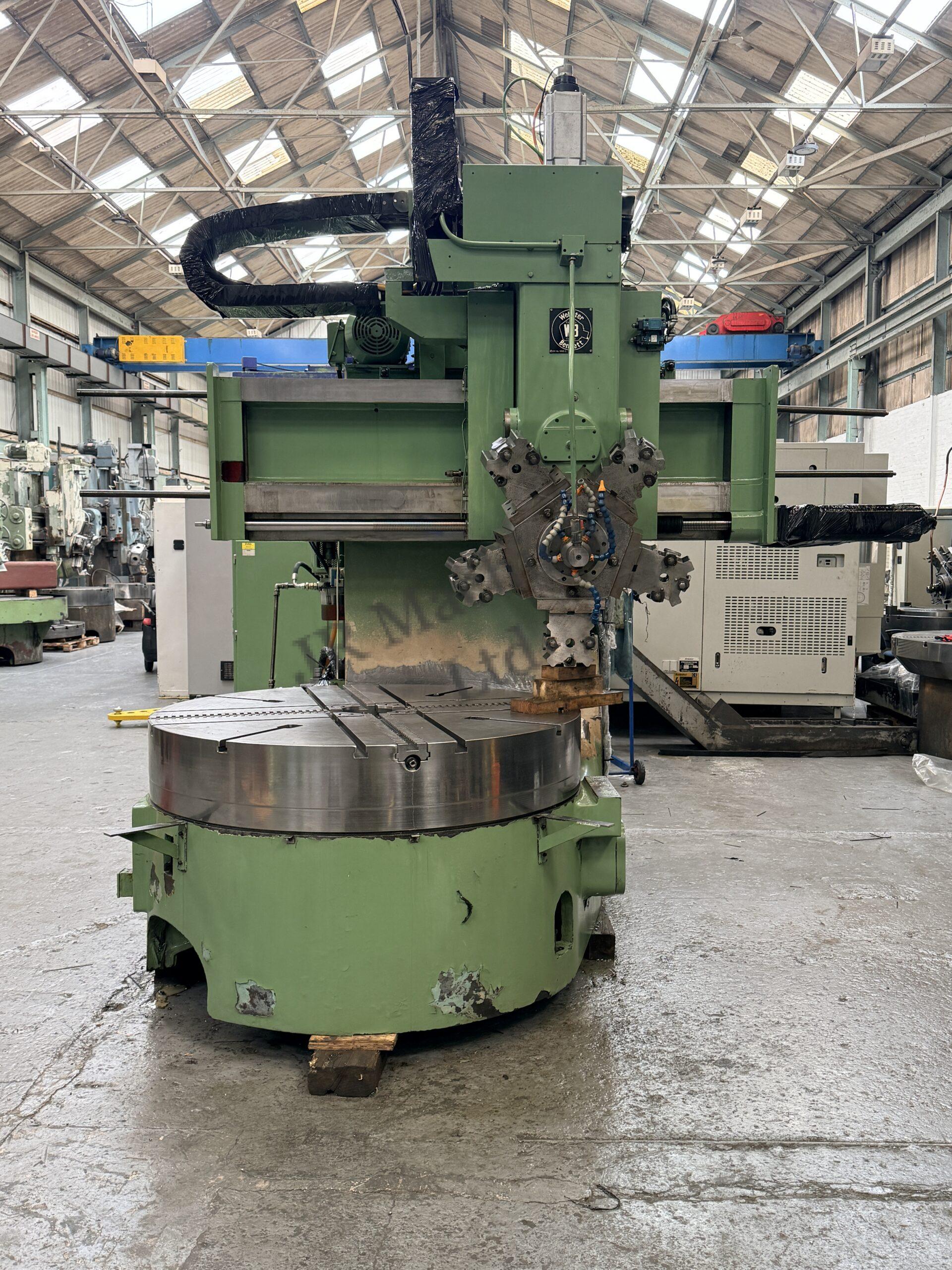

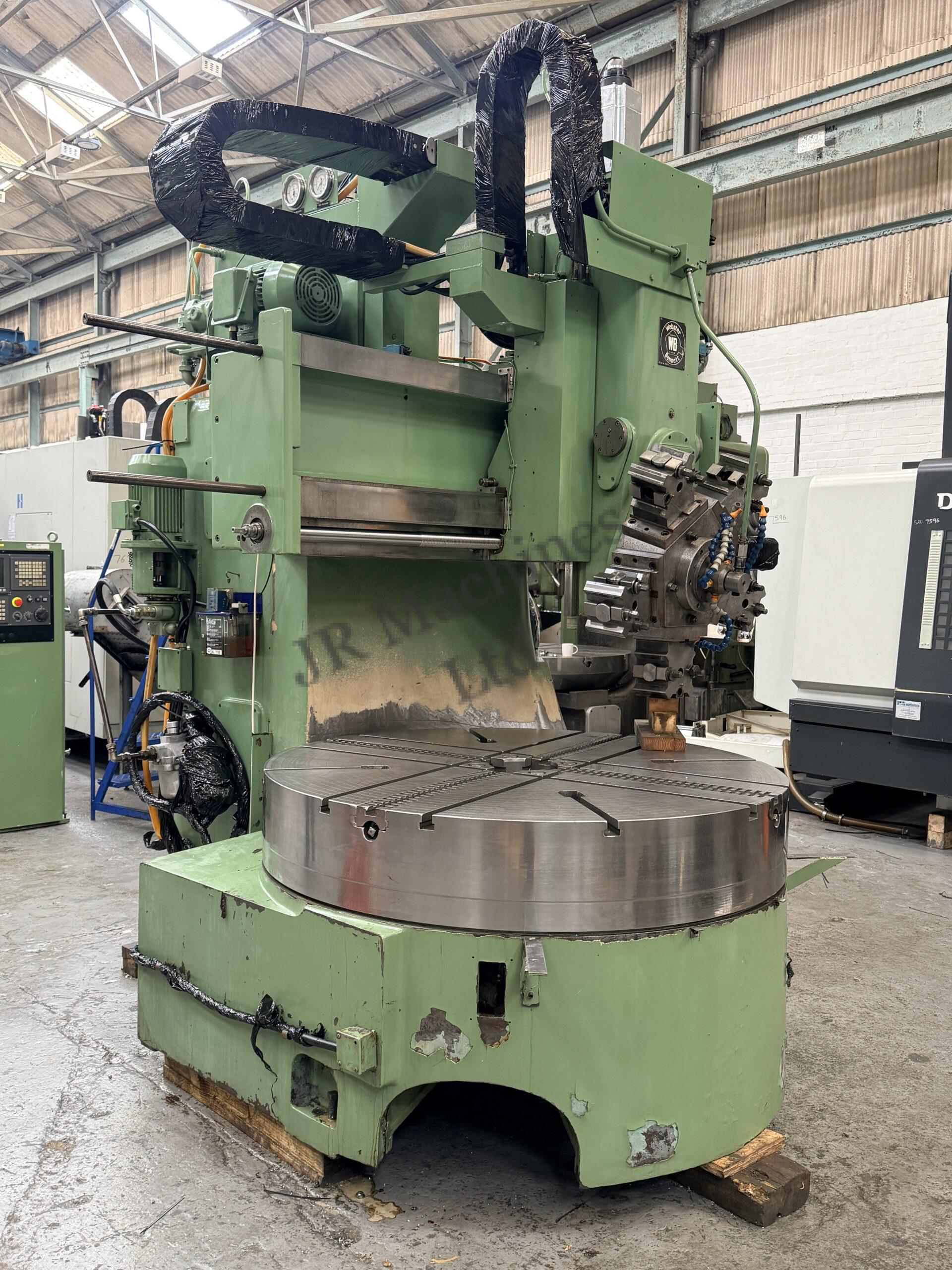

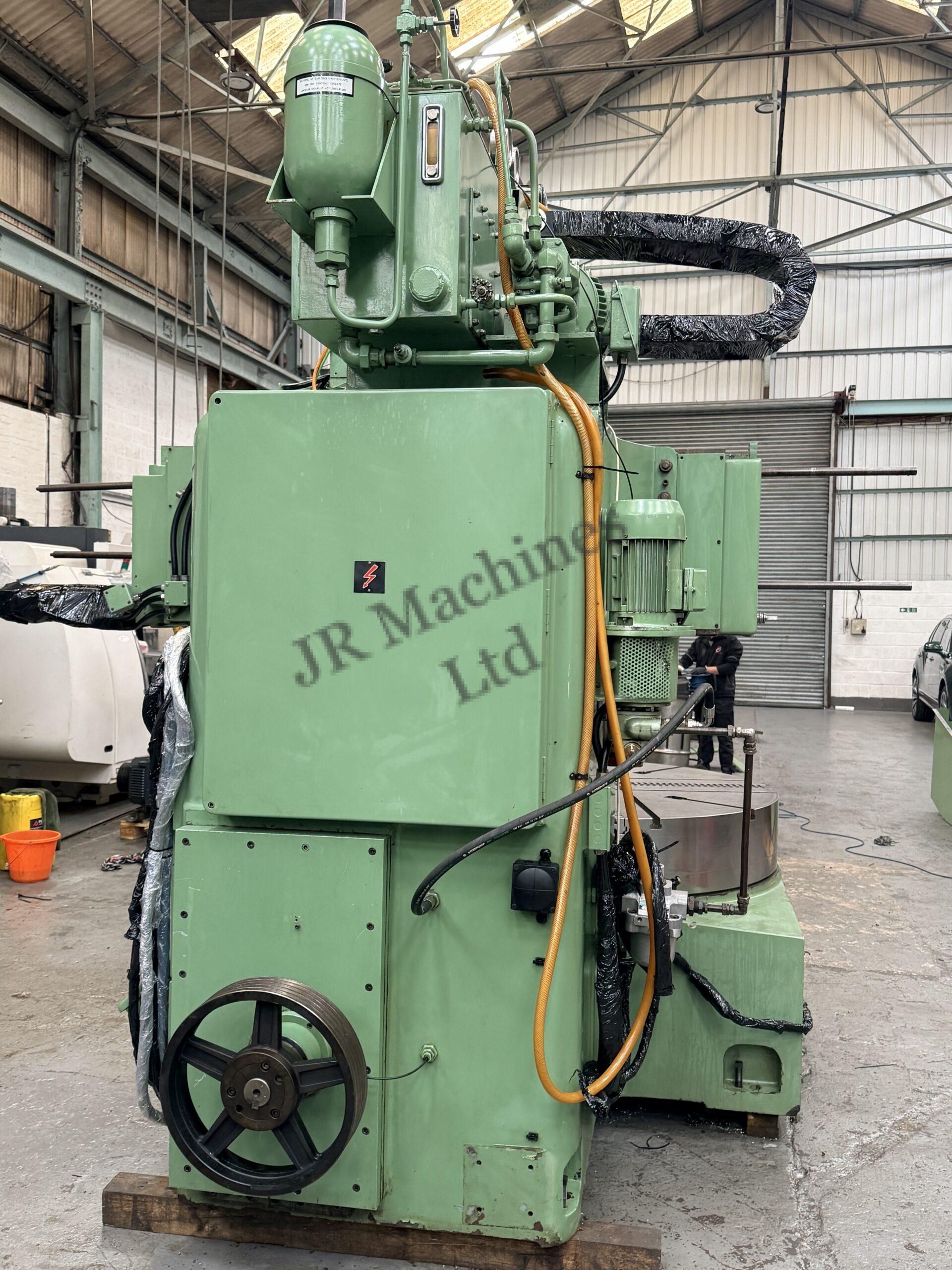

The Webster & Bennett 60” CNC Vertical Turret Lathe (VTL) is a heavy-duty vertical turning and boring machine designed for machining large diameter, high-weight components with high rigidity and precision.The vertical configuration allows heavy workpieces to sit securely on the rotating table while the turret performs turning, boring, facing, grooving, and drilling operations.
| Specification | Details |
| Machine Type | CNC Vertical Turret Lathe (VTL) |
| Manufacturer | Webster & Bennett |
| Table Diameter | 60″ (1524 mm) |
| Maximum Swing | 64″ – 67″ |
| Maximum Turning Height | 24″ – 40″ |
| Table Speed Range | 6.7 – 150 RPM |
| Maximum Spindle Speed | Up to 320 RPM |
| Turret Travel | Approx. 26″ |
| Cross Rail Travel | Approx. 40″ |
| Table Load Capacity | Up to 11,600 lbs (5,260 kg) |
| Main Motor Power | 20 – 40 HP |
| Turret Type | 5-position power turret |

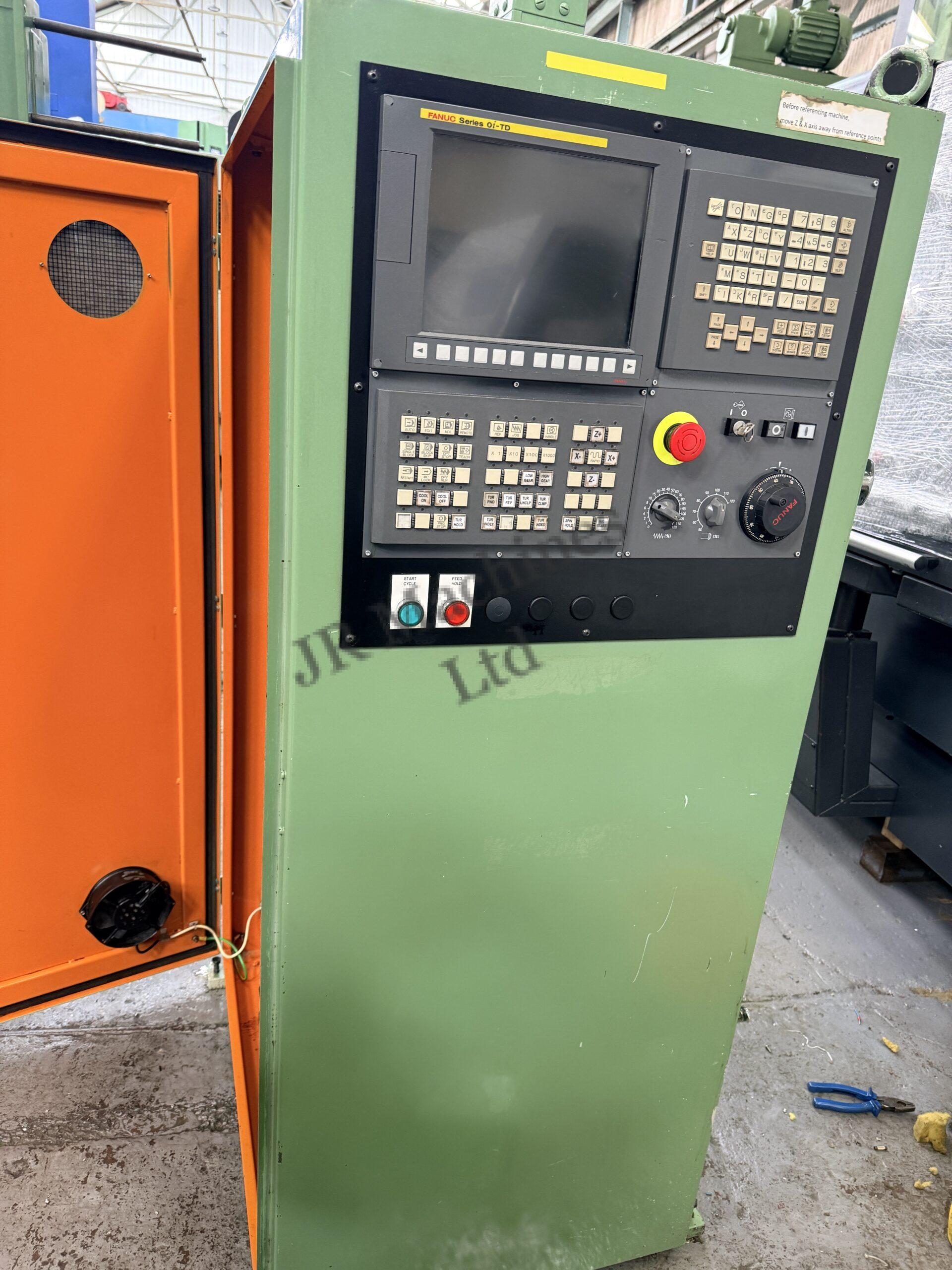

| Control System | Fanuc Oi-TD |
| Axis Configuration | 2-Axis CNC |
| Machine Weight | Approx. 16,000 – 36,000 lbs |
